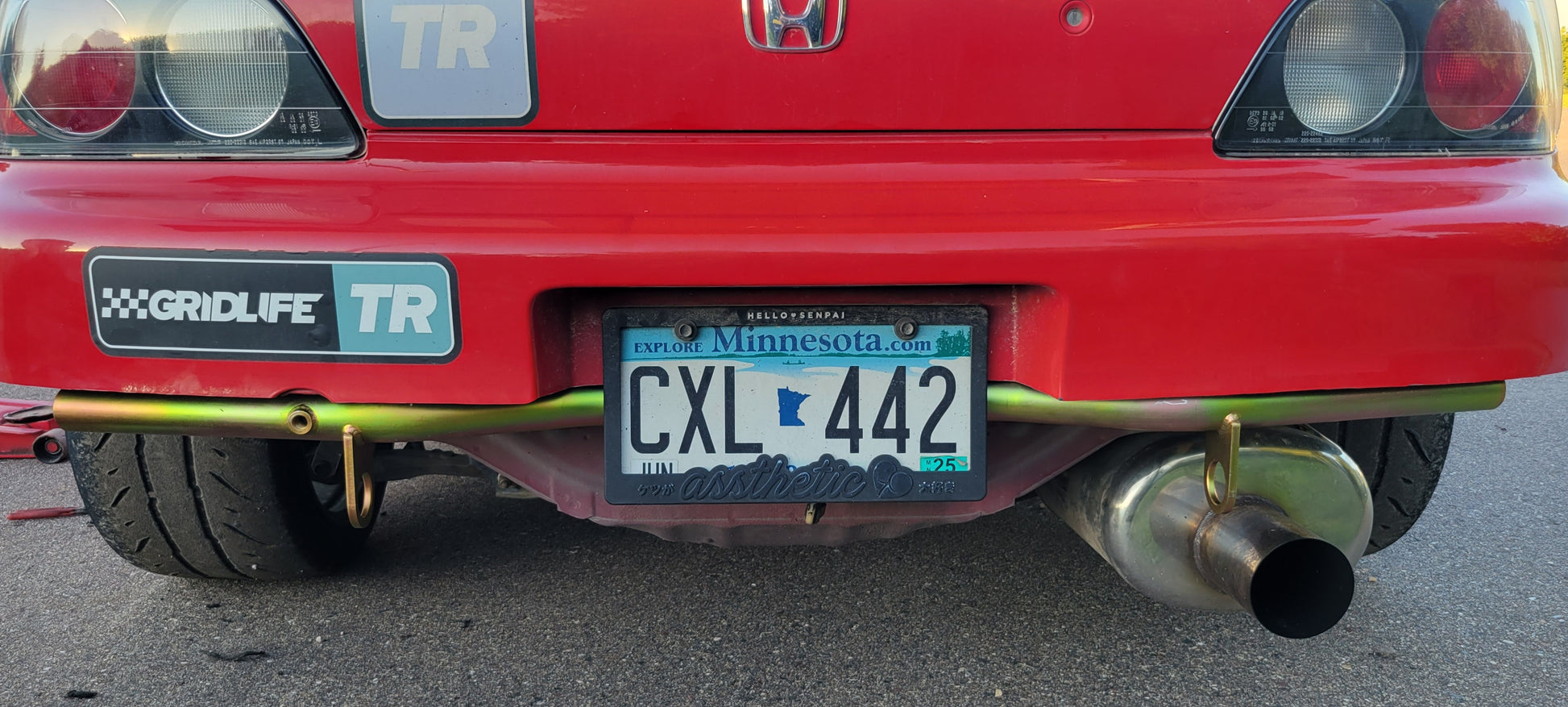

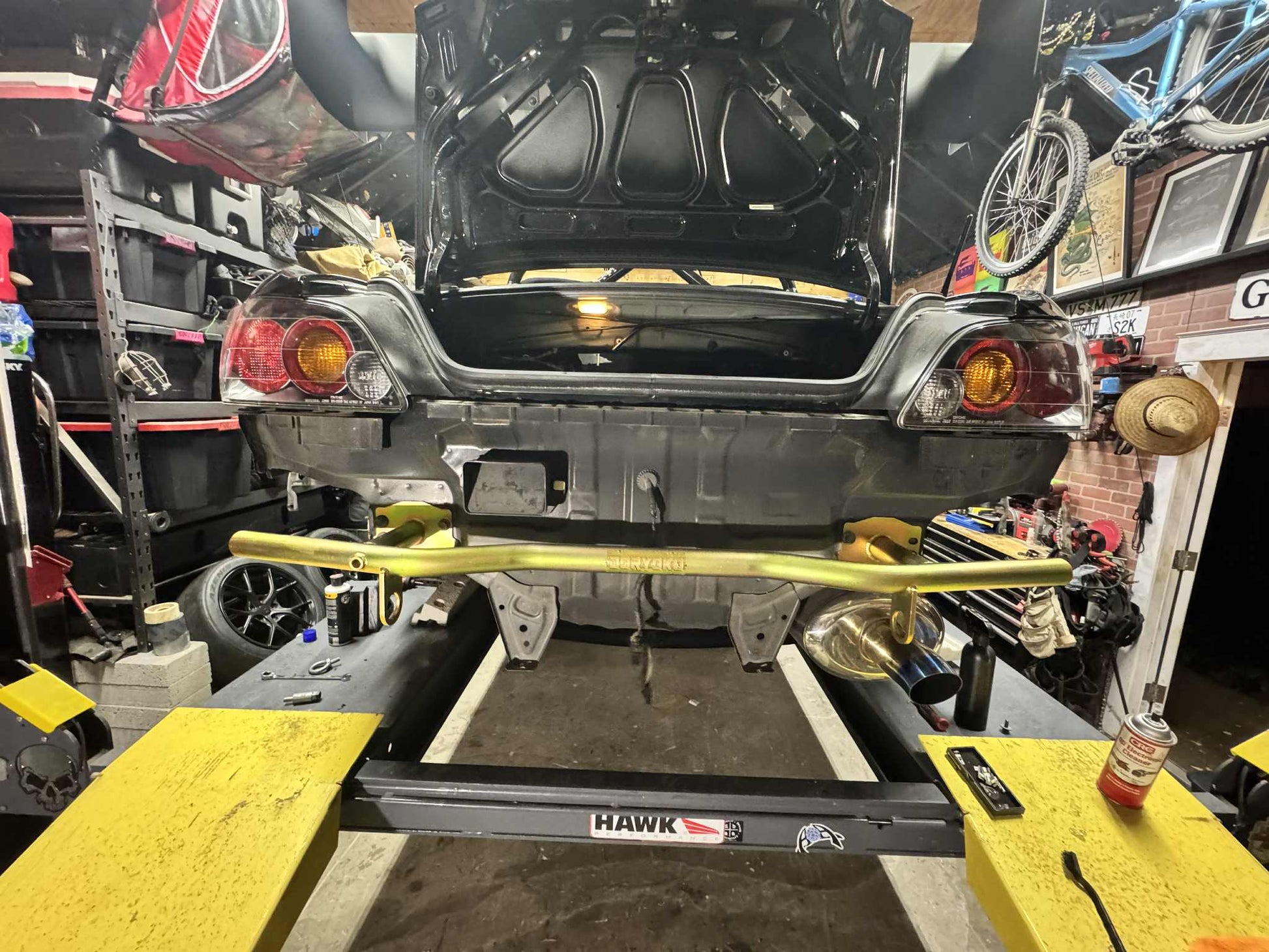

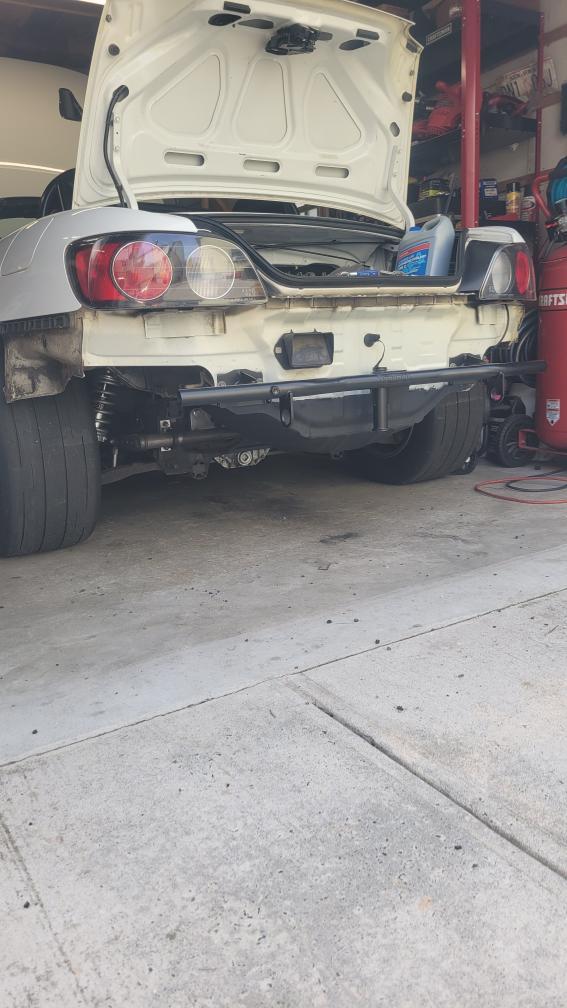

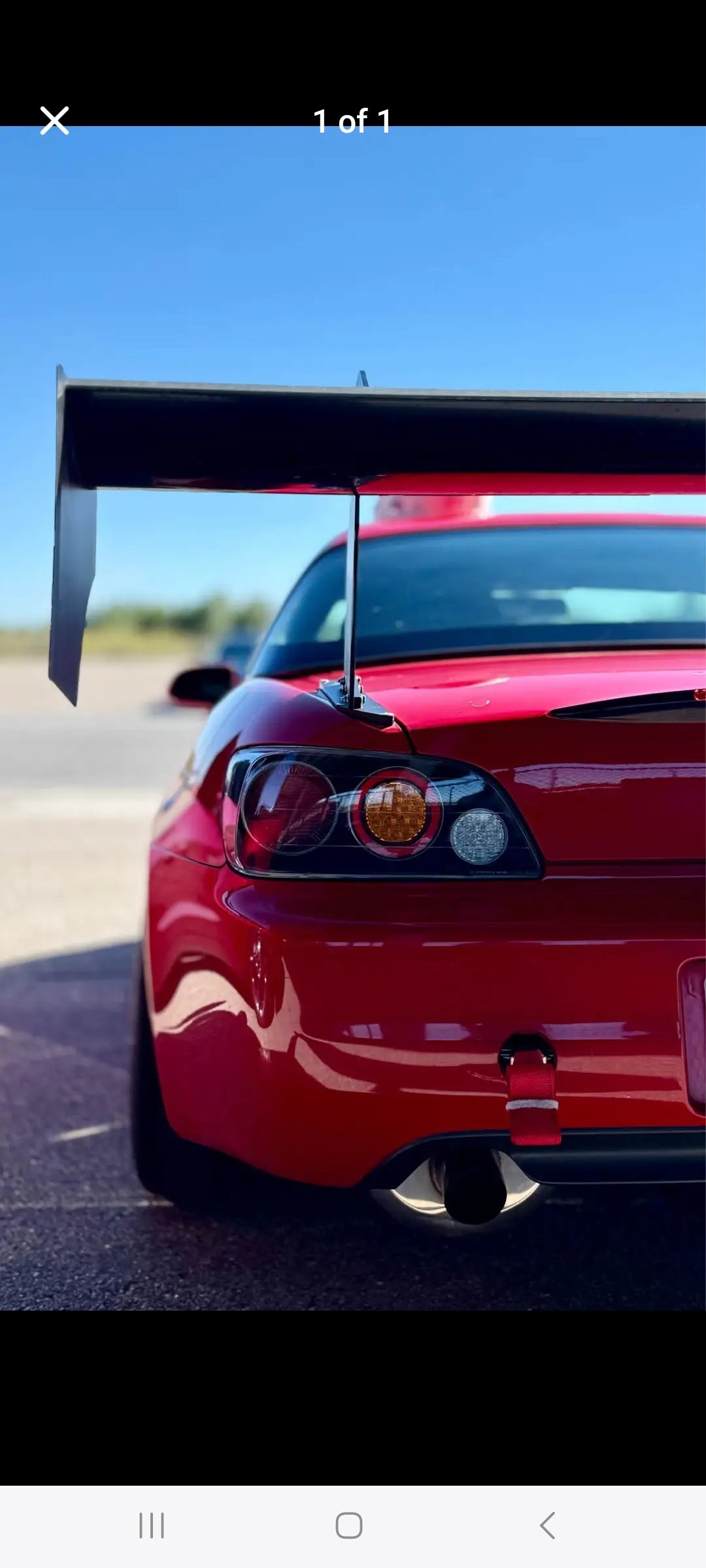

S2000 Rear Bar

Doryoku Track bar’s philosophy of use & design

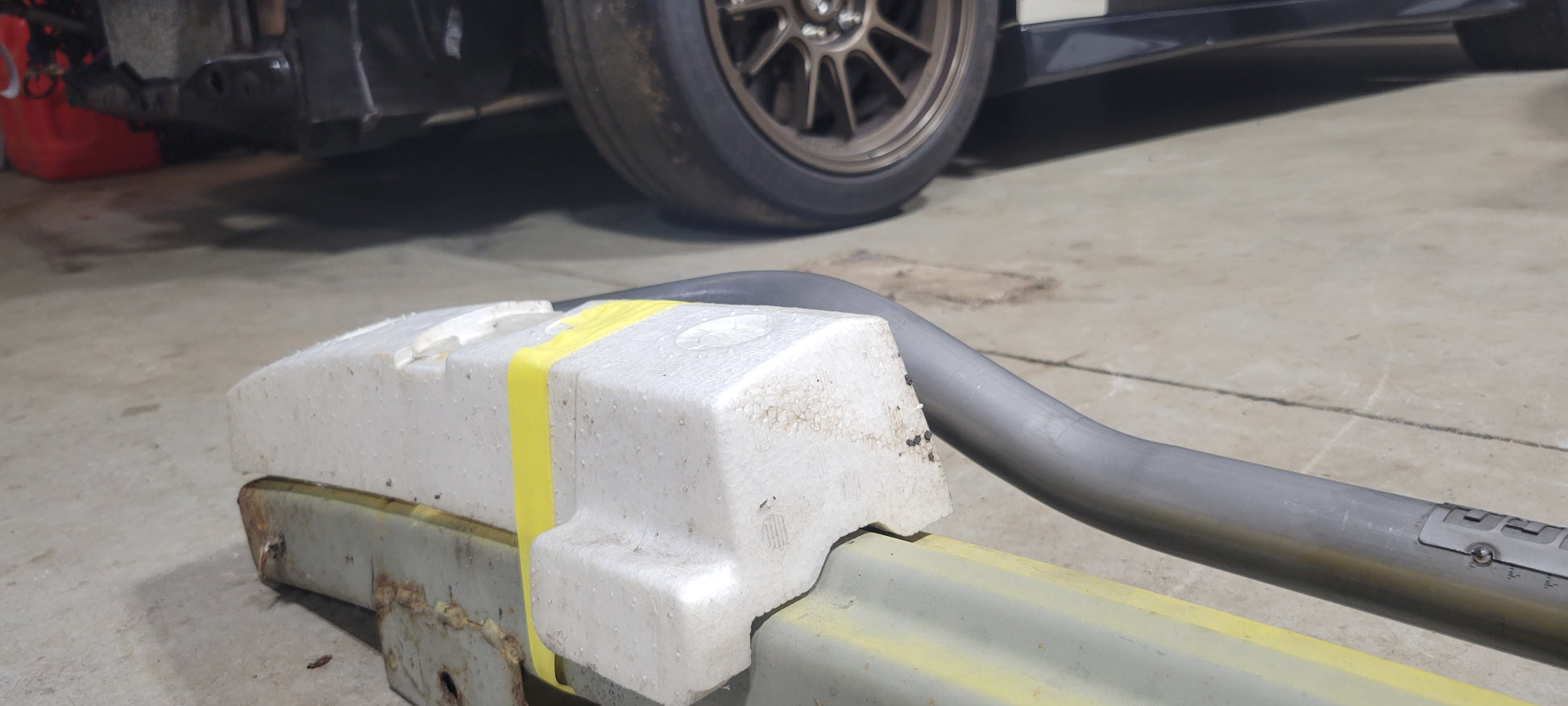

We designed this to be the best value bar on the market when it comes to weight, construction, design, add on options, price and total value. All bars are designed by scanning the OEM bumper bar/foam/support so that we can ensure the best fit and follow the existing shape. The track bar is intended to provide many performance benefits for track car applications (drag /road race) while allowing the user to customize the bar as they grow in the sport.

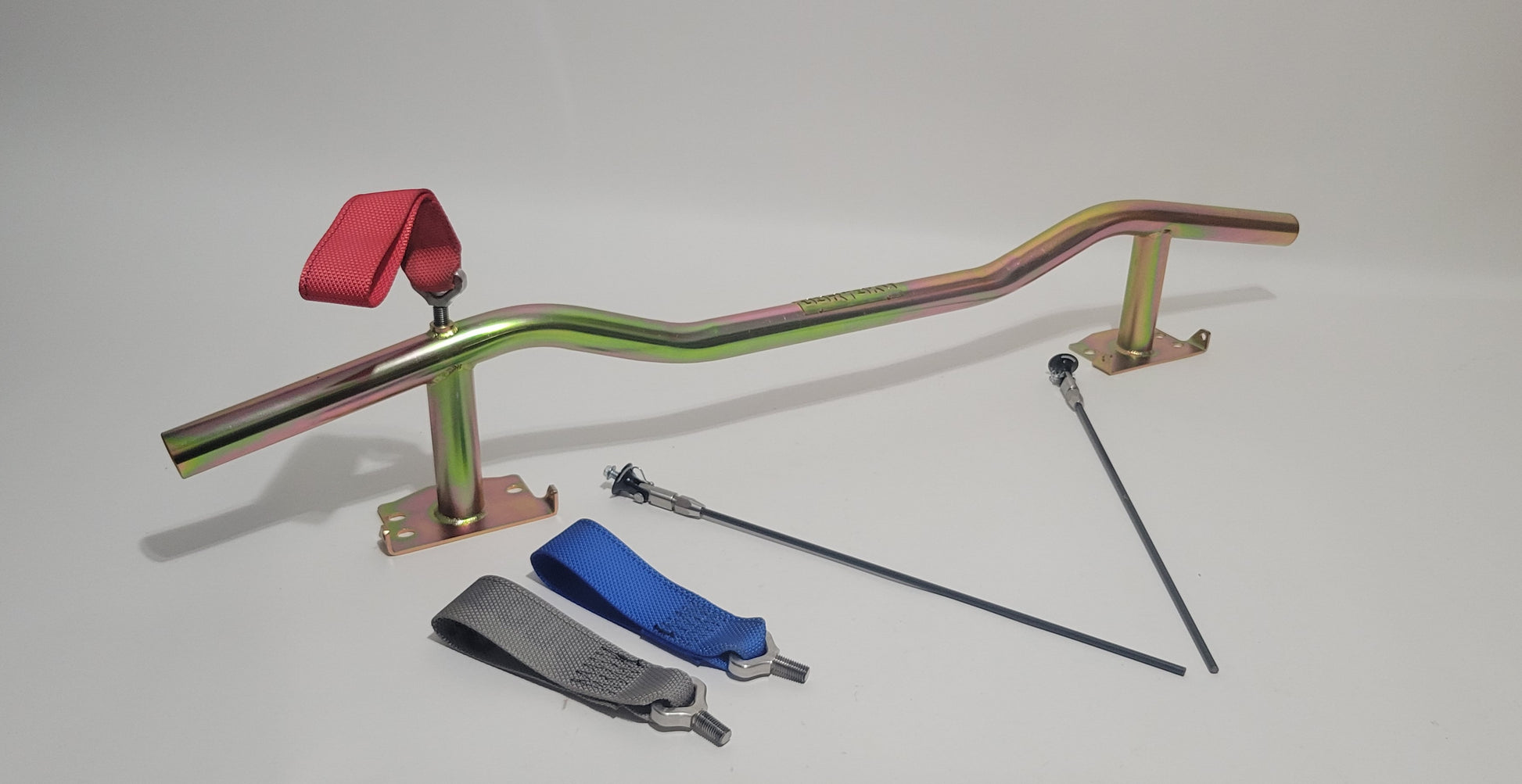

1999 - 2008 Honda S2000 rear bumper track bar specifications

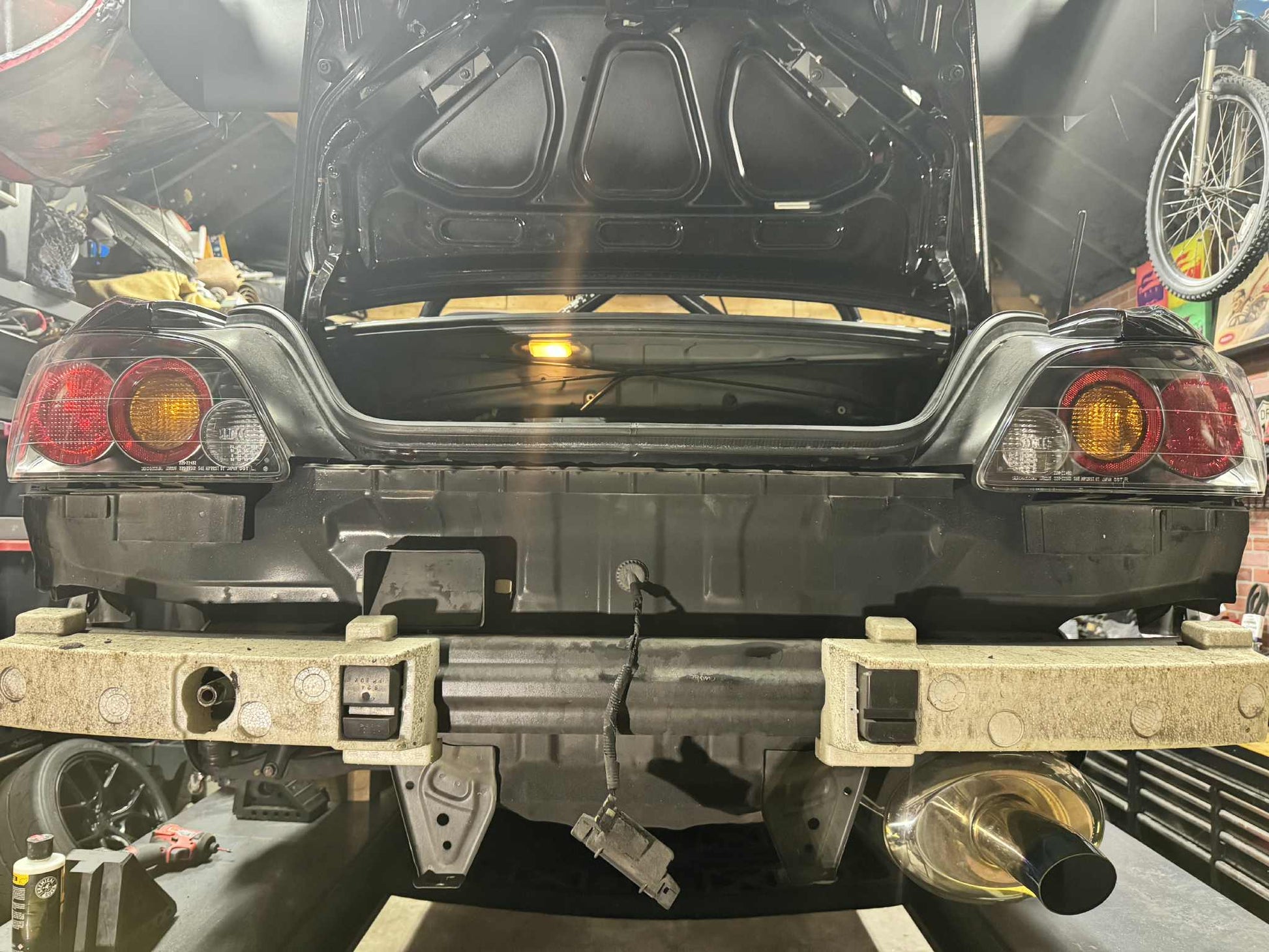

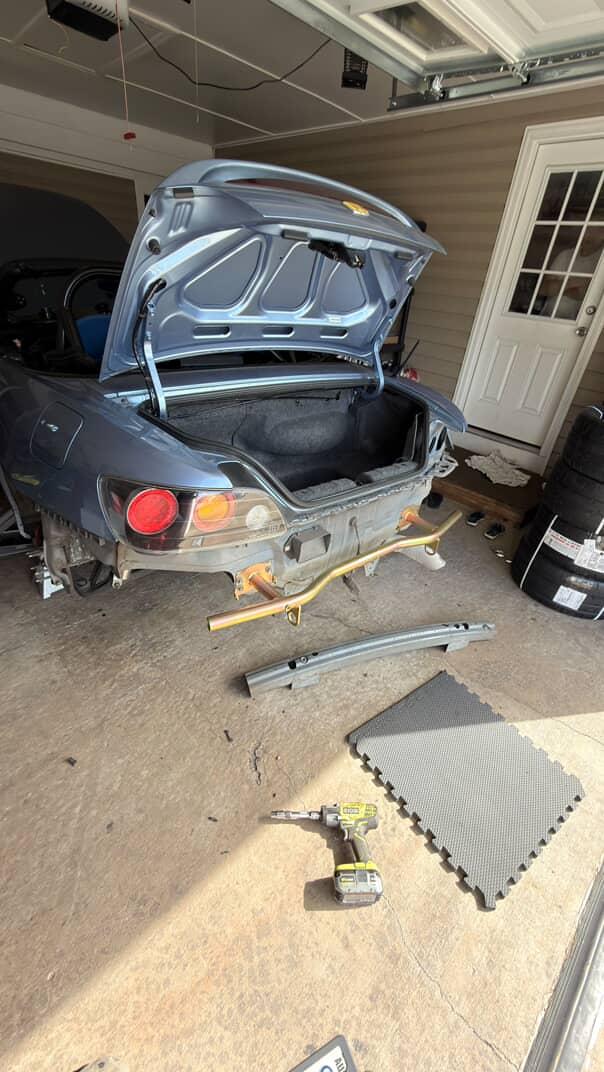

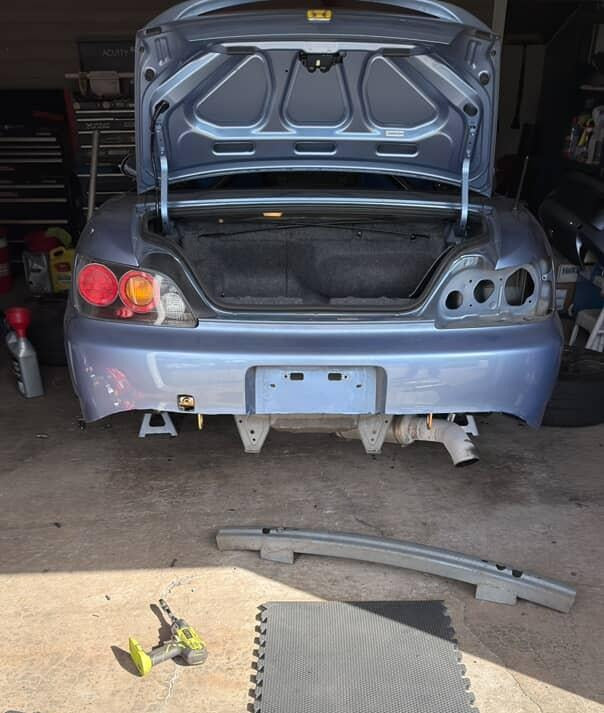

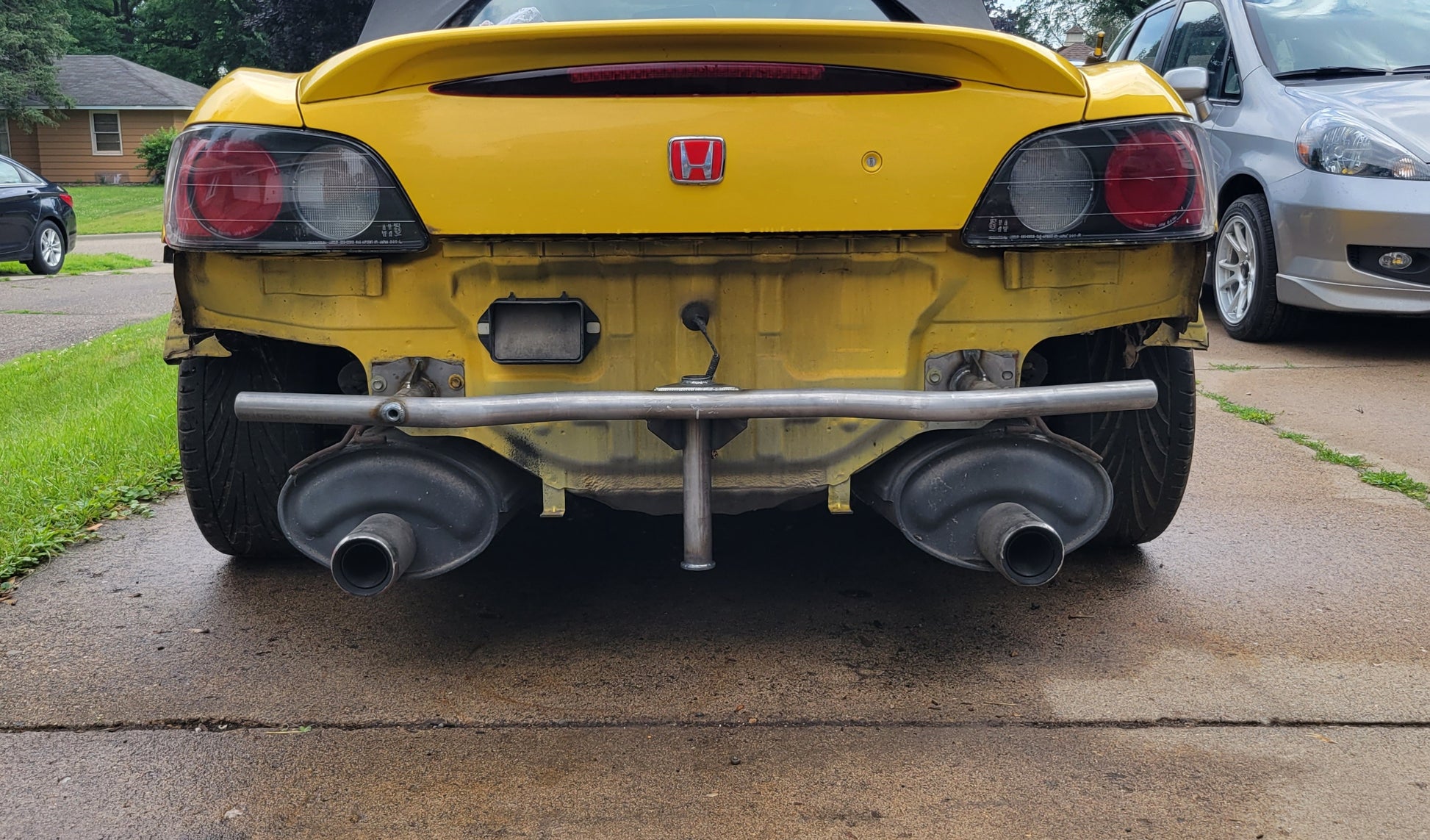

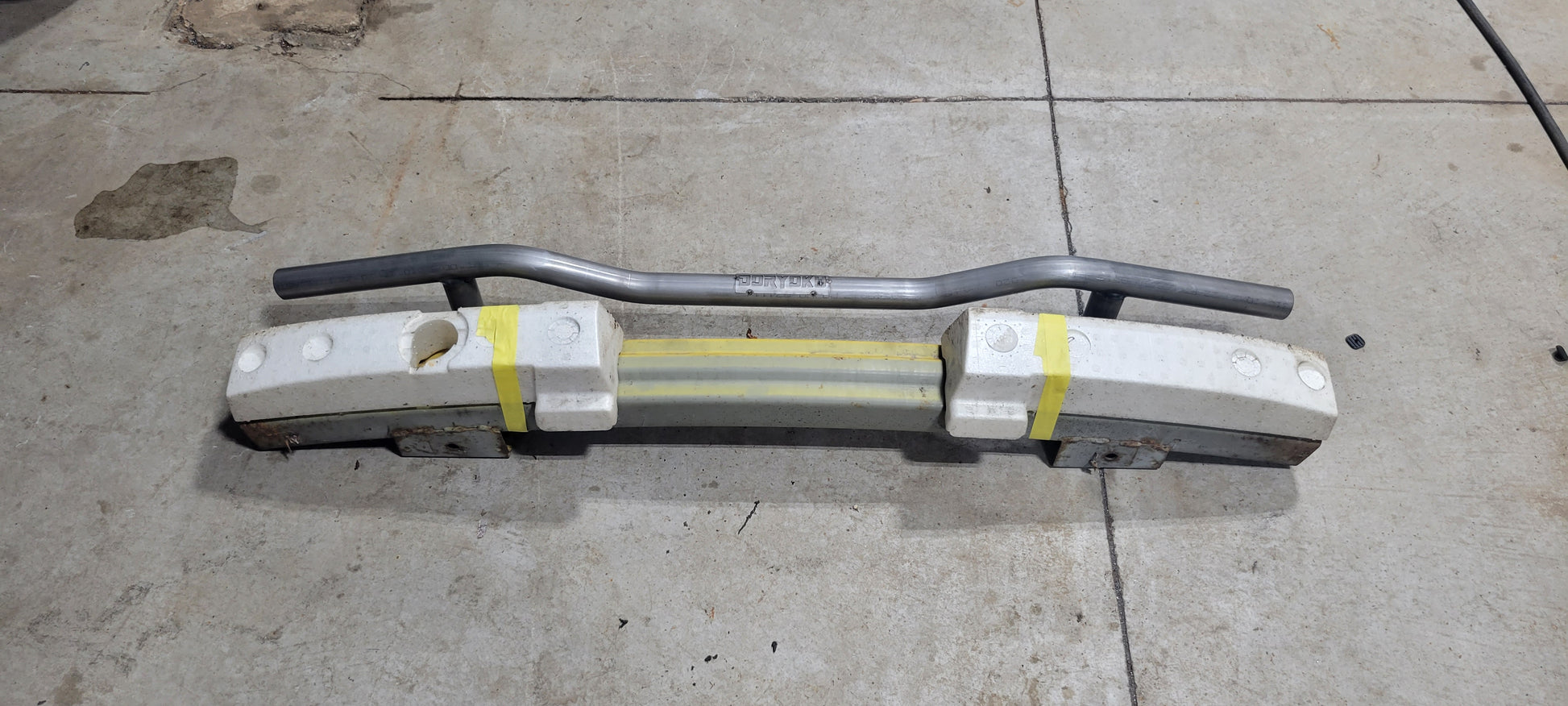

☆ Direct replacement of OEM beam & foam

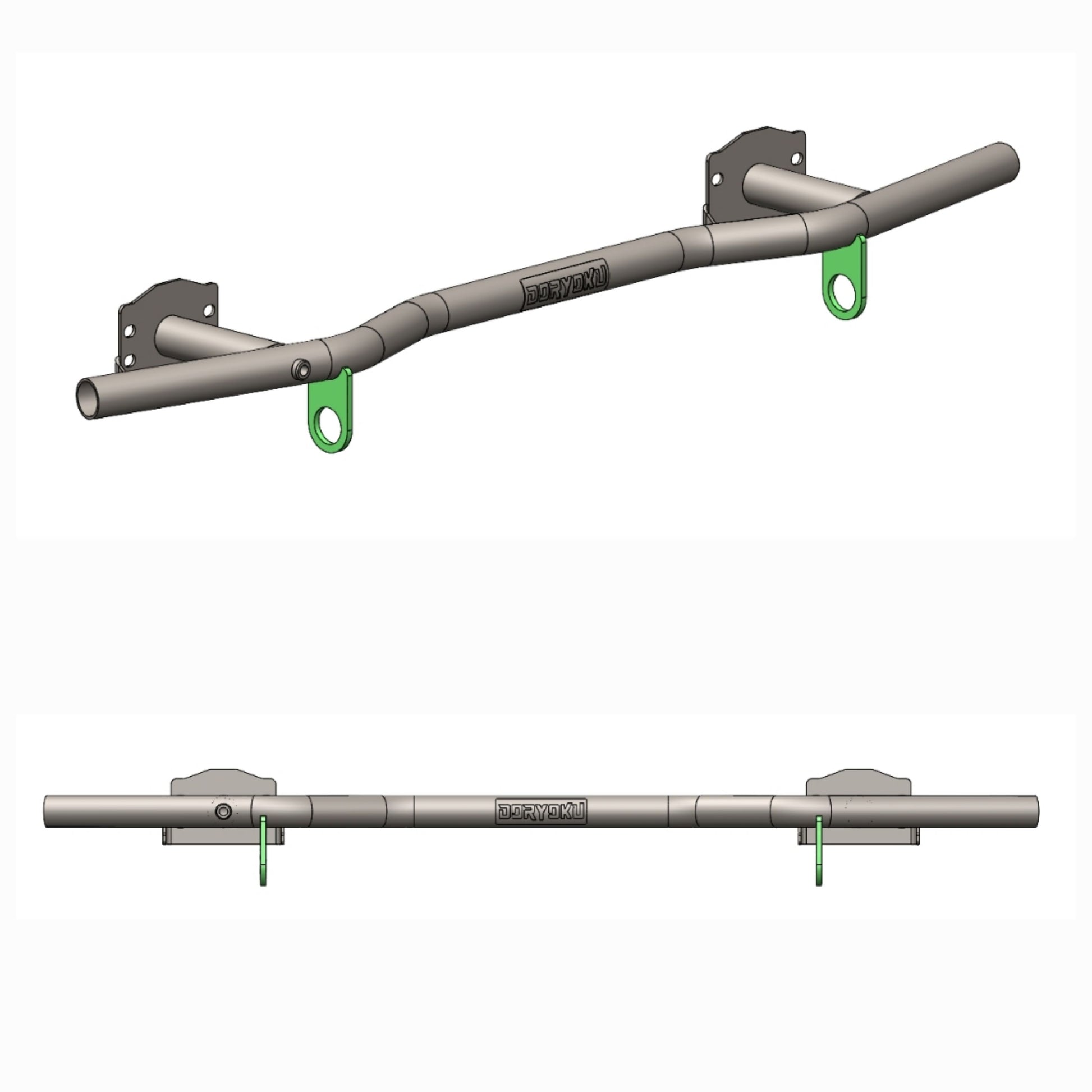

☆ Utilize 3D modeling design for tight fit behind bumper cover

☆ 35% (4.6lbs) weight savings over stock bar (13 vs 8.4)

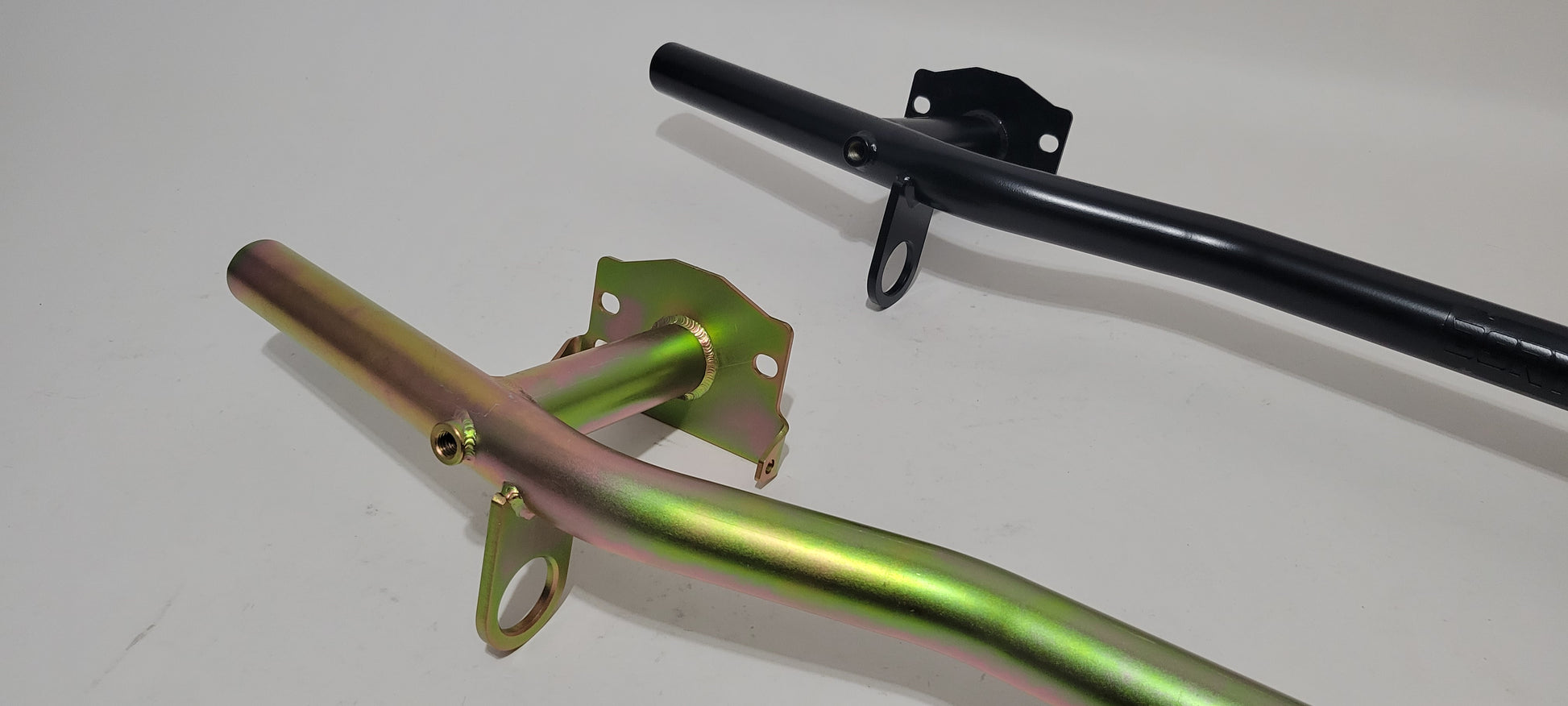

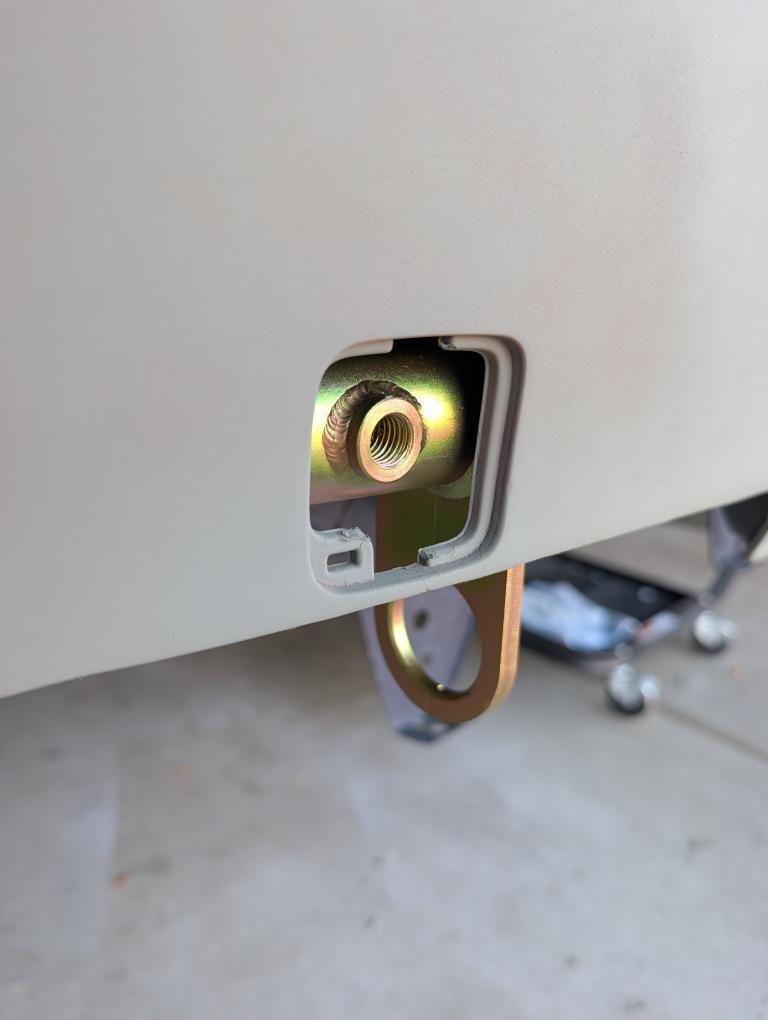

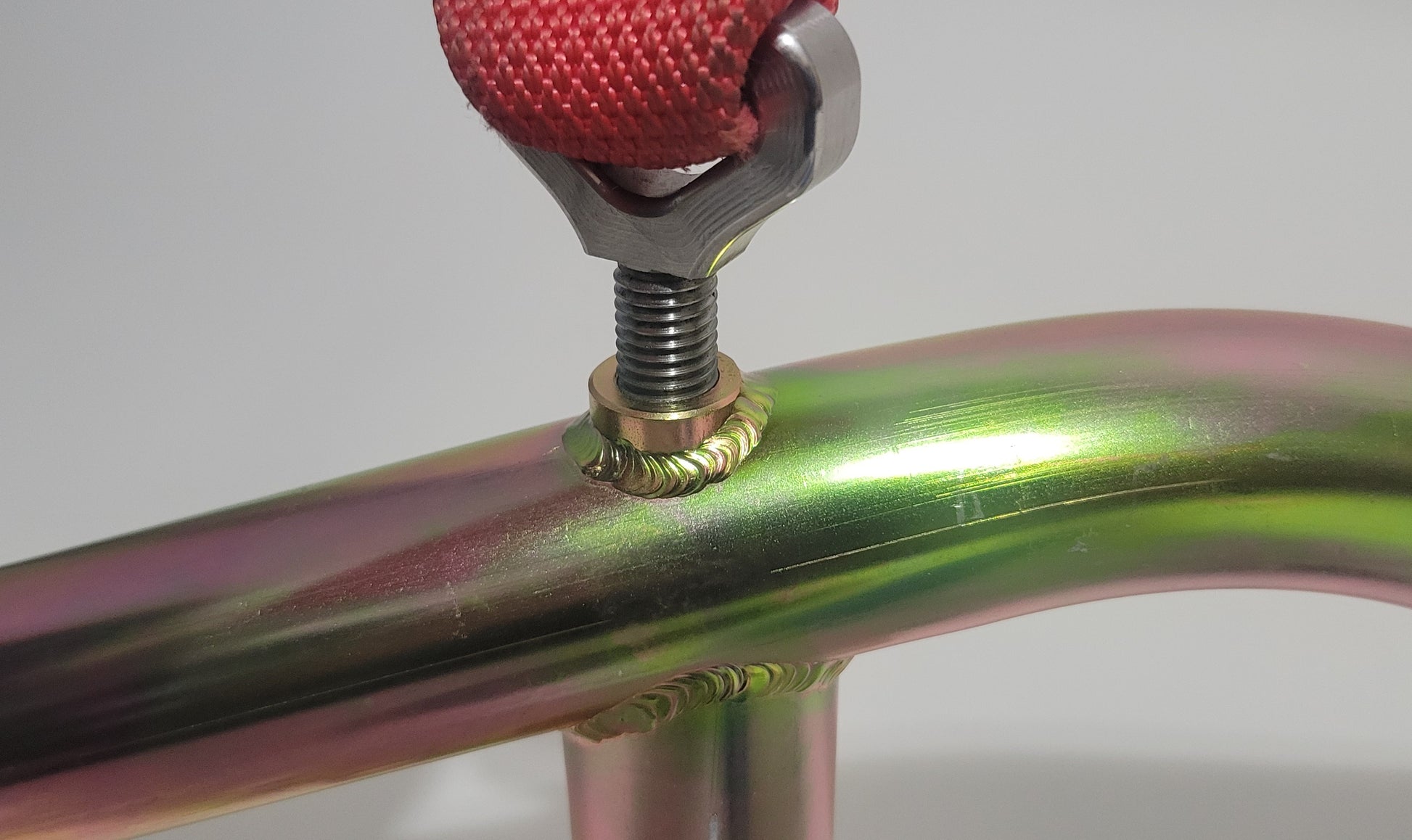

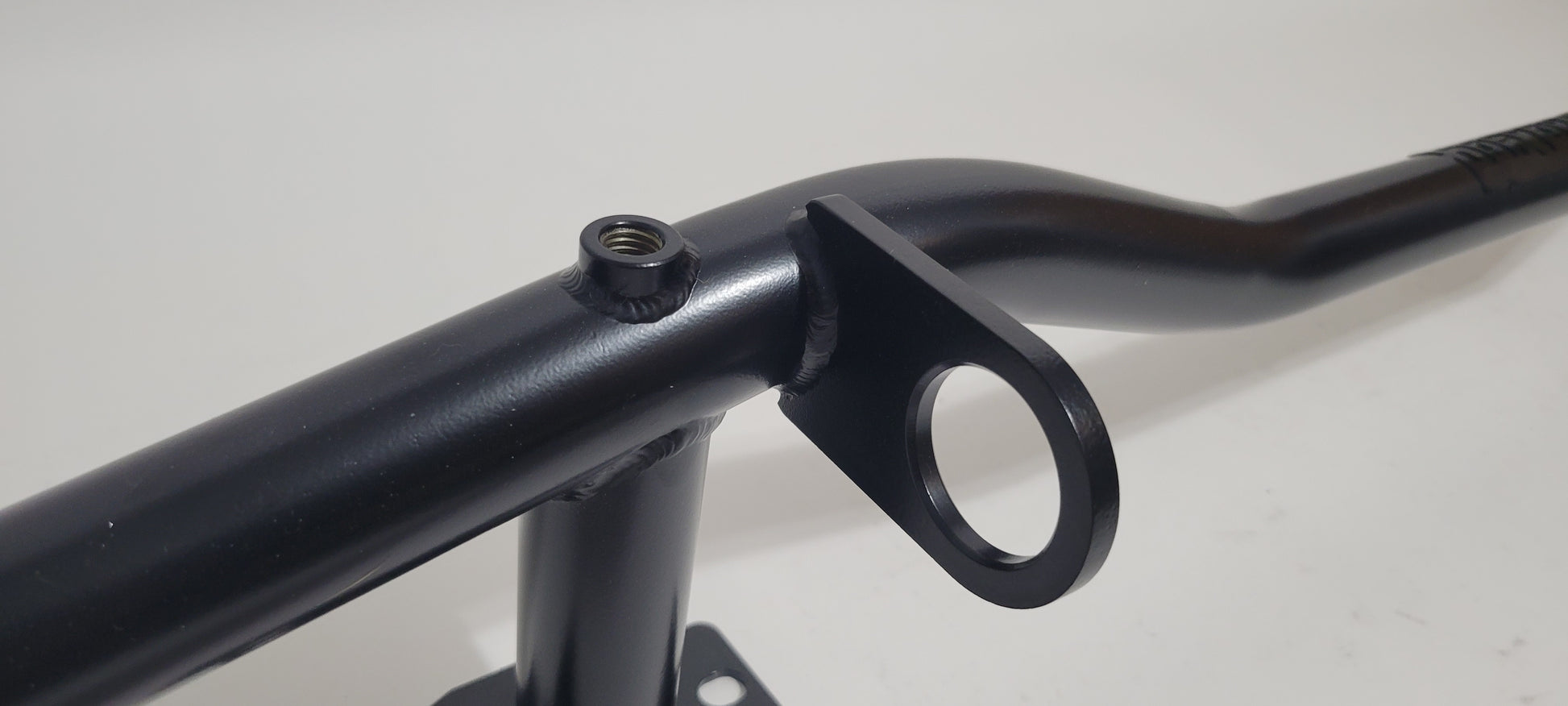

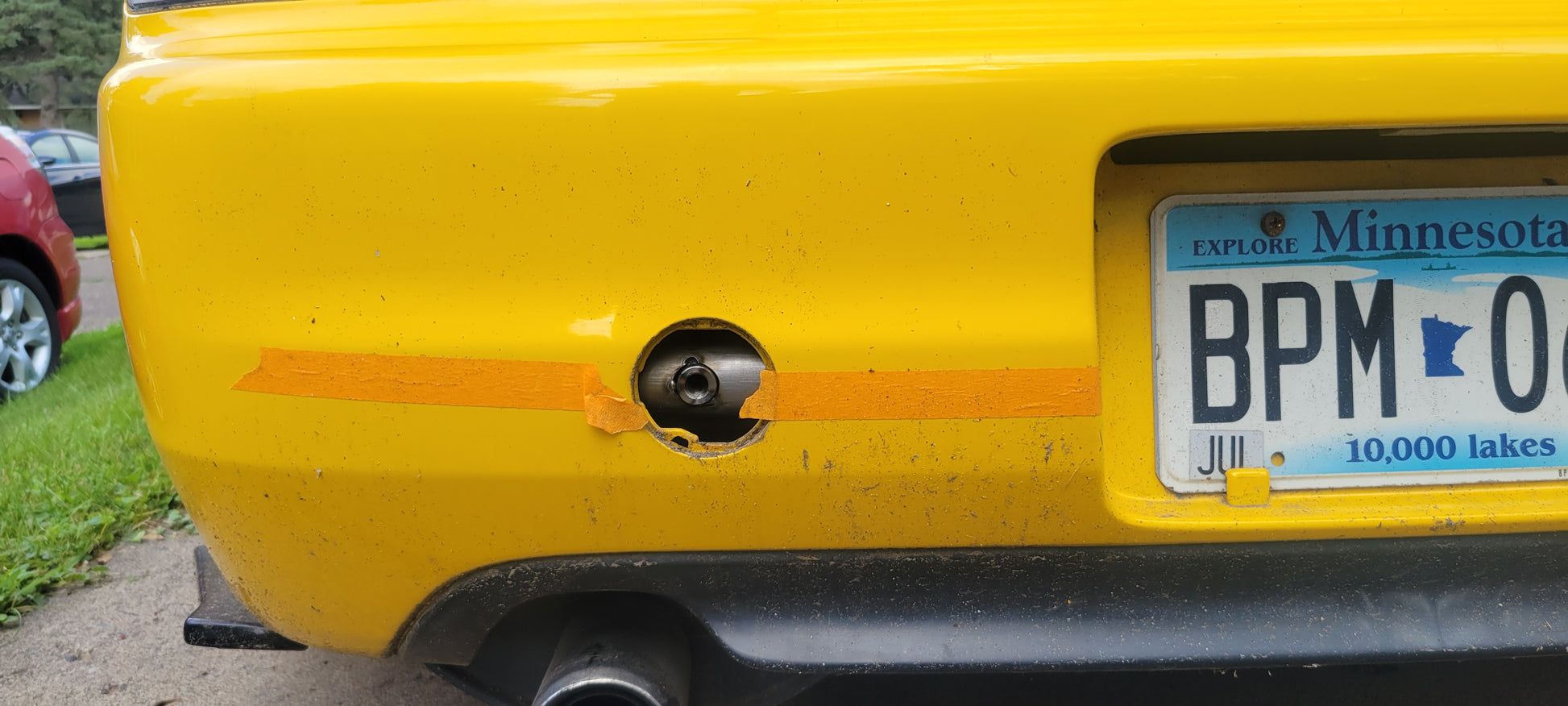

☆ Includes CNC machined & welded M12 tow bung in OEM location

☆ Includes (4) rear diffuser/aero support rod mounting provisions

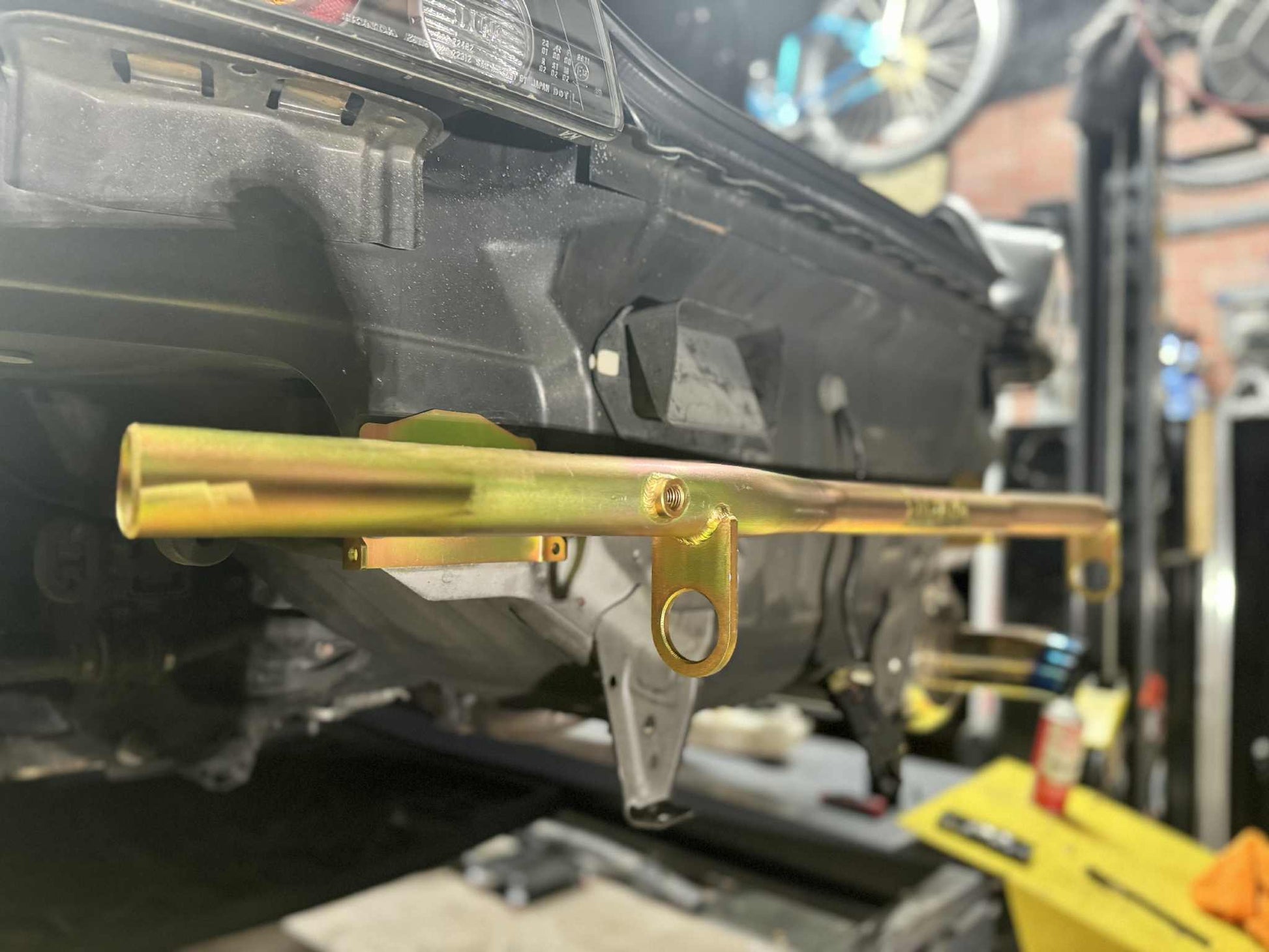

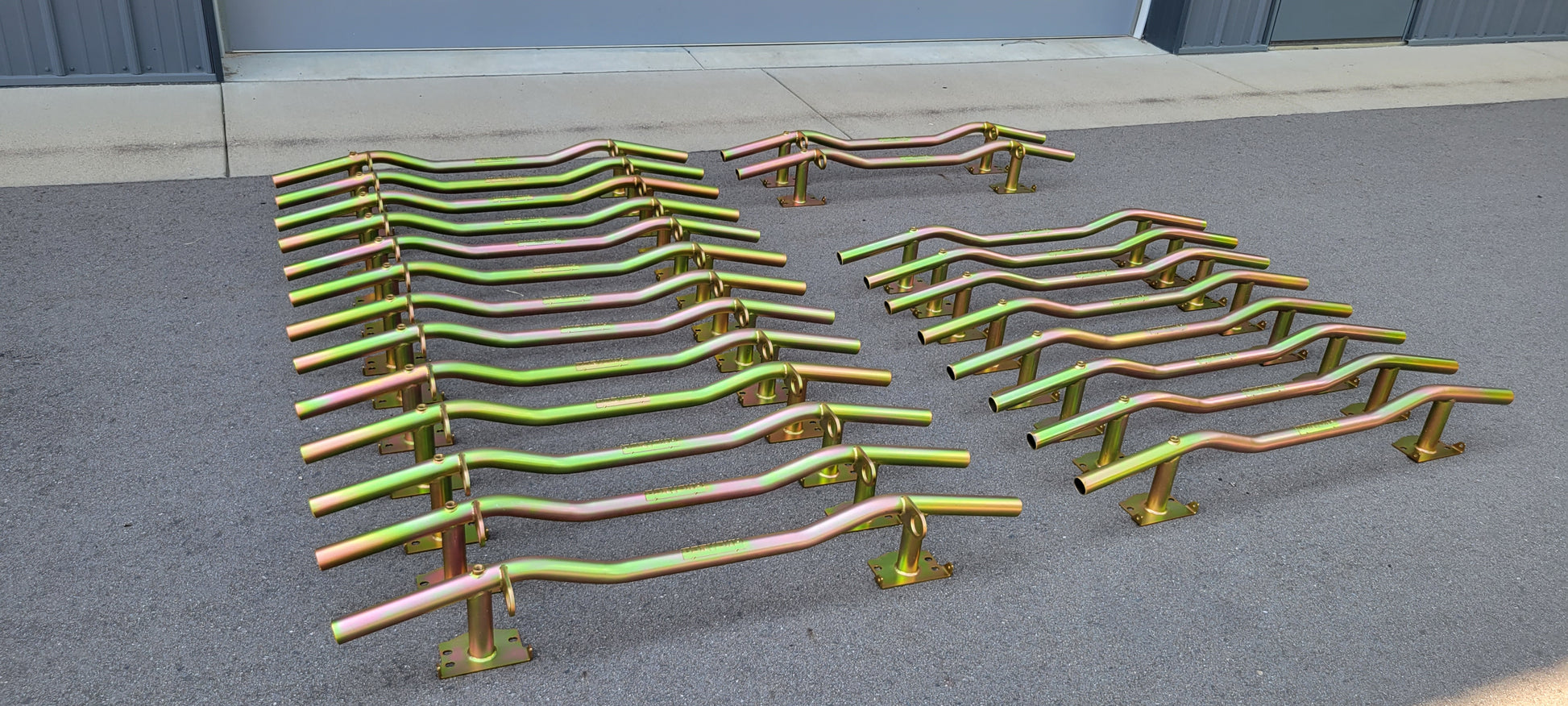

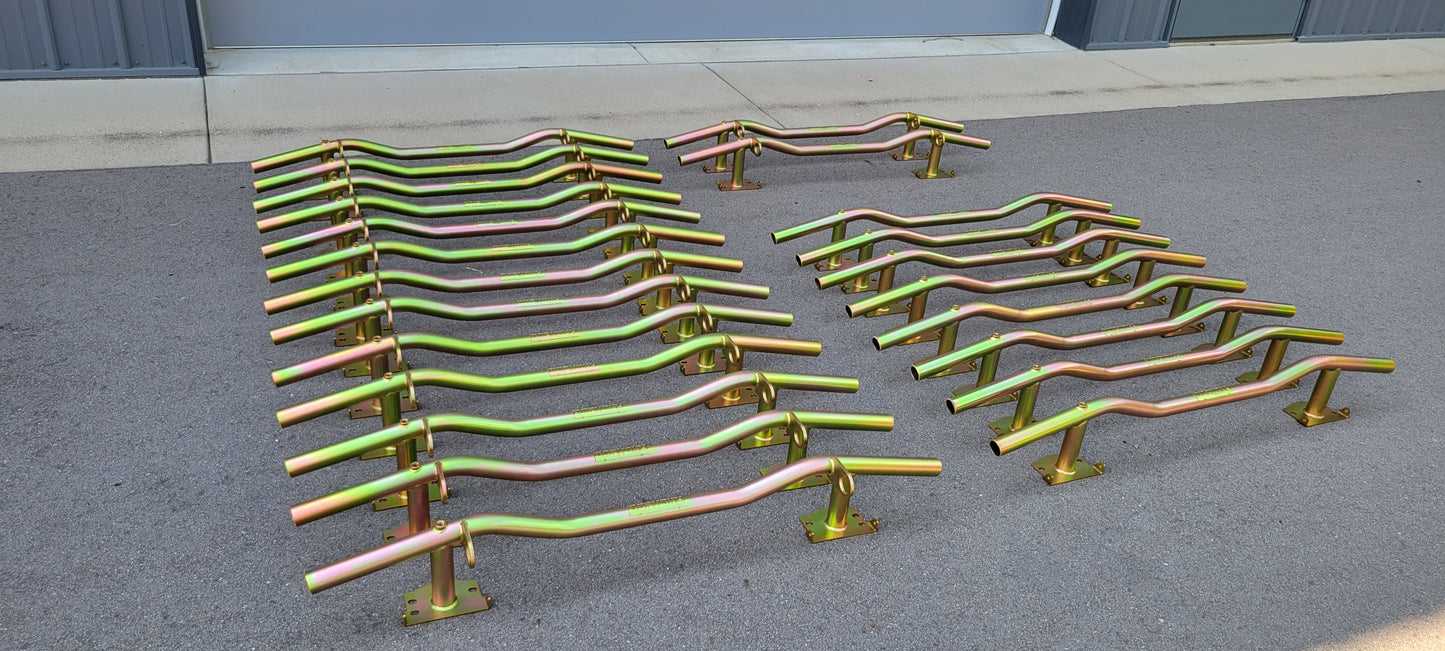

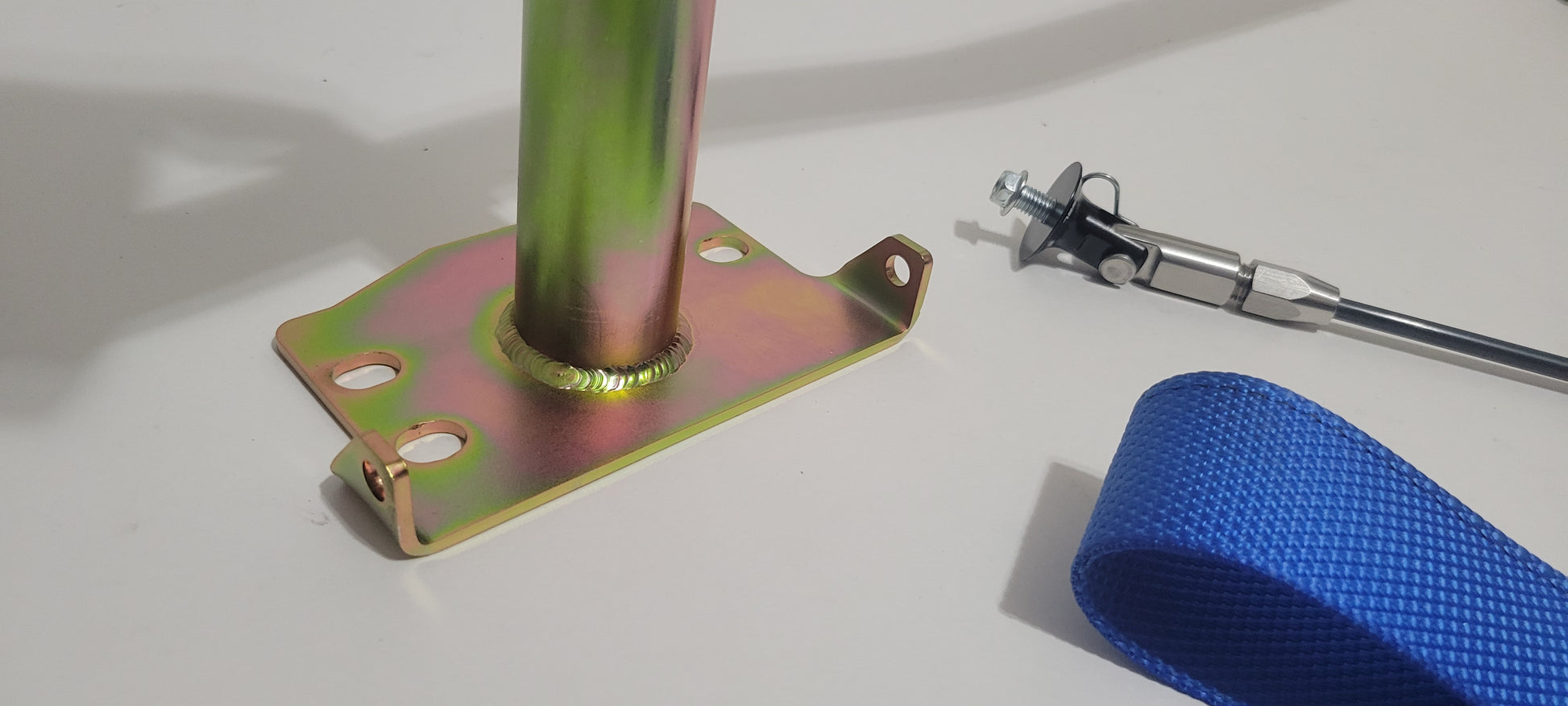

☆ Includes zinc chromate yellow plating

☆ Includes (5) M8 mounting bolts

☆ Roll cage spec DOM 1.5" 1020 13GA steel tube

☆ 10GA steel plates

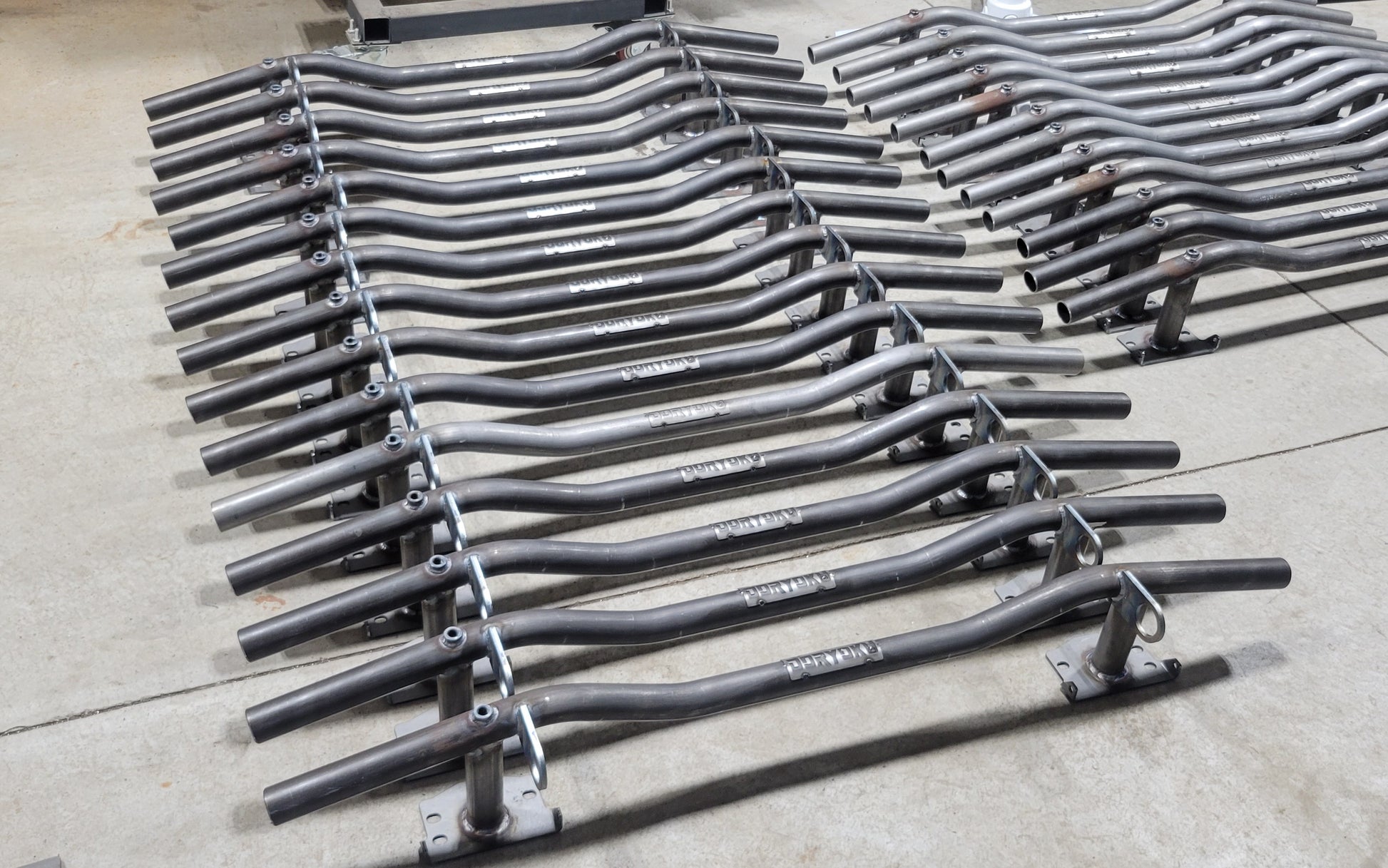

☆ 100% Professional TIG weld construction

☆ $35 flat rate shipping - up to 2 bars (front & rear)

☆ Legal in Gridlife, NASA, SCCA , Champcar Endurance Racing , WRL Endurance Racing, Luckydog Endurance Racing & more





Custom Options

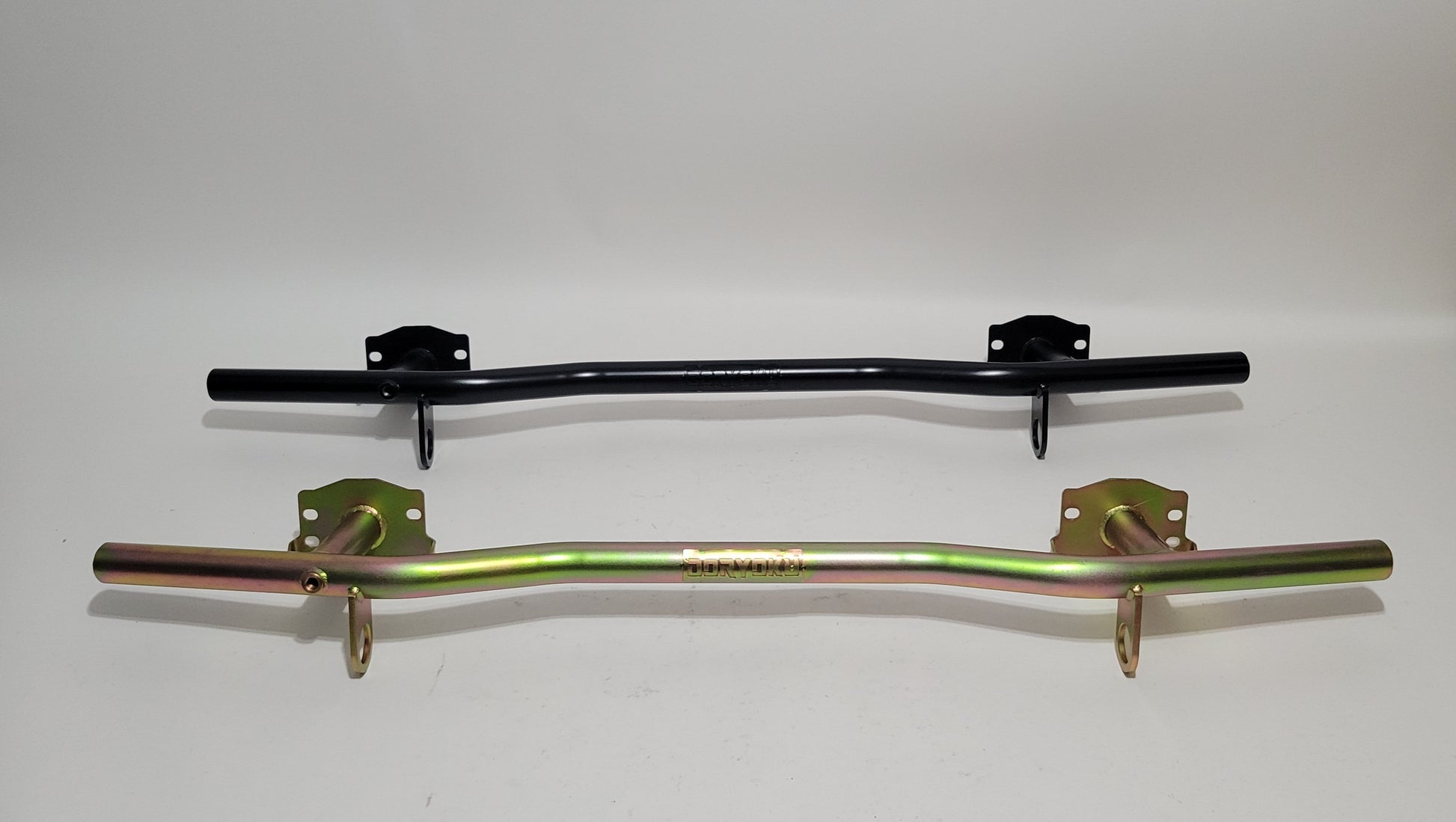

☆ Dual coating zinc + matte black powder

For those who want additional protection or just like a stealth color, powder coating matte black is durable & cost effective.



☆ Custom powder coating

I stock over 35 popular colors. Powder finishes are available in wrinkle, matte & gloss. Please note in "Special Instructions" what color you would like.

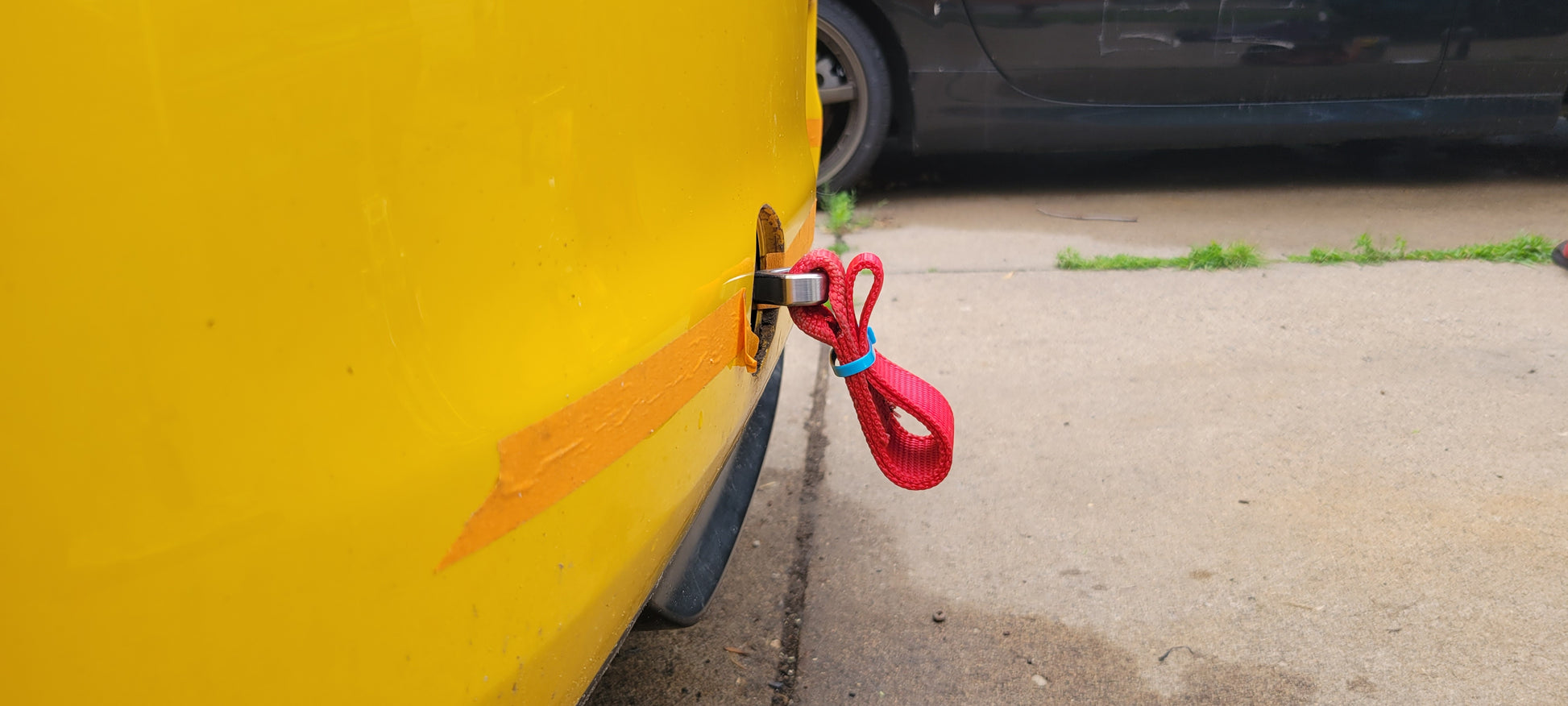

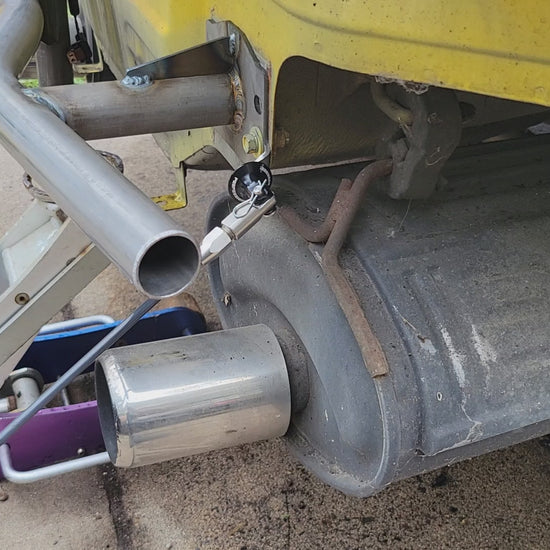

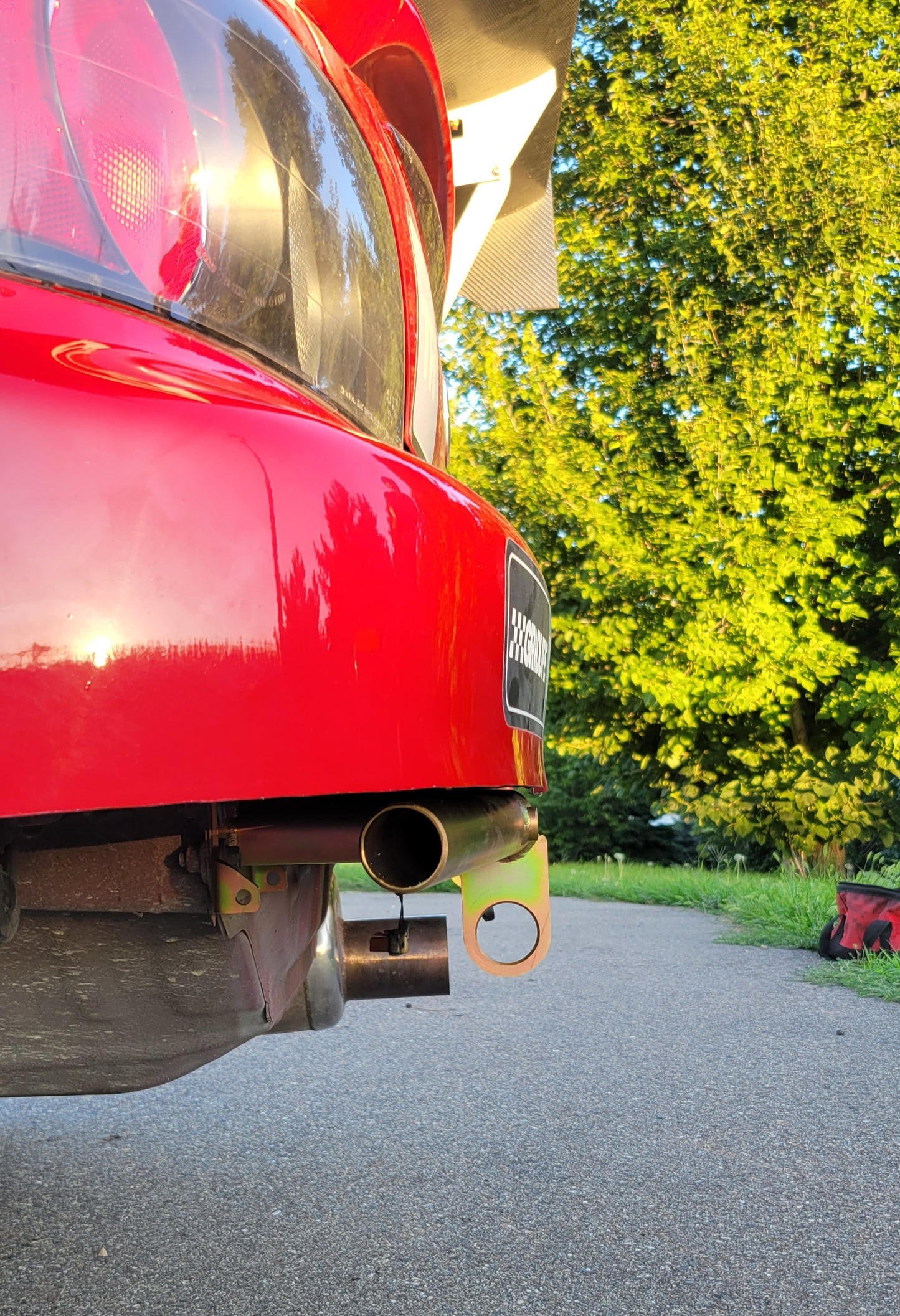

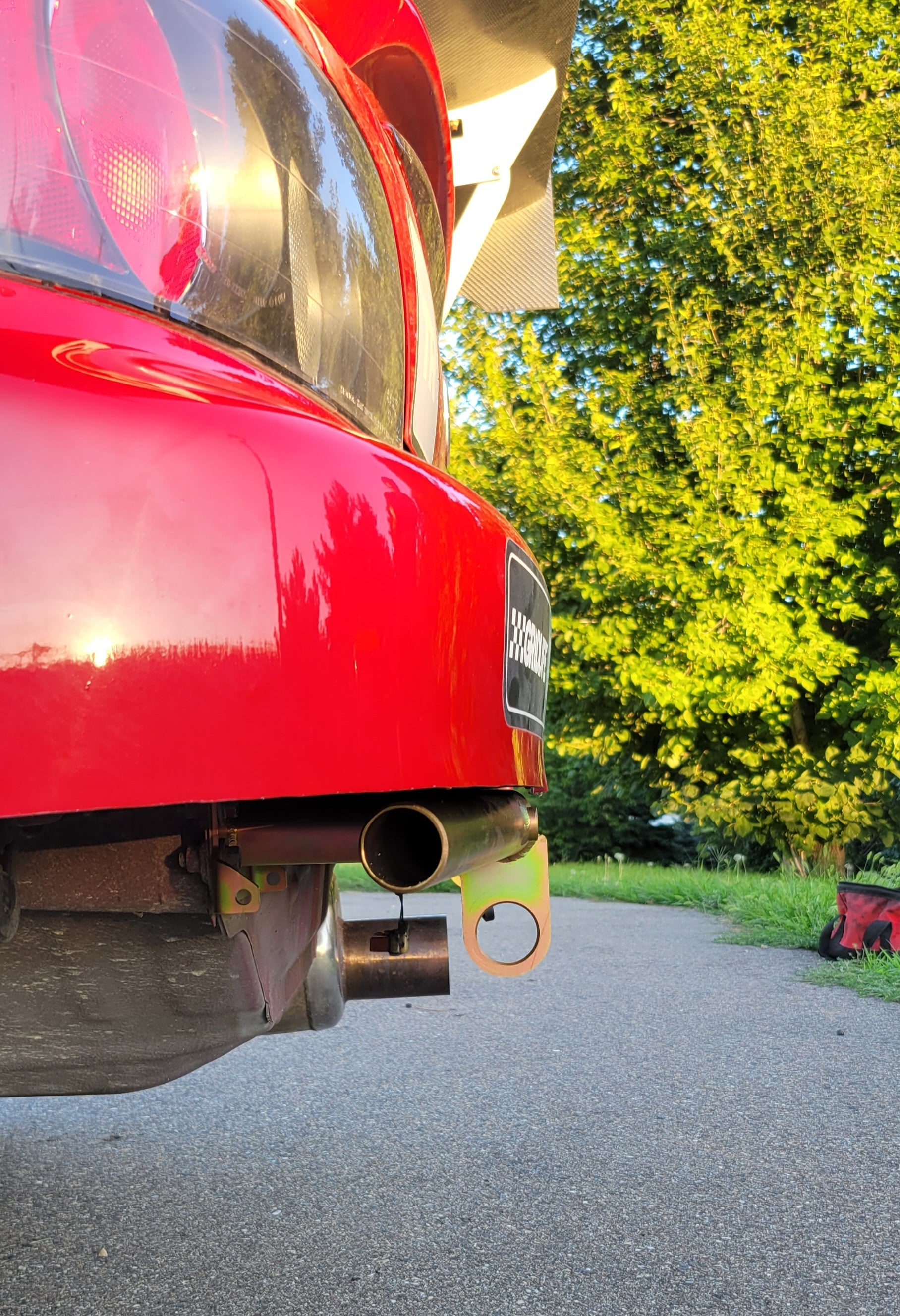

☆ Hidden Universal tow strap bracket

This welded bracket allows for universal tow straps to be bolted on. The Tow strap bracket can be placed on the driver or passenger side. We will verify your specs before fabrication.

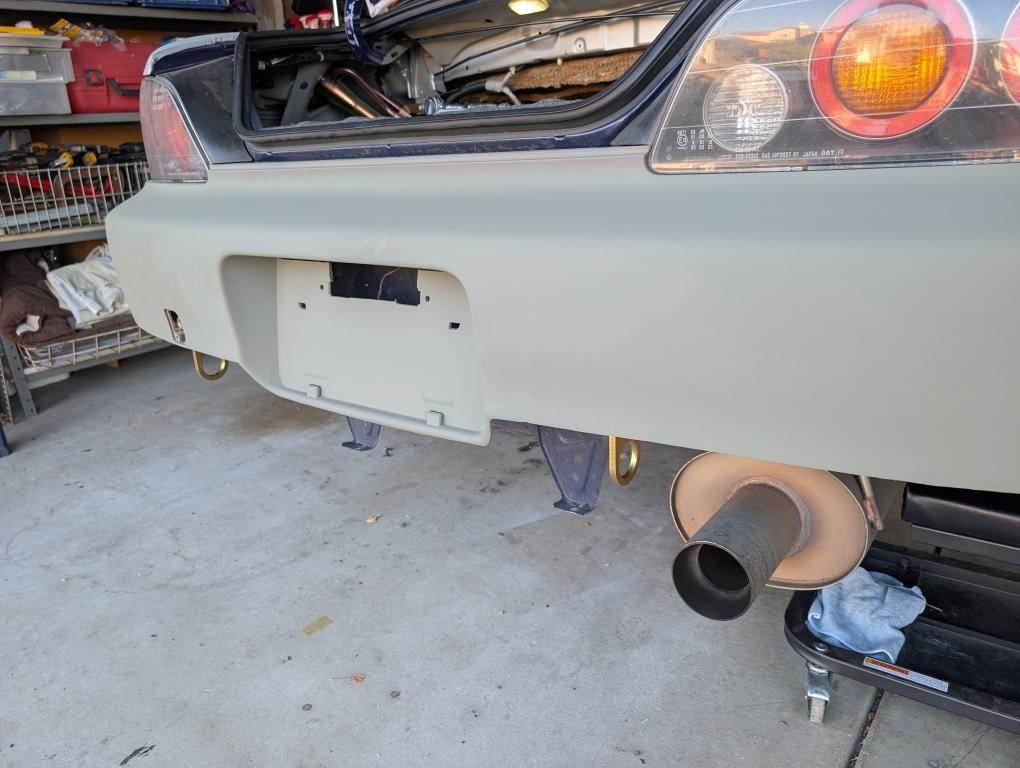

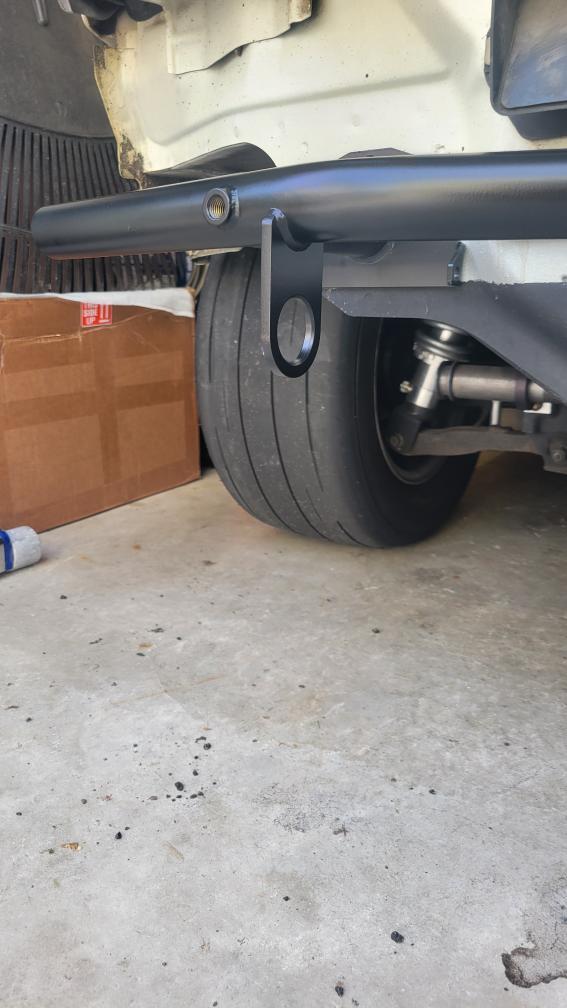

☆ Dual Mini-hooks

1/4" thick steel dual hooks are an excellent choice for easy/fast tie-down for transport and dyno. Hooks can be placed down and require a half cut bumper. Hooks can be faced outward at any angle but require a vertical slit in the bumper.

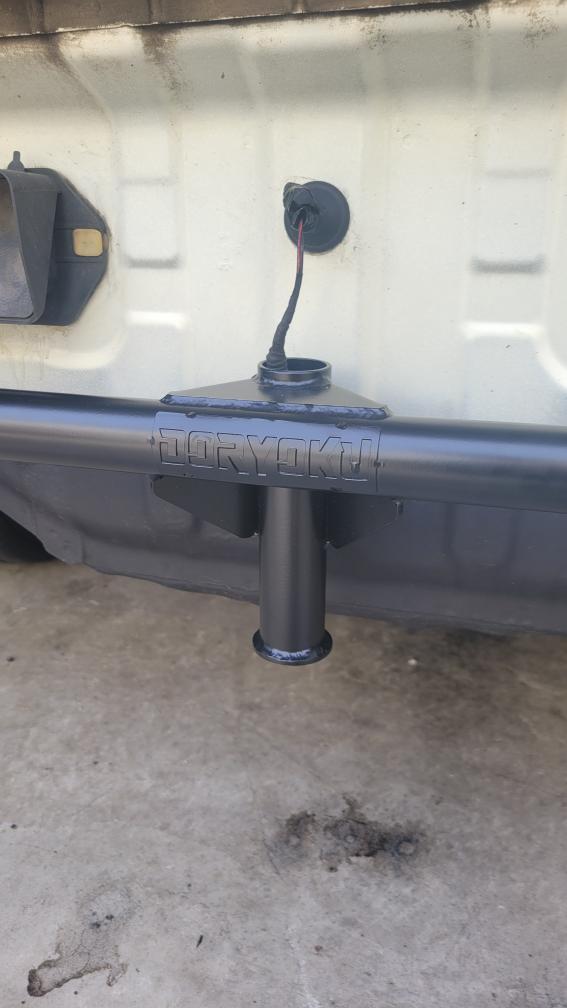

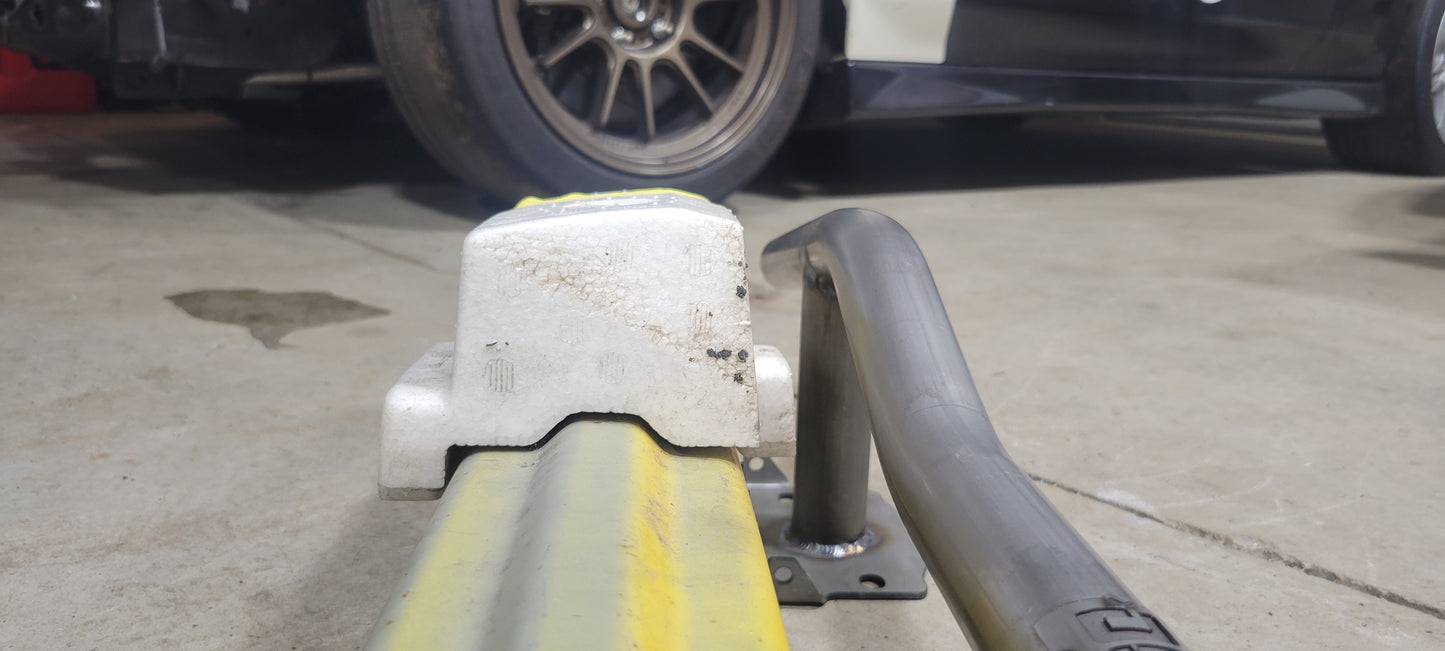

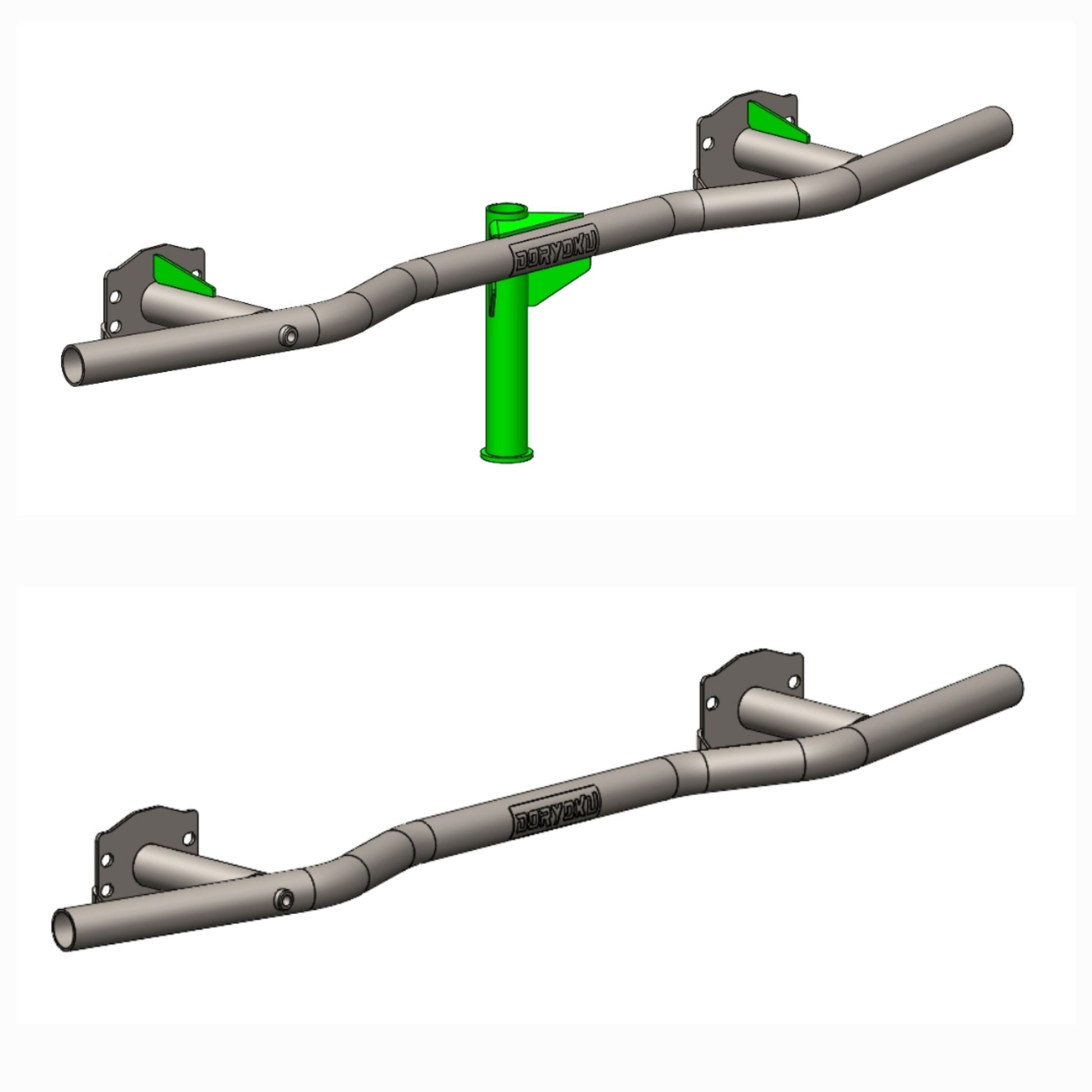

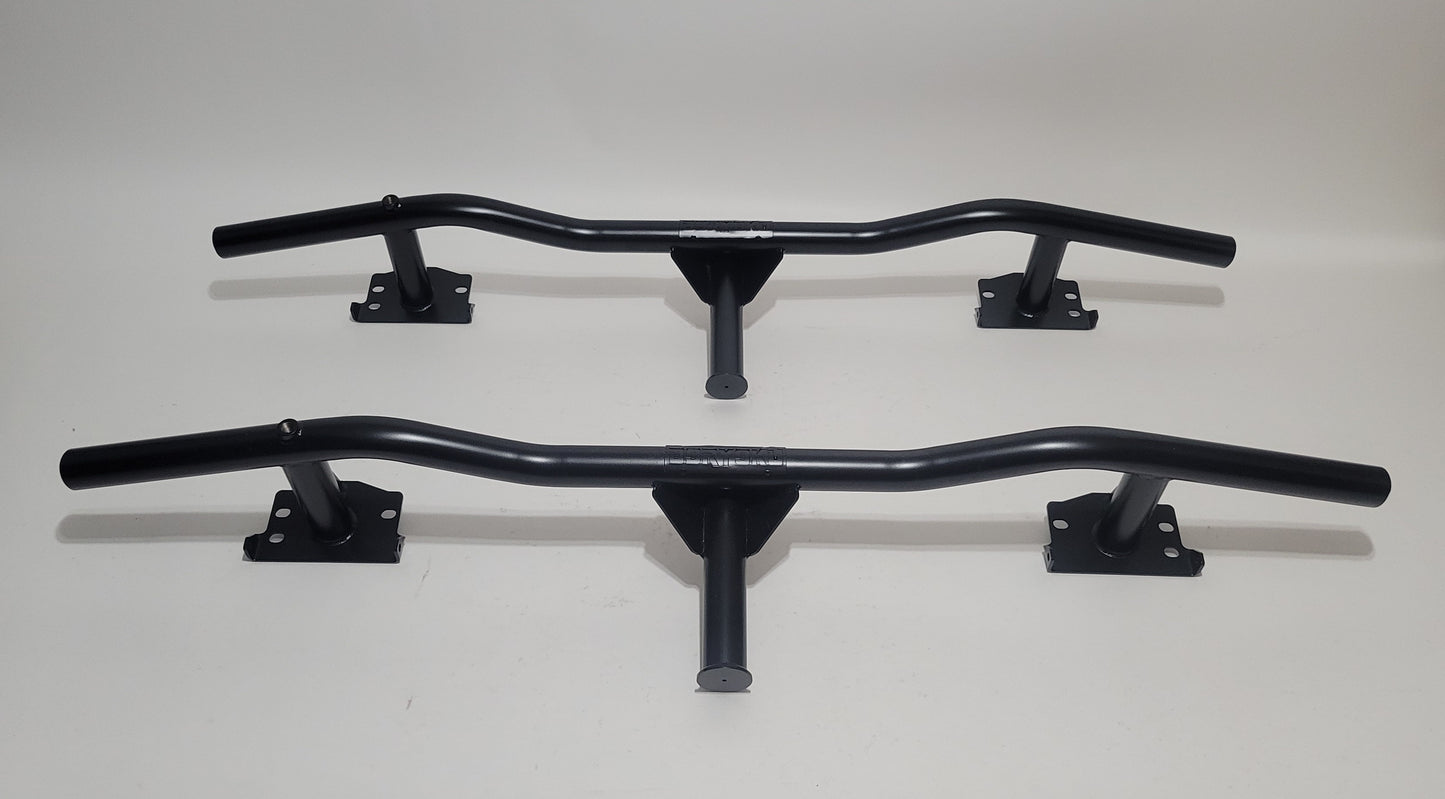

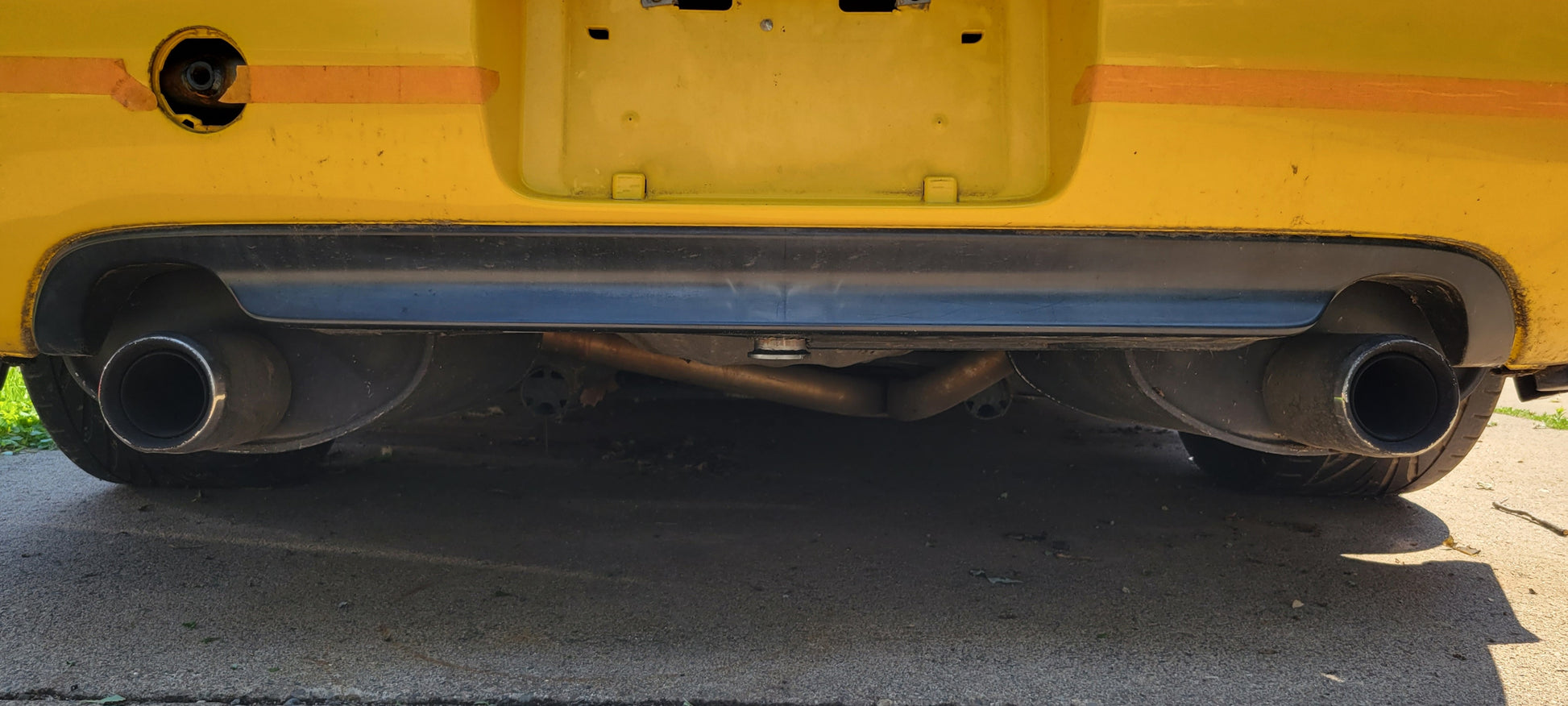

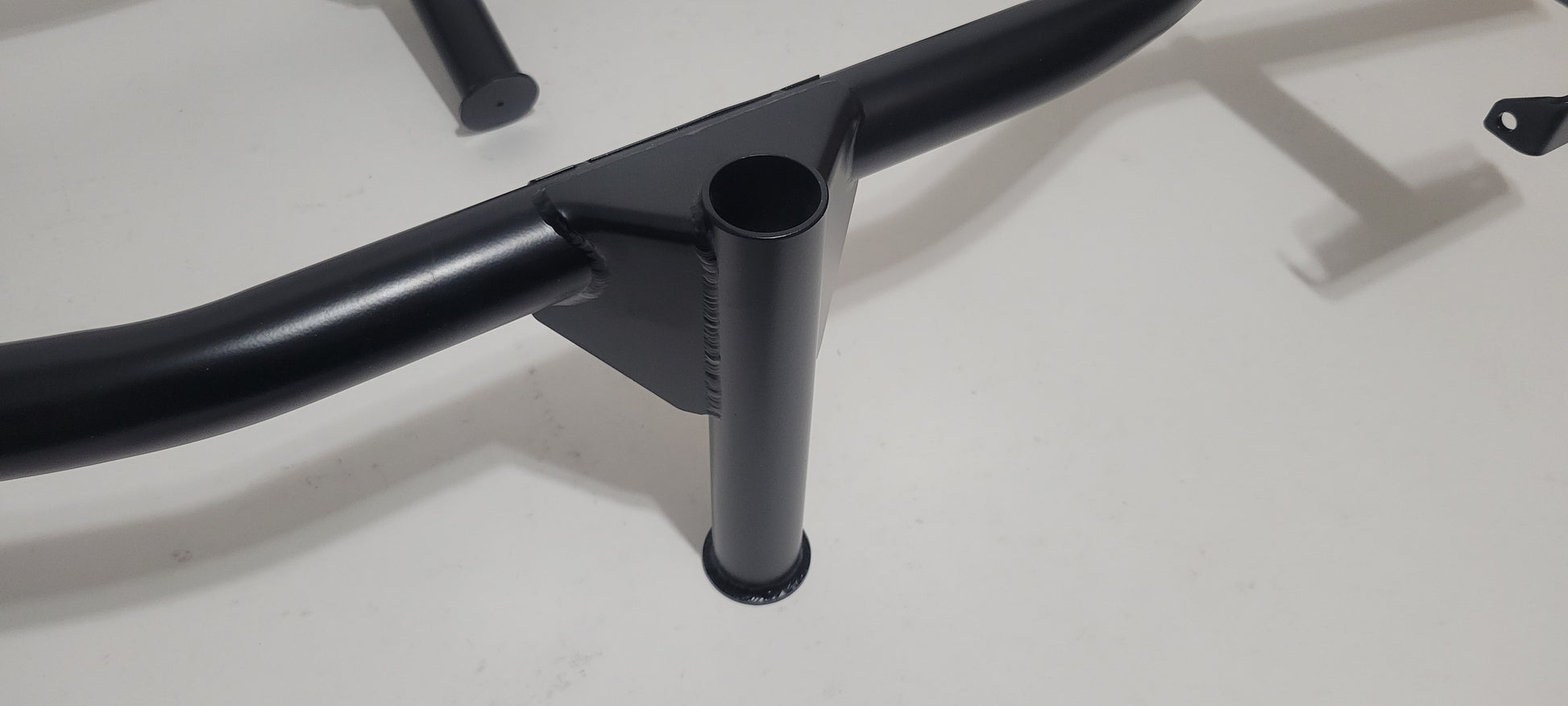

☆ Jackpoint

Jackpoint will extend 1/4" beyond the bumper tray

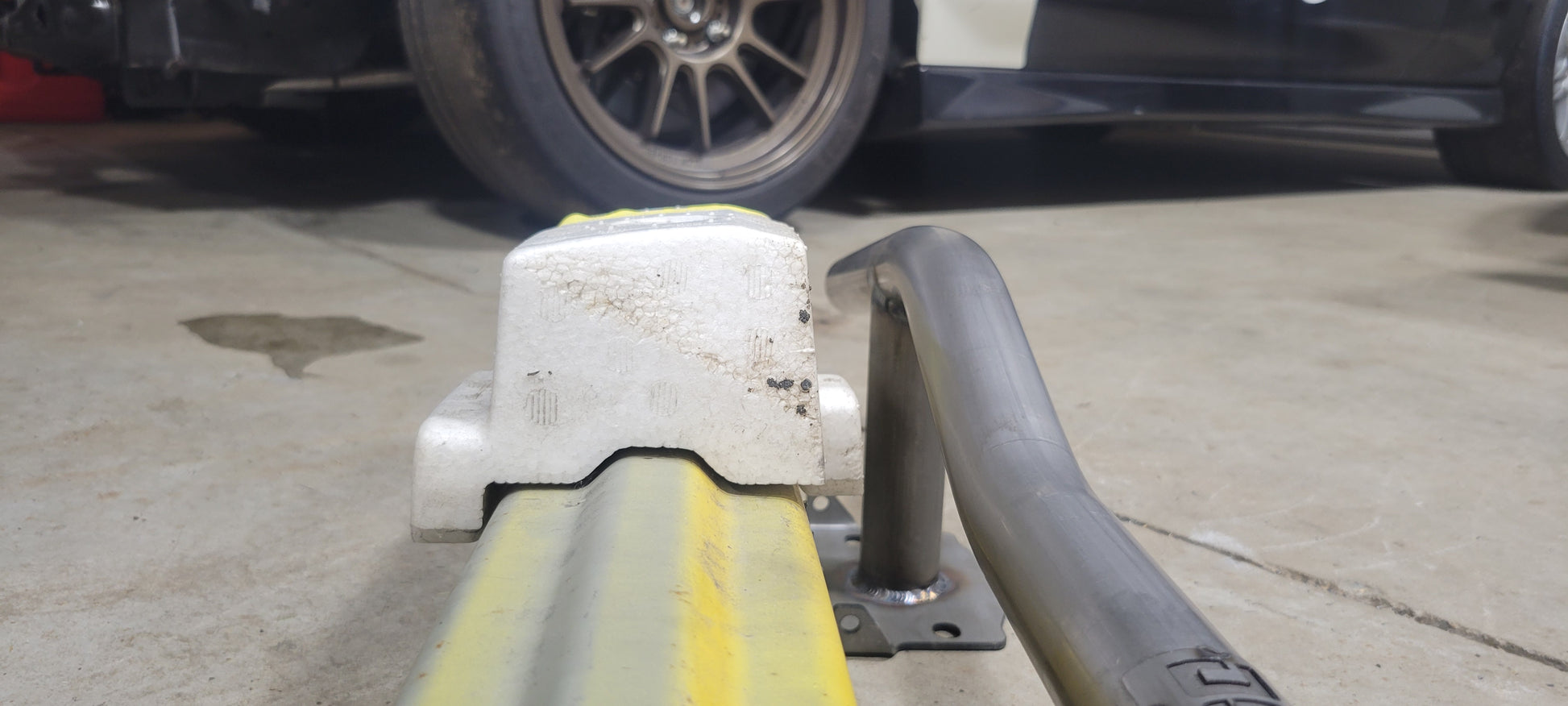

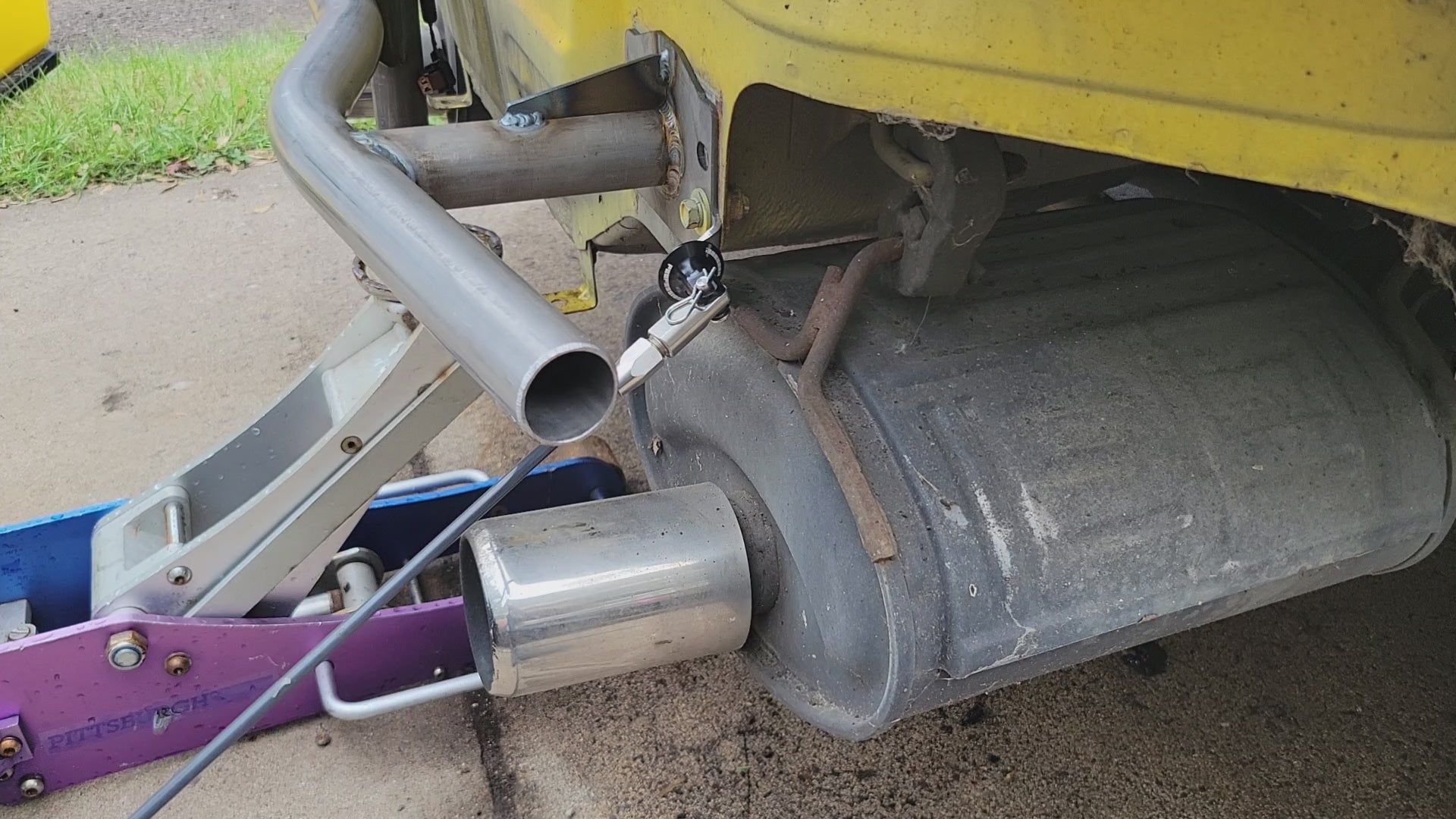

The S2000 diff is 40" away from the bumper. Most floor jacks are going to have 20-24" of reach (jack pad to lower handle). Super-long floor jacks will have 30-34" of reach but are $500 & weigh over +80lbs. S2000 owners must get down to floor level in order to see and line up jack to the diff to jack pad, then you still have to go through the motion of doing "micro-pumps" (because jack handle is hitting bumper) before the car is high enough to get any decent travel from the jack handle. This jackpoint tube eliminates those annoyances while keeping the visual footprint & bumper trimming minimal.

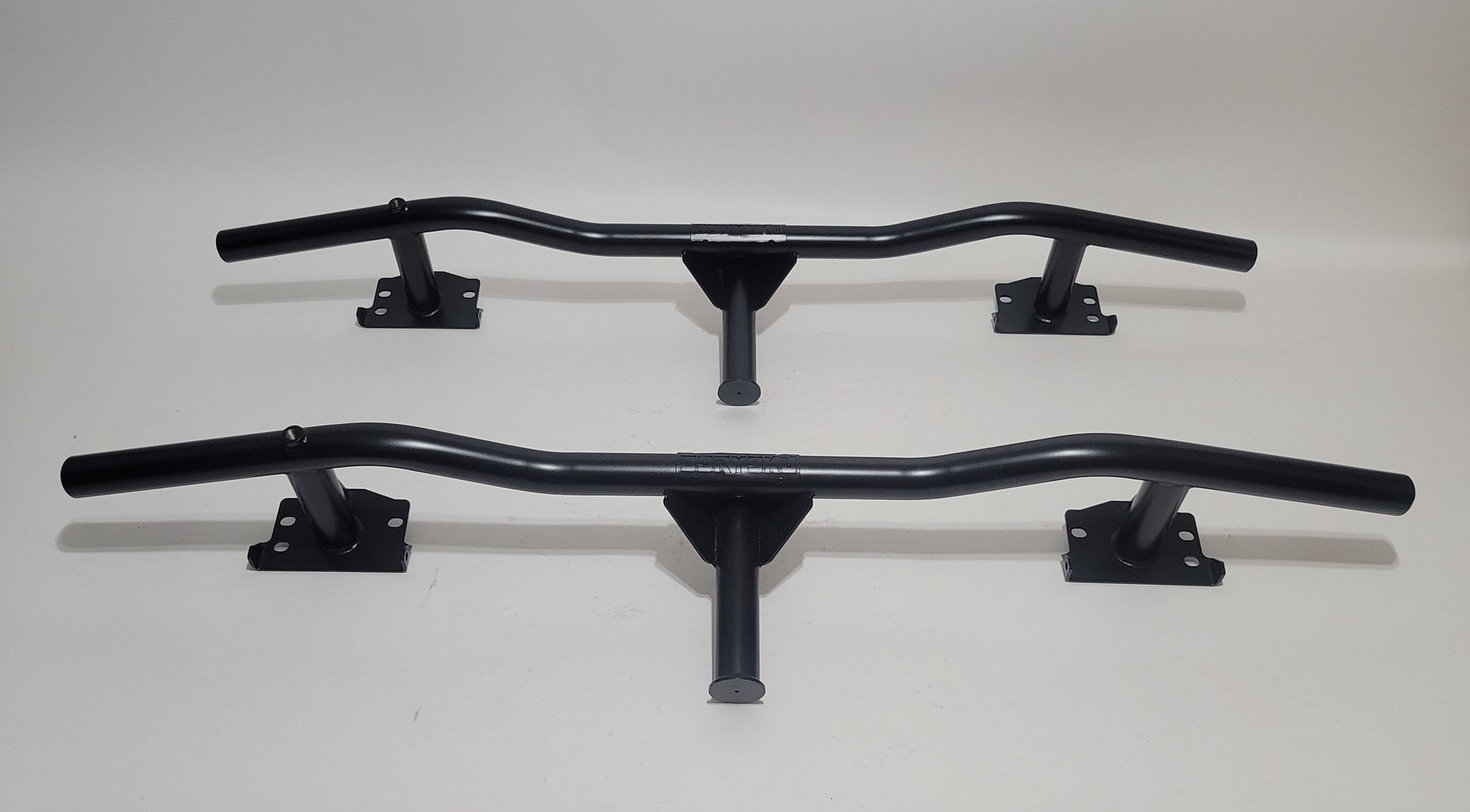

• AP1 standard length 6.5"

• AP2 standard length 8.25"

• Custom length no additional charge
