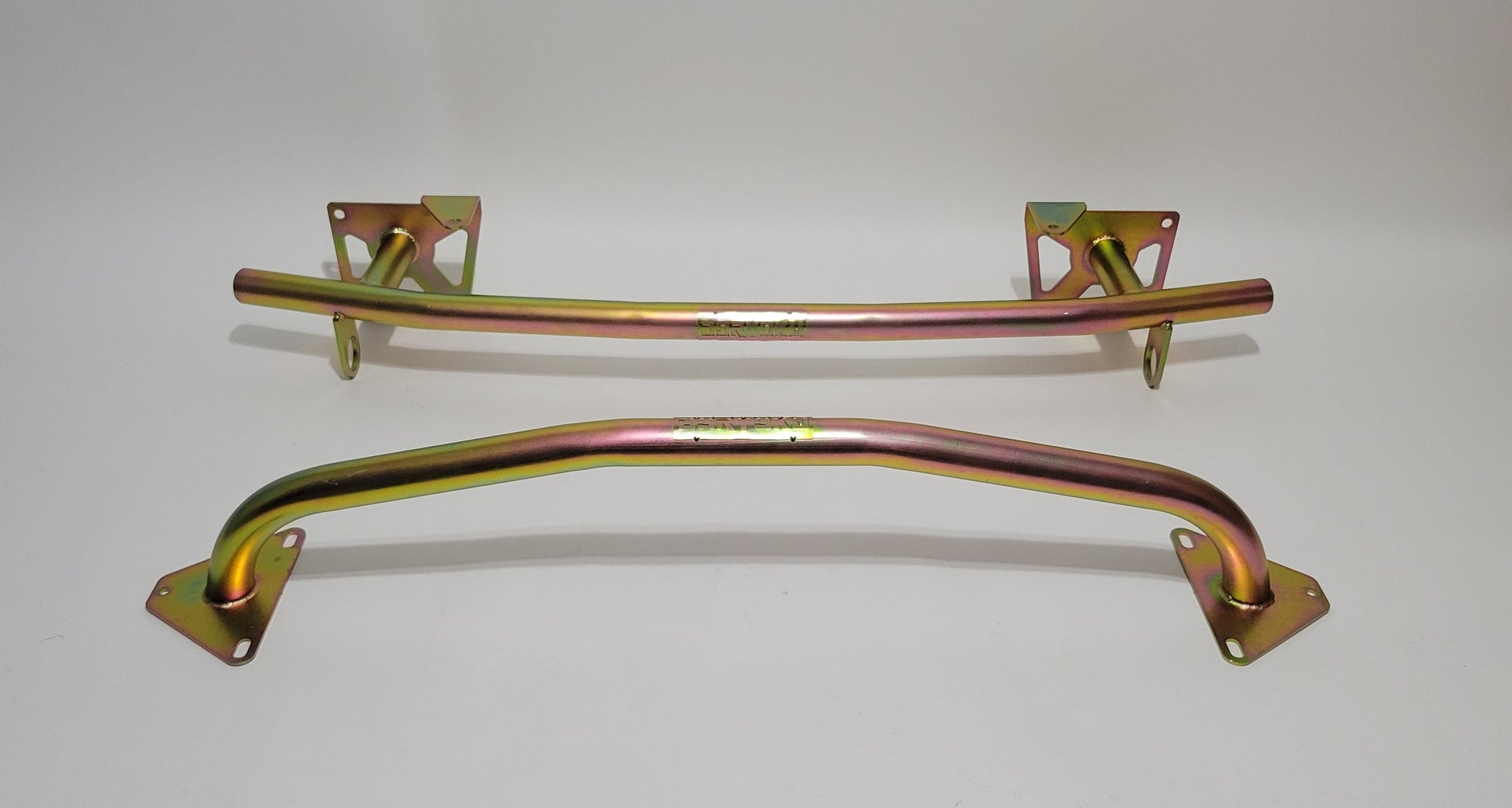

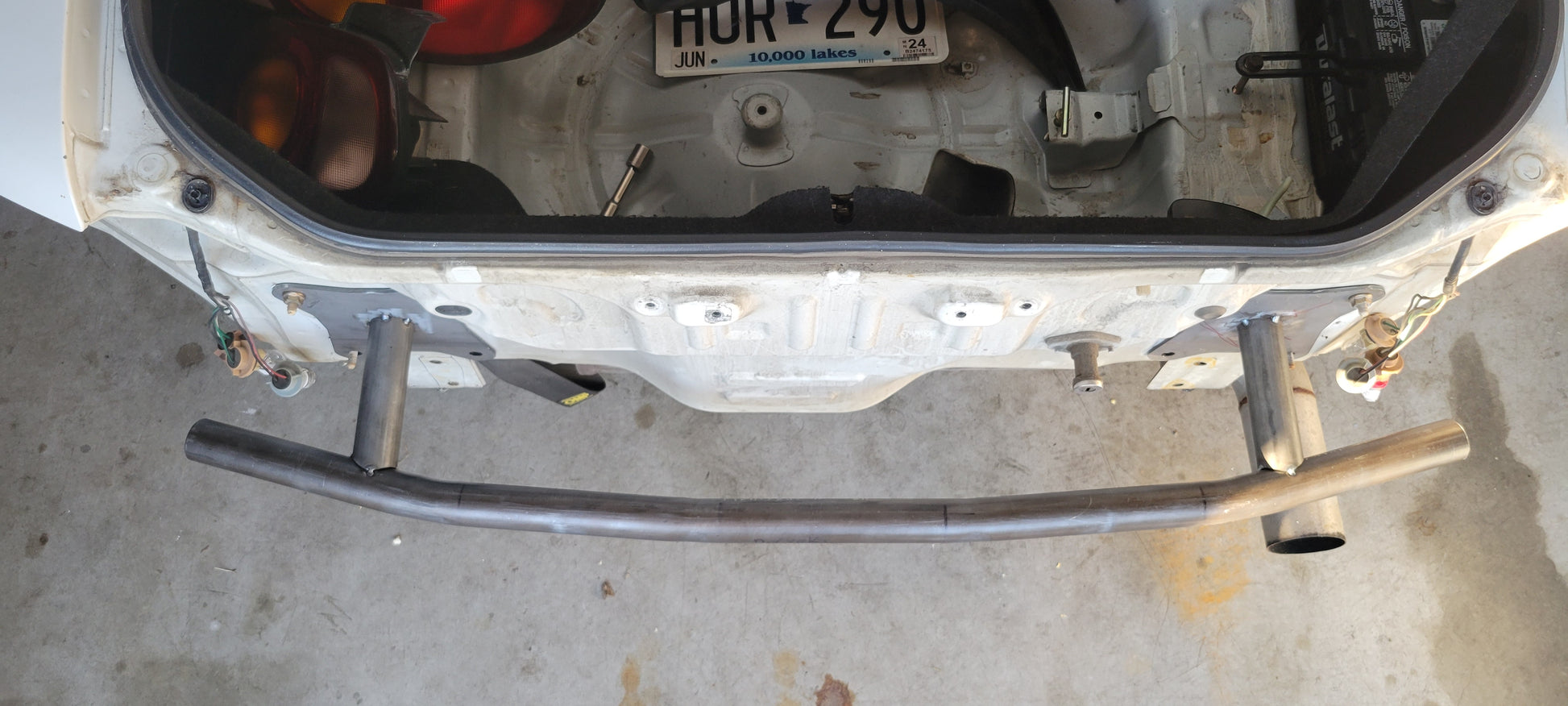

NB Miata Rear Bar

Doryoku Race Bar’s philosophy of use & design

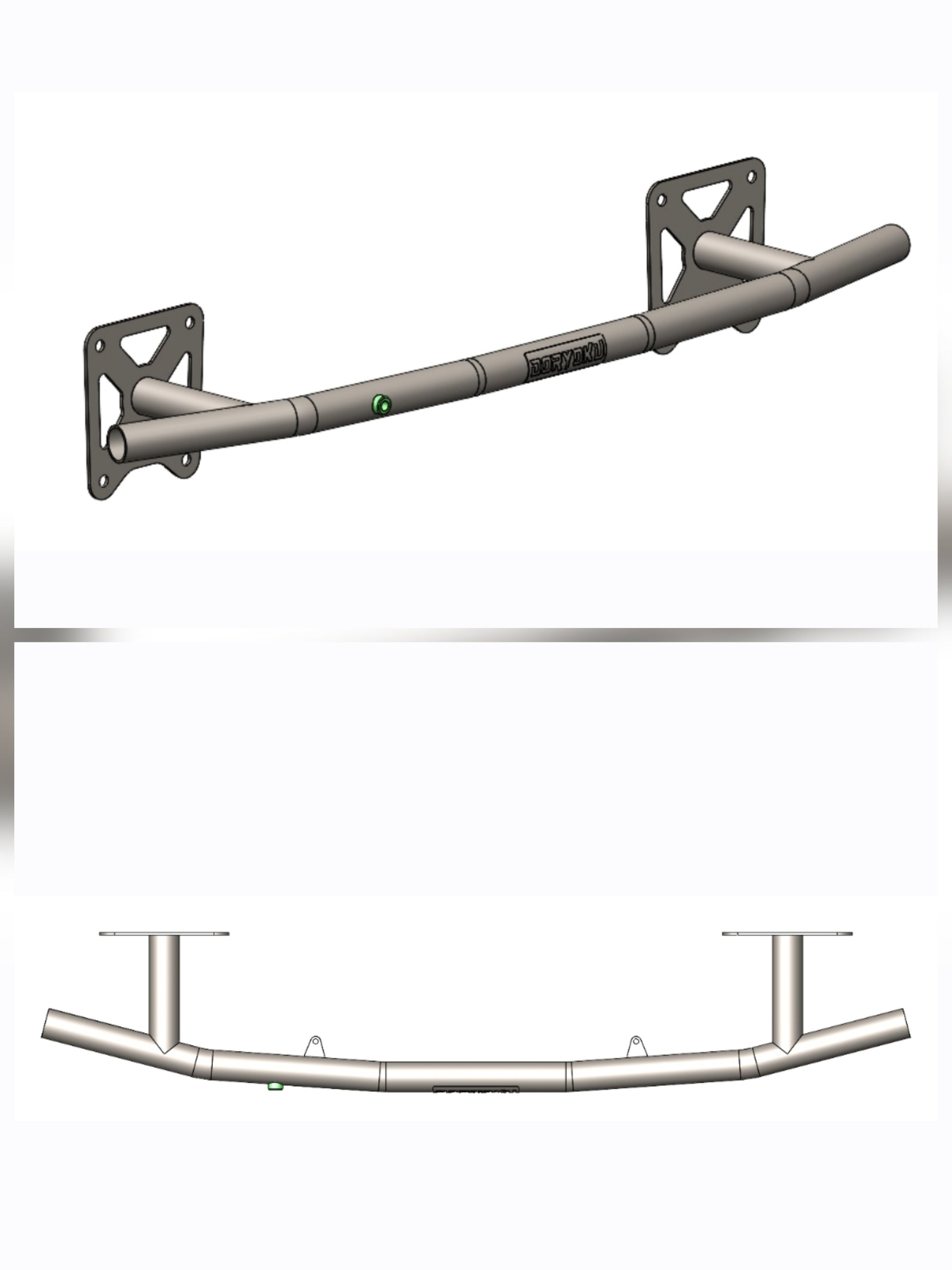

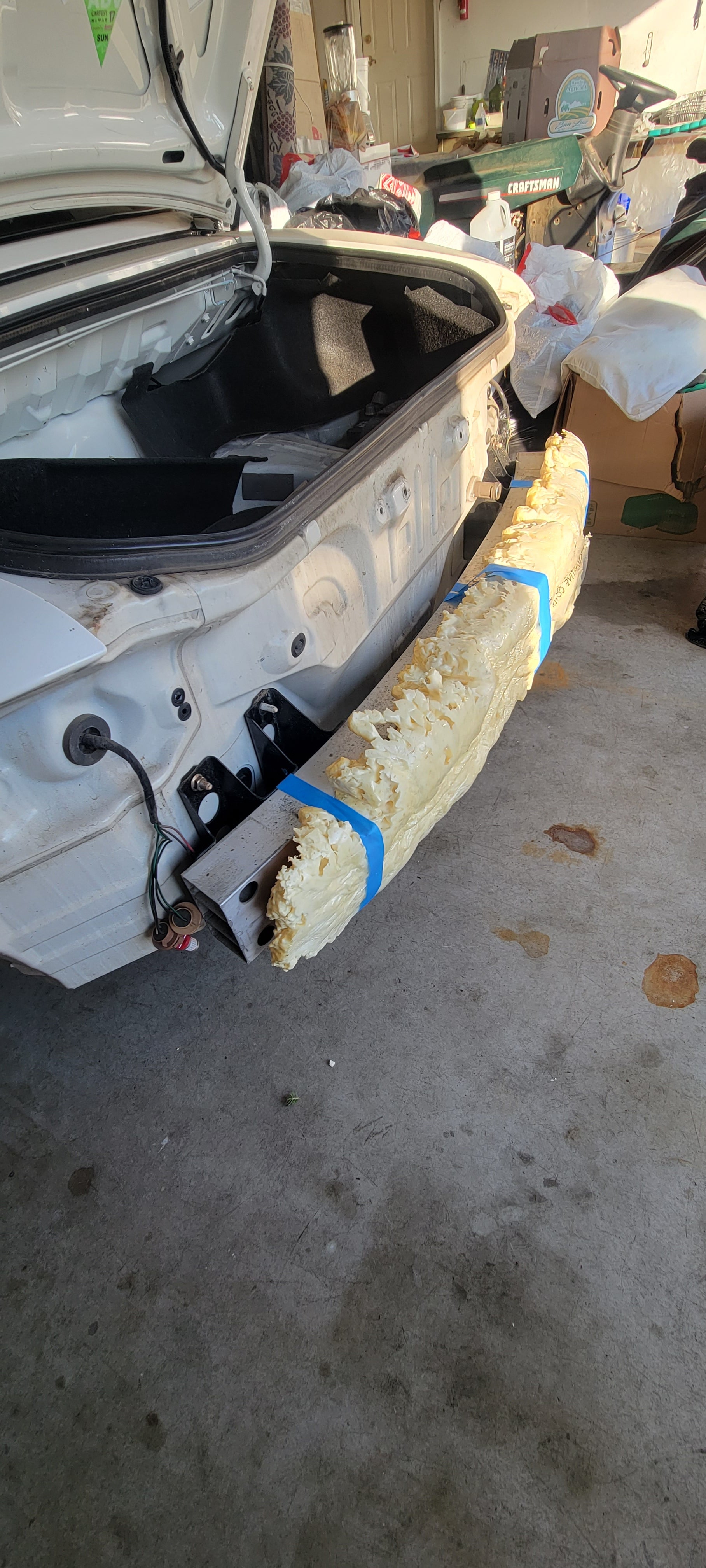

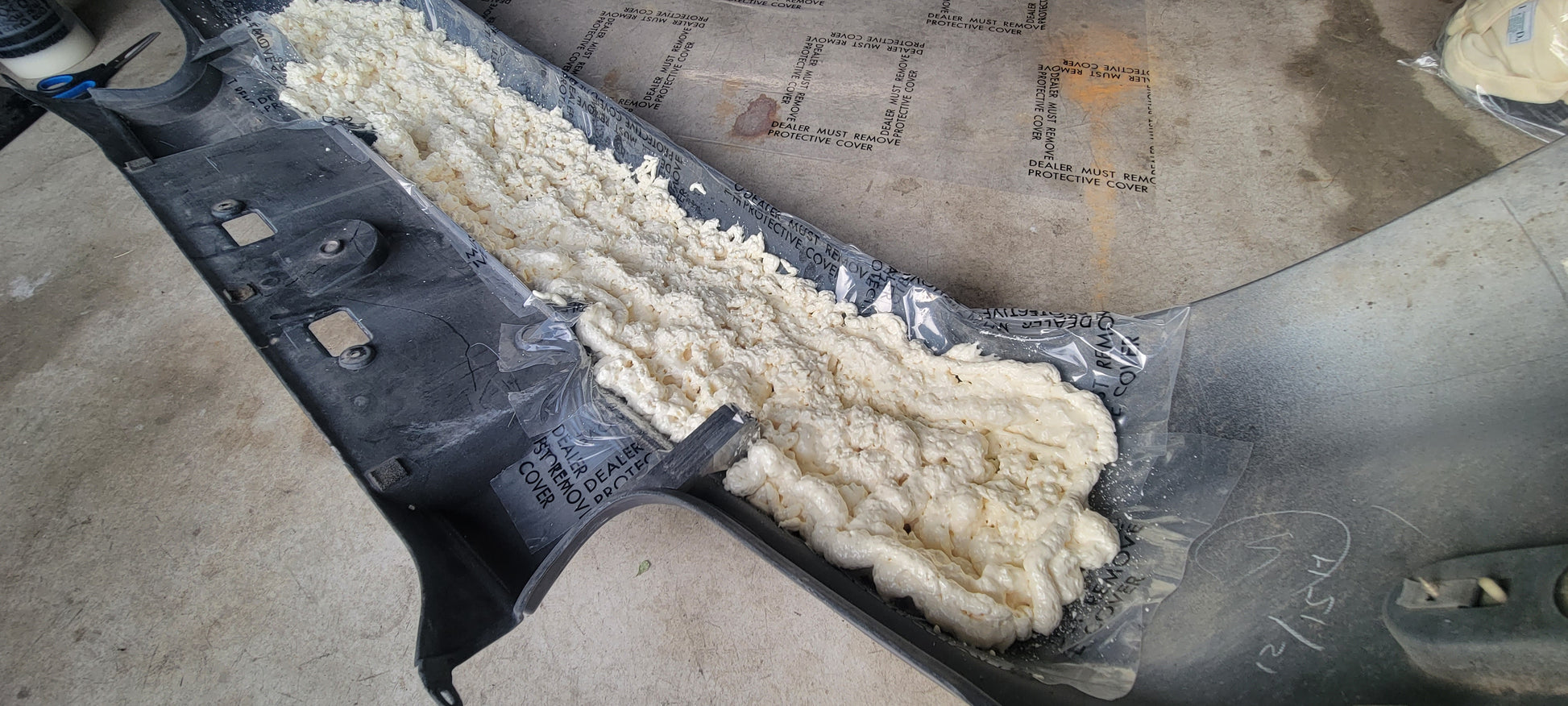

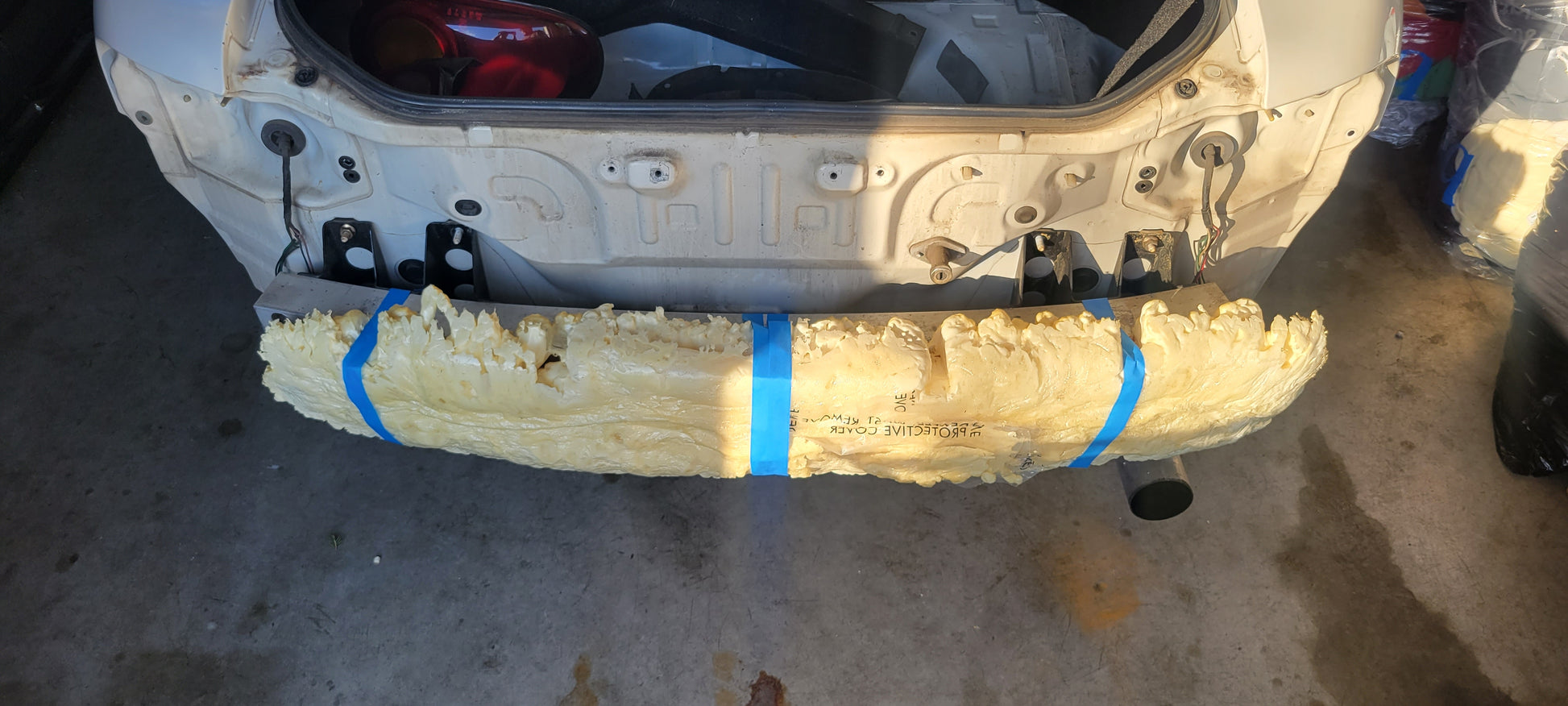

We designed this to be the best value bar on the market when it comes to weight, construction, design, add on options, price and total value. All bars are designed by scanning the OEM bumper bar/foam/support so that we can ensure the best fit and follow the existing shape. The race bar is intended to provide many performance benefits for track car applications (drag /road race) while allowing the user to customize the bar as they grow in the sport.



1999 - 2005 Mazda Miata NB track bar specifications

☆ Direct bolt-on replacement of rear plastic tub

☆ 2.9 lbs. weight savings over stock NB2 and 2.5 lbs. savings over NB1

☆ Includes new M8 mounting hardware

☆ 1.5" 13GA DOM steel tube & 10GA steel plate

☆ Professional TIG weld construction

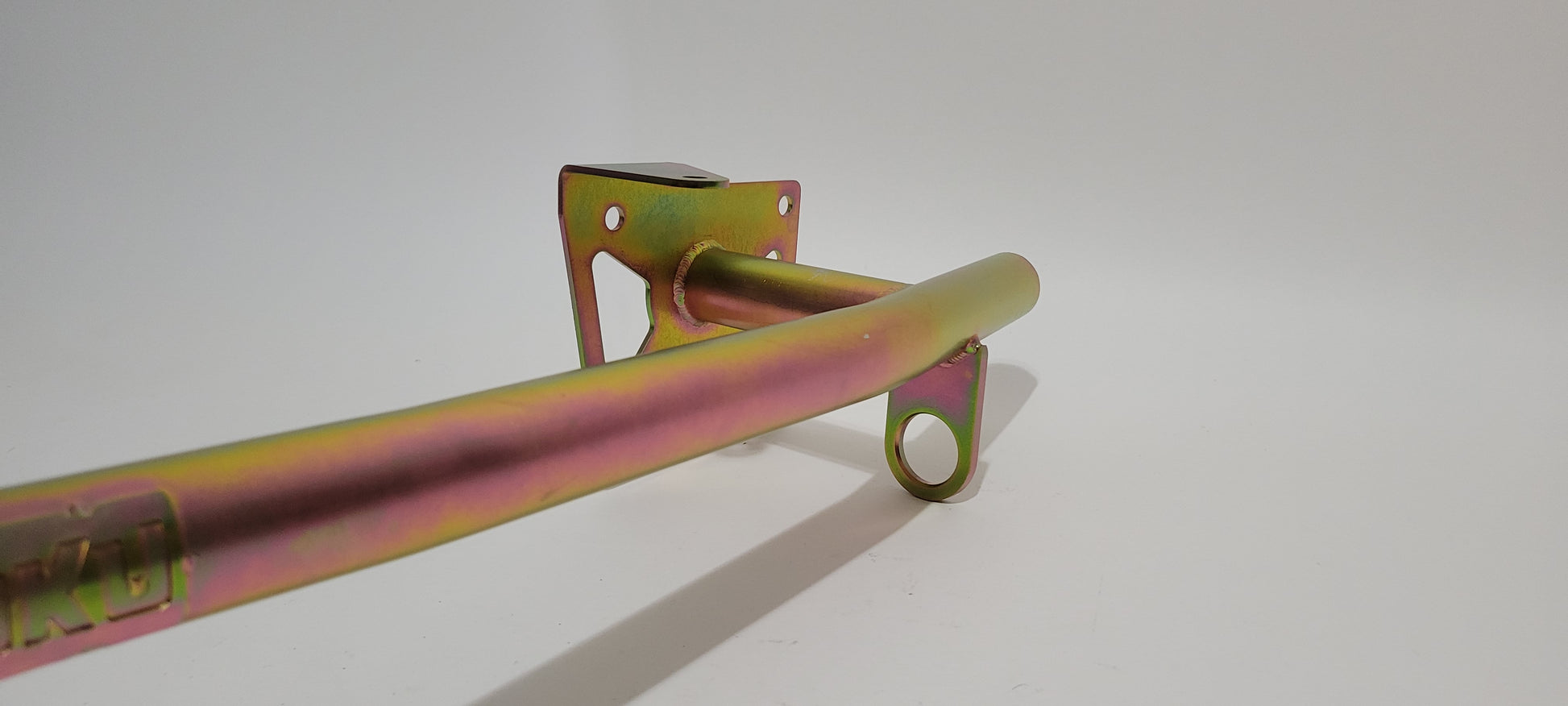

☆ Zinc Chromate yellow plating

☆ $35 flat rate shipping - up to 2 bars (front & rear)

☆ Legal in Gridlife, NASA, SCCA , Champcar Endurance Racing , WRL Endurance Racing, Luckydog Endurance Racing & more



Custom Options

☆ Dual coating Zinc + Powder

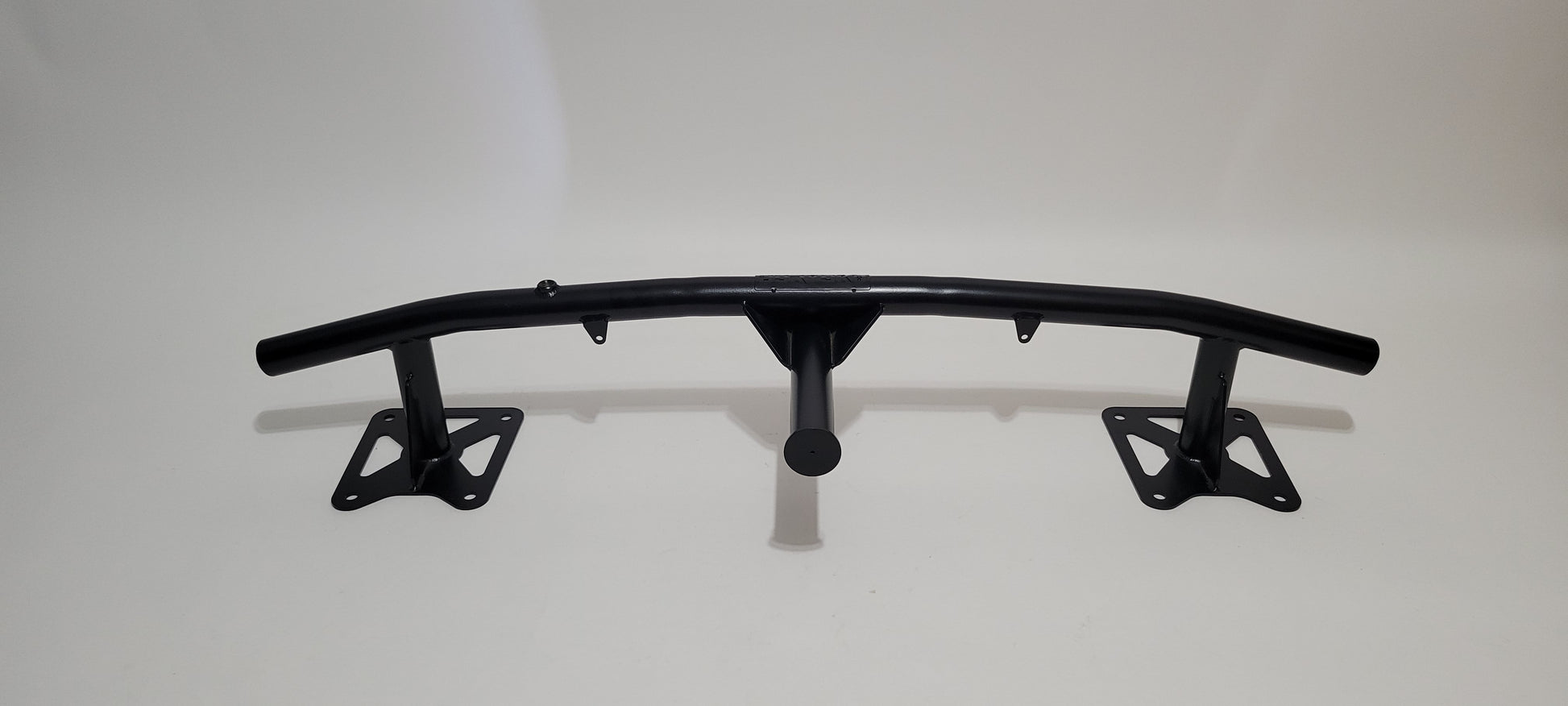

All bars come zinc chromate plated. I can powder coat matte black over zinc for $35 extra. Please note in "Special Instructions" what color you would like.

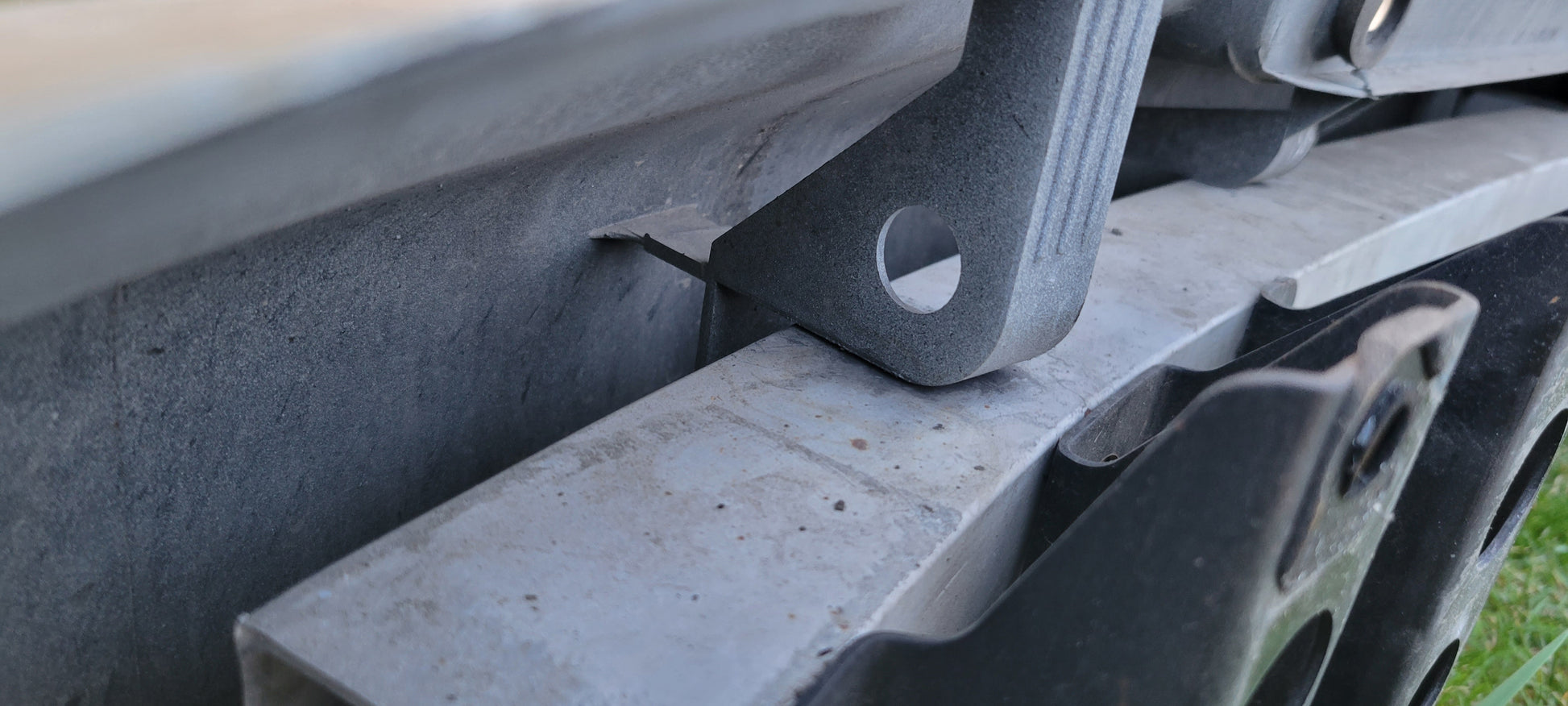

☆ Dual Mini Hooks

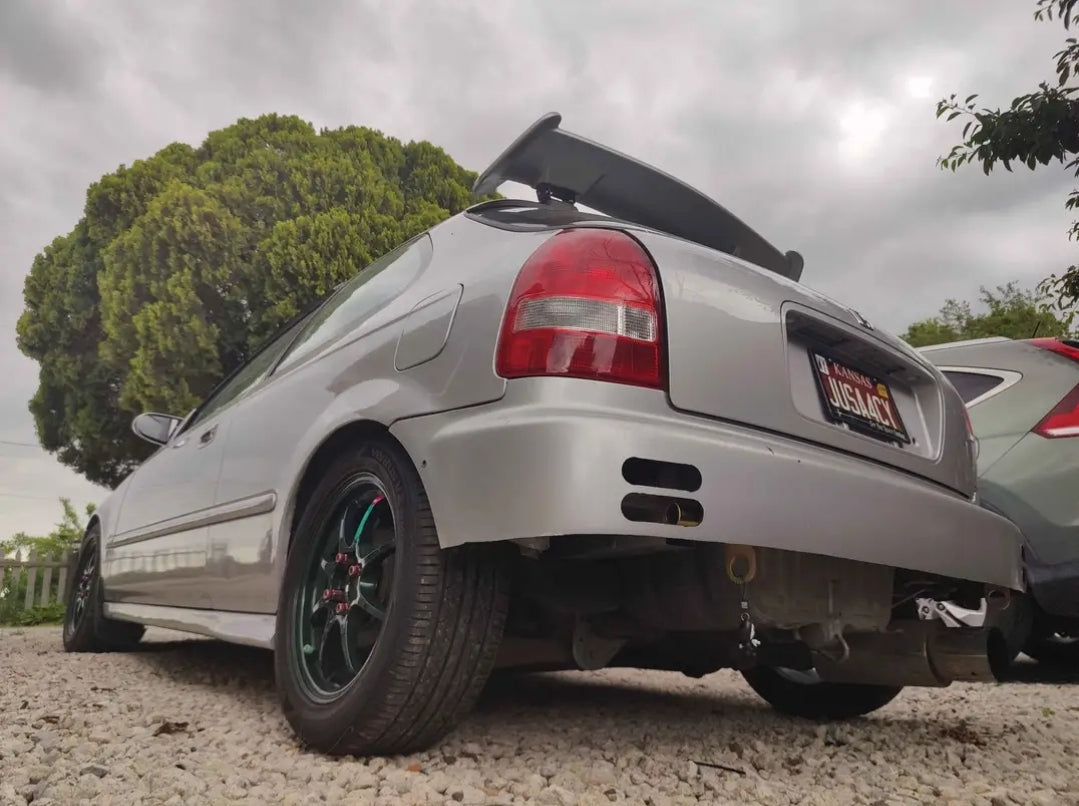

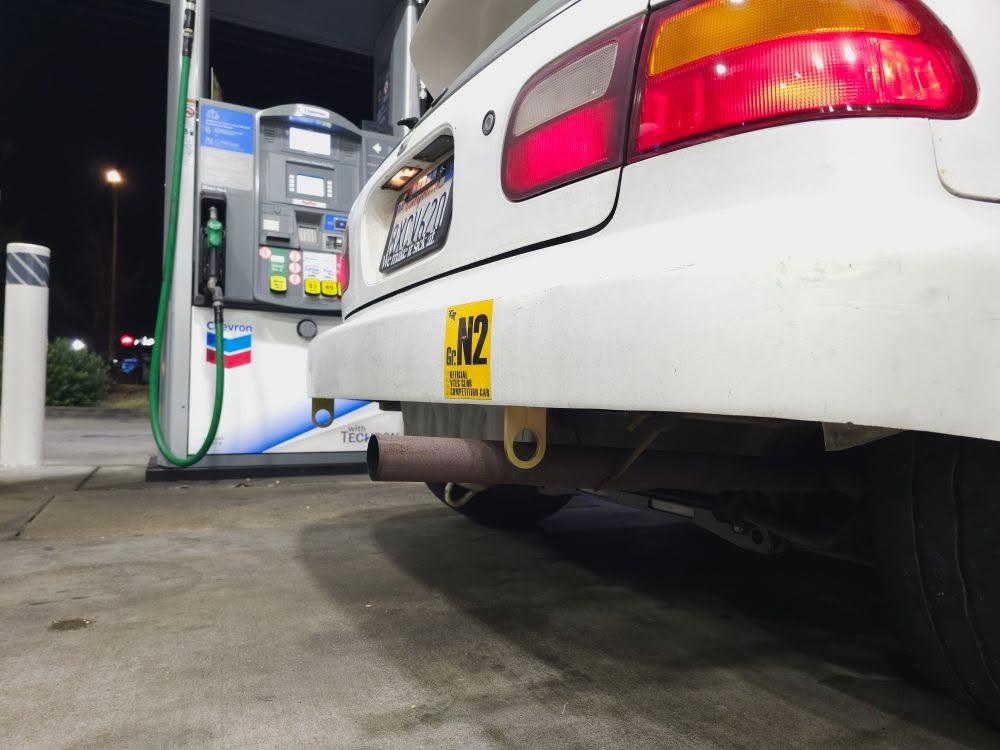

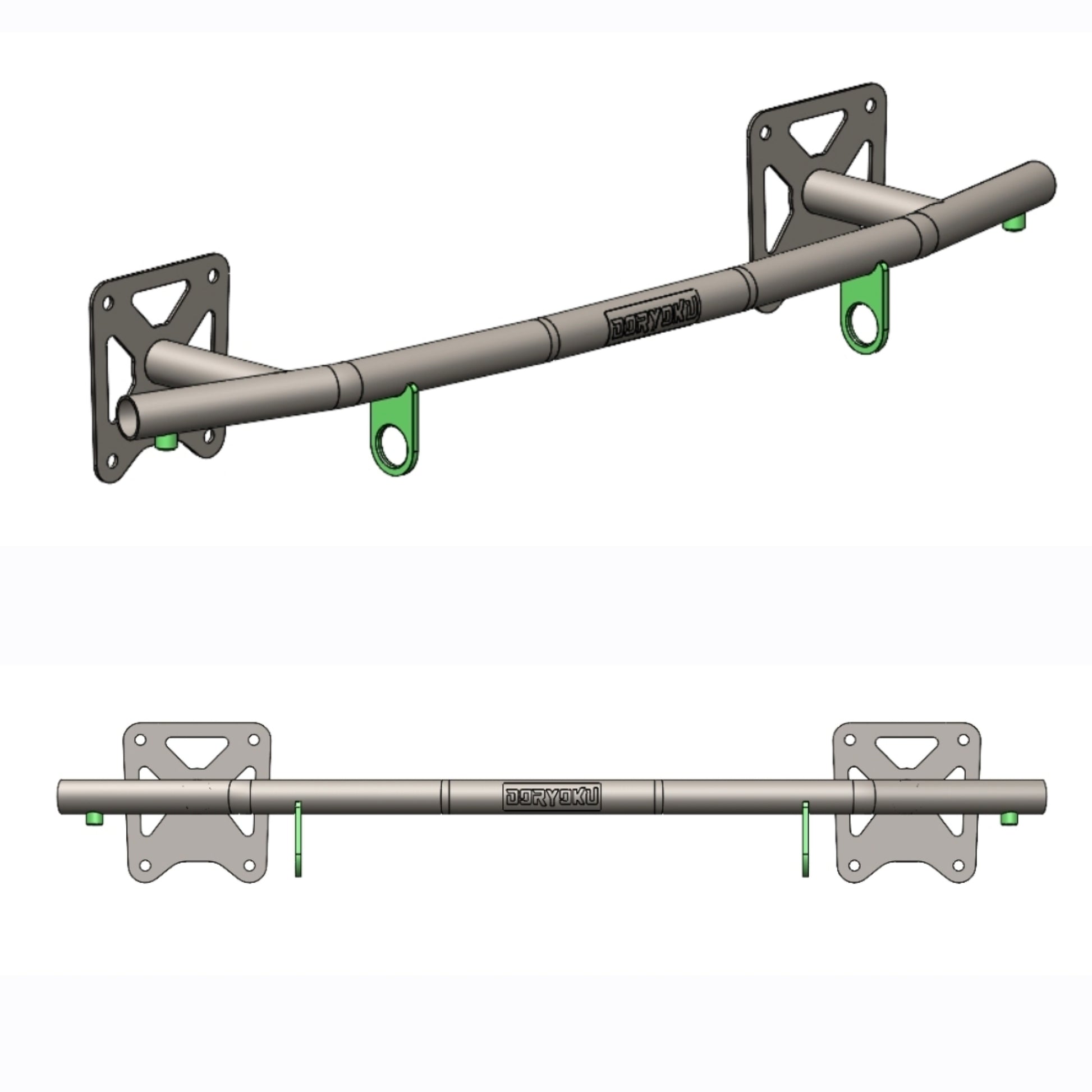

These welded hooks provide easy access tie-down for dyno or transport on trailer. Dual hooks can welded at any angle, 45*, straight back, or downward. Most commonly is downward. See photo gallery of other cars with dual hooks. Consulting will be provided before fab.

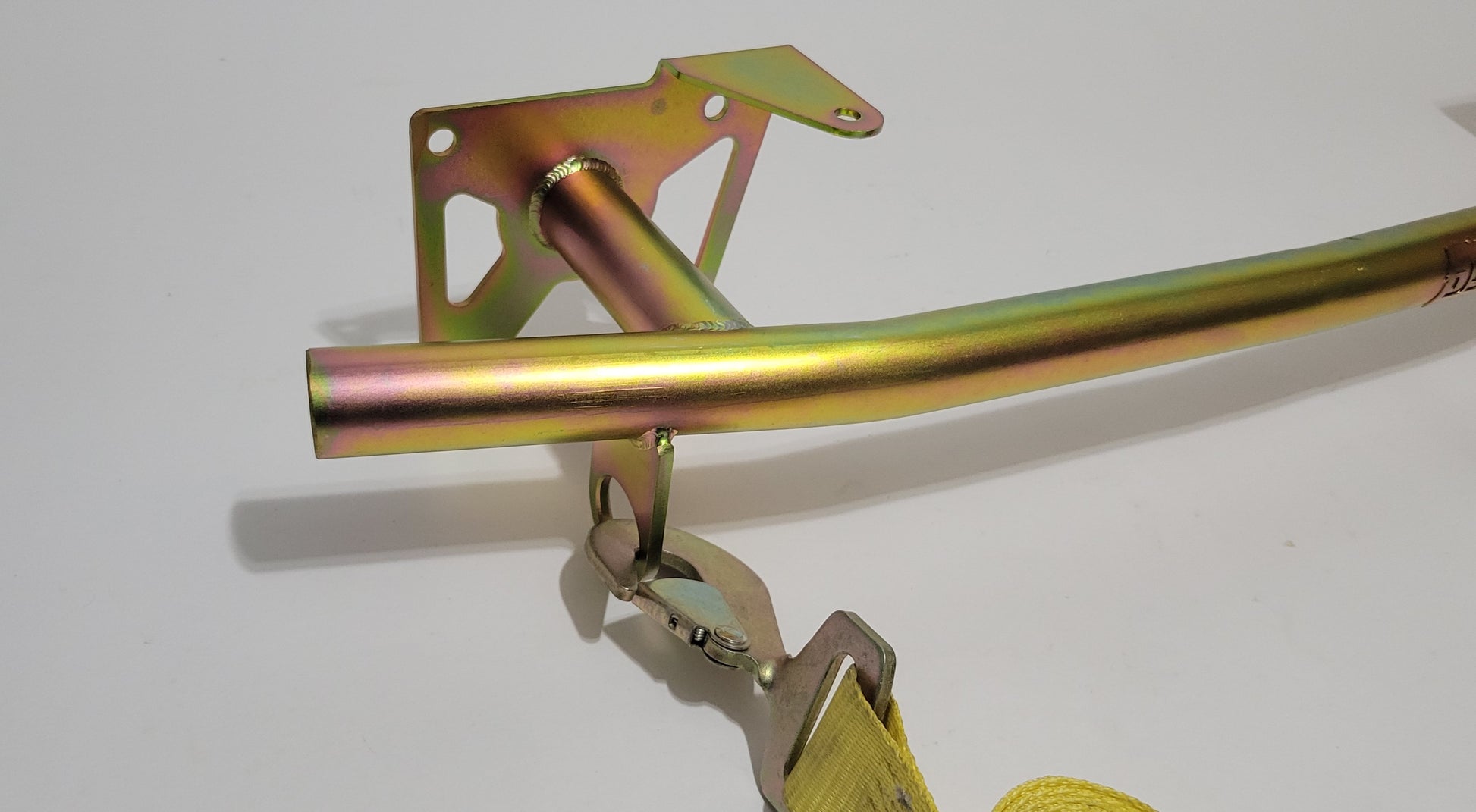

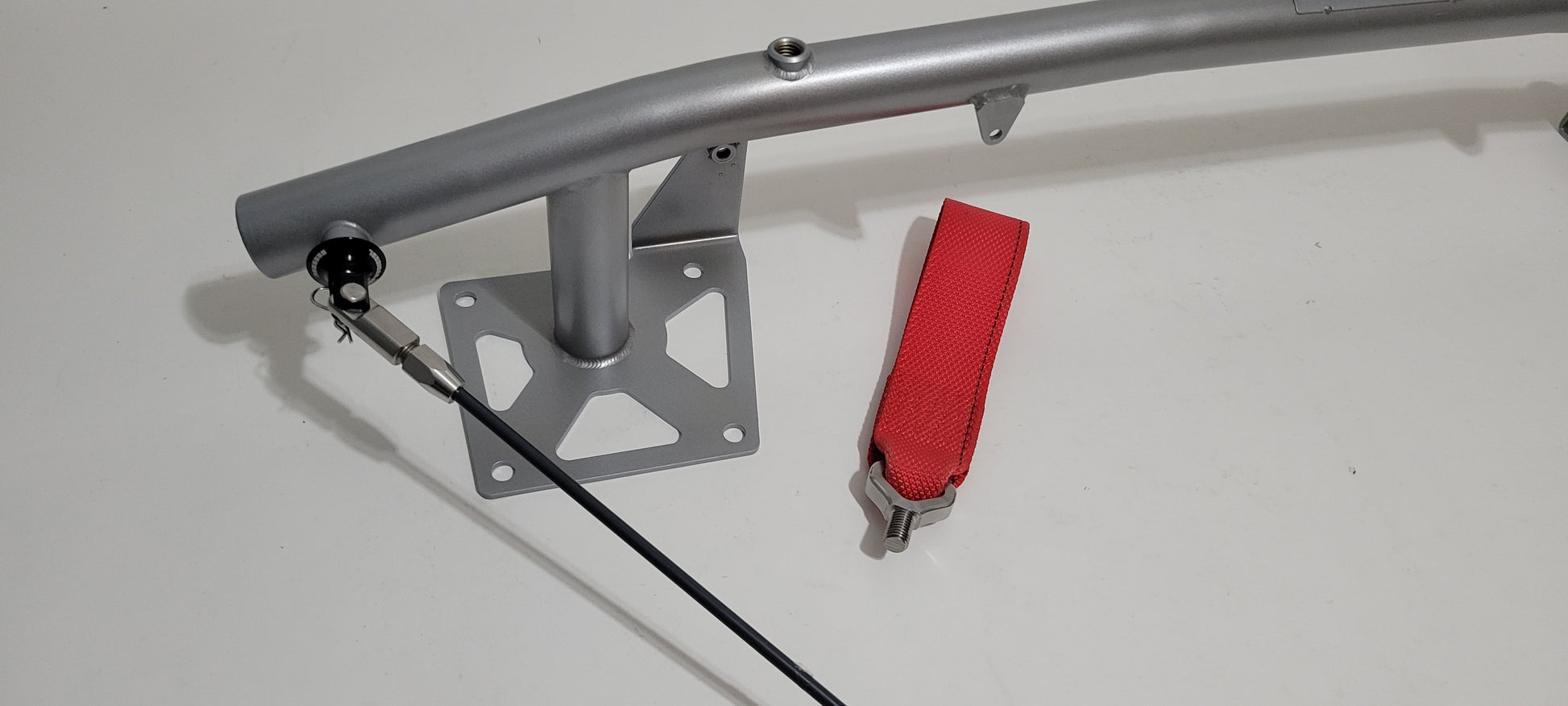

☆ Hidden Universal tow strap bracket

This welded bracket allows for universal tow straps to be bolted on. Tow strap bracket can be placed on the driver or passenger side. Consulting will be provided before fab.

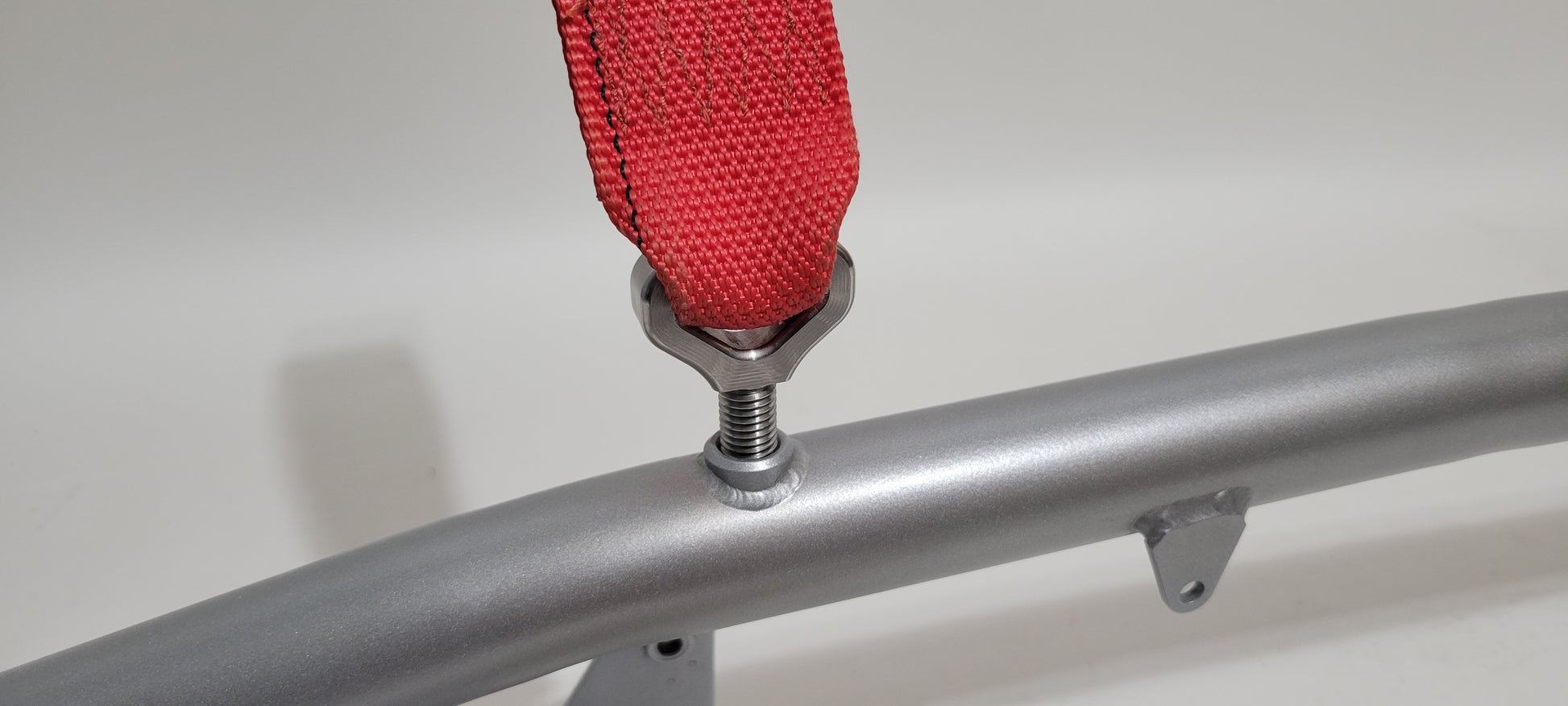

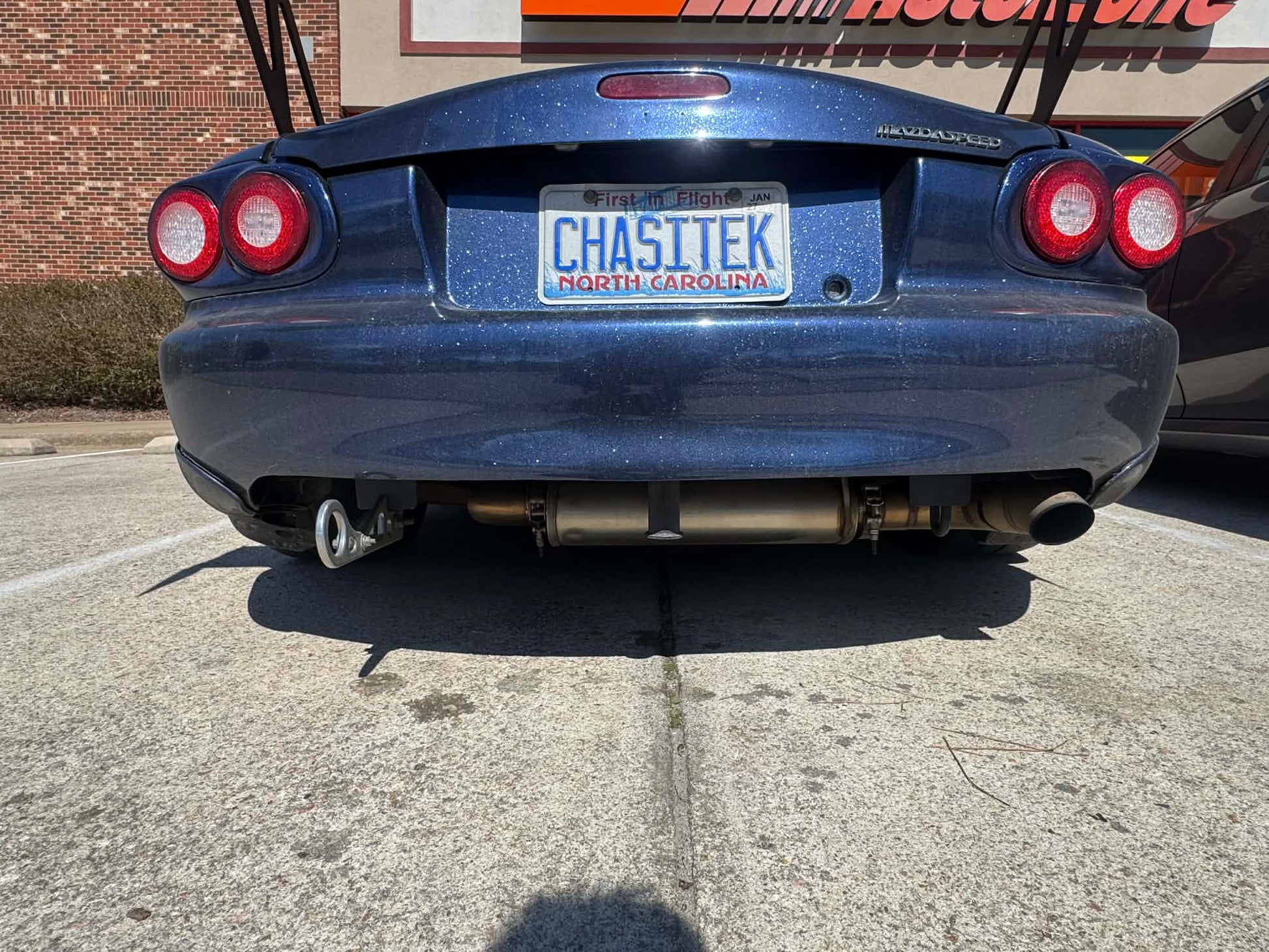

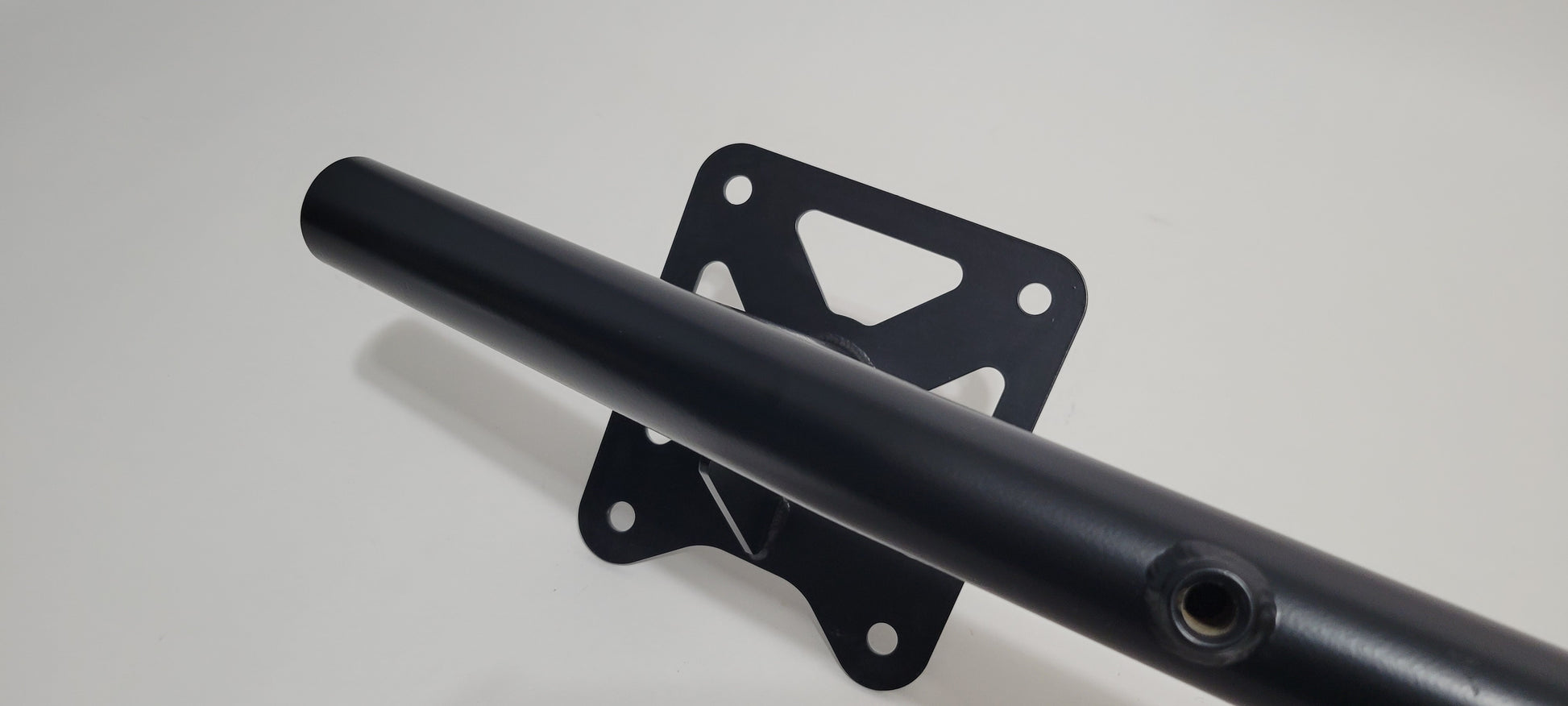

☆ Recessed CNC M12 tow bung

Welded CNC M12 bung allows for thread in style tow strap which is common on modern cars such as S2000, FRS BRZ, BMW, Corvette, Porsche, VW Audi sports cars. We can place this anywhere on the bar (passenger, driver, center behind license plate). Consulting will be provided before fab.

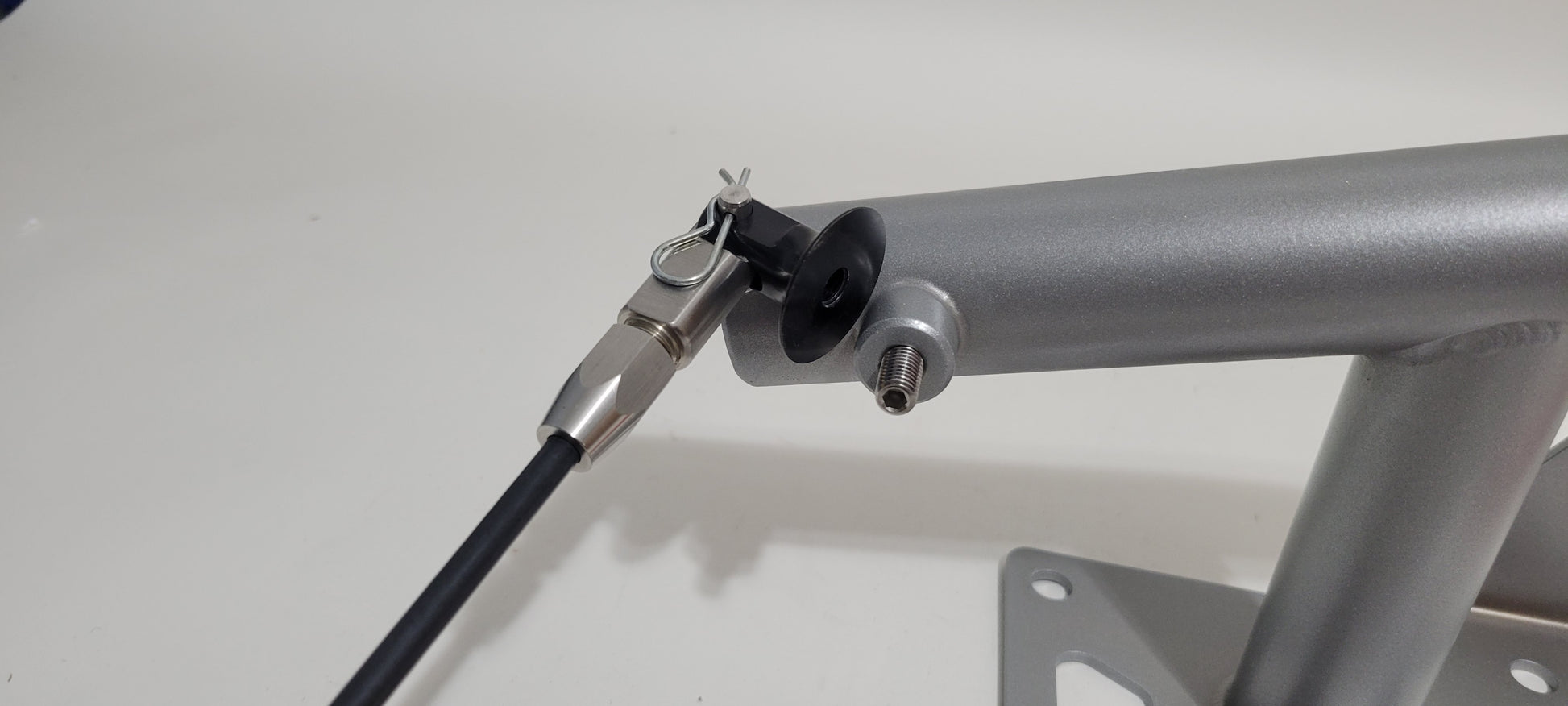

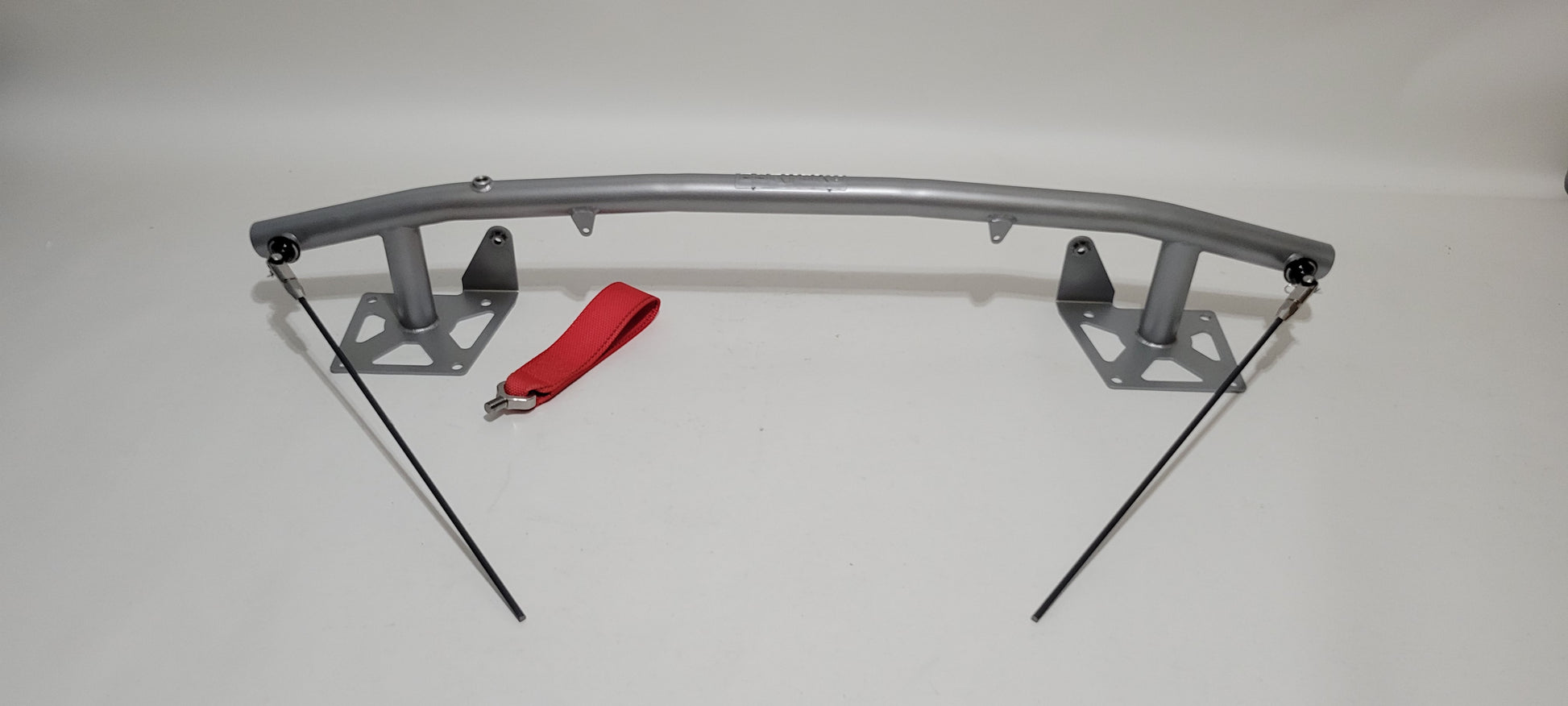

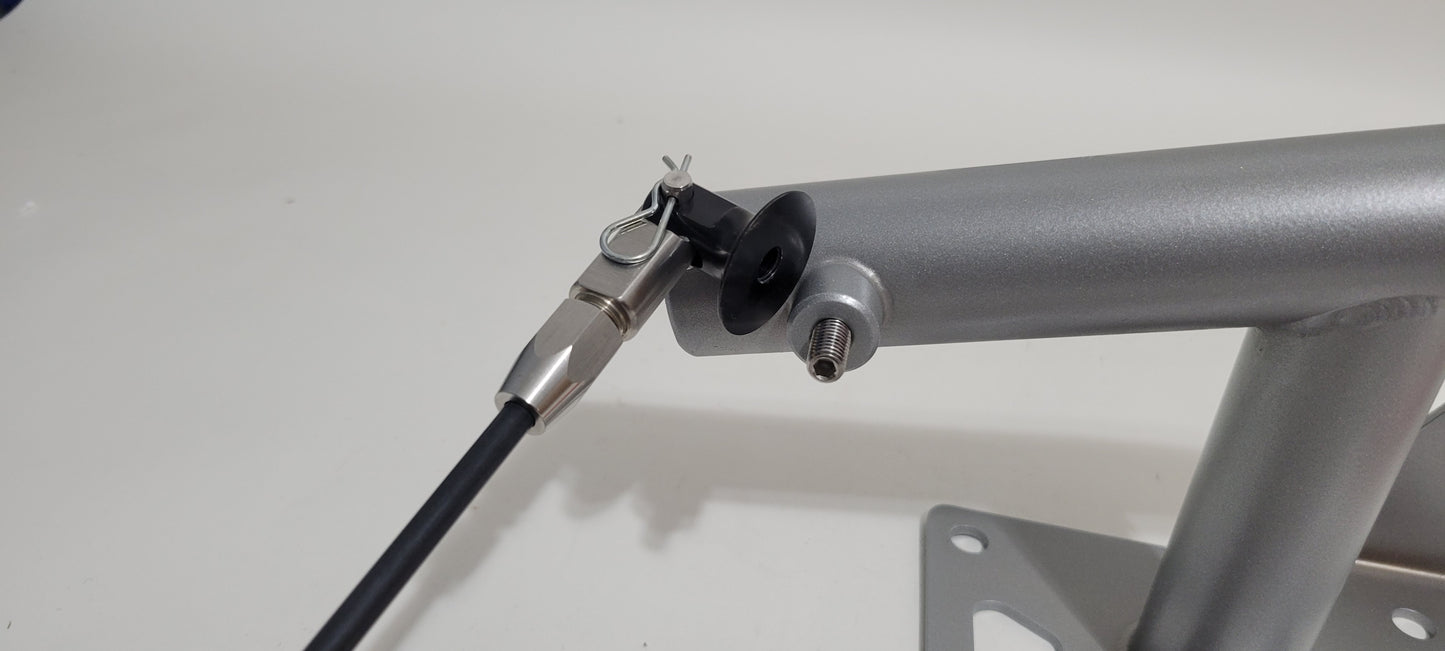

☆ Dual M8 pucks for diffuser support rods

M8 pucks make it easy to attach rear aero brackets or support rods.  M8 pucks are placed on the bar based on your setup. Consulting will be provided before fab.

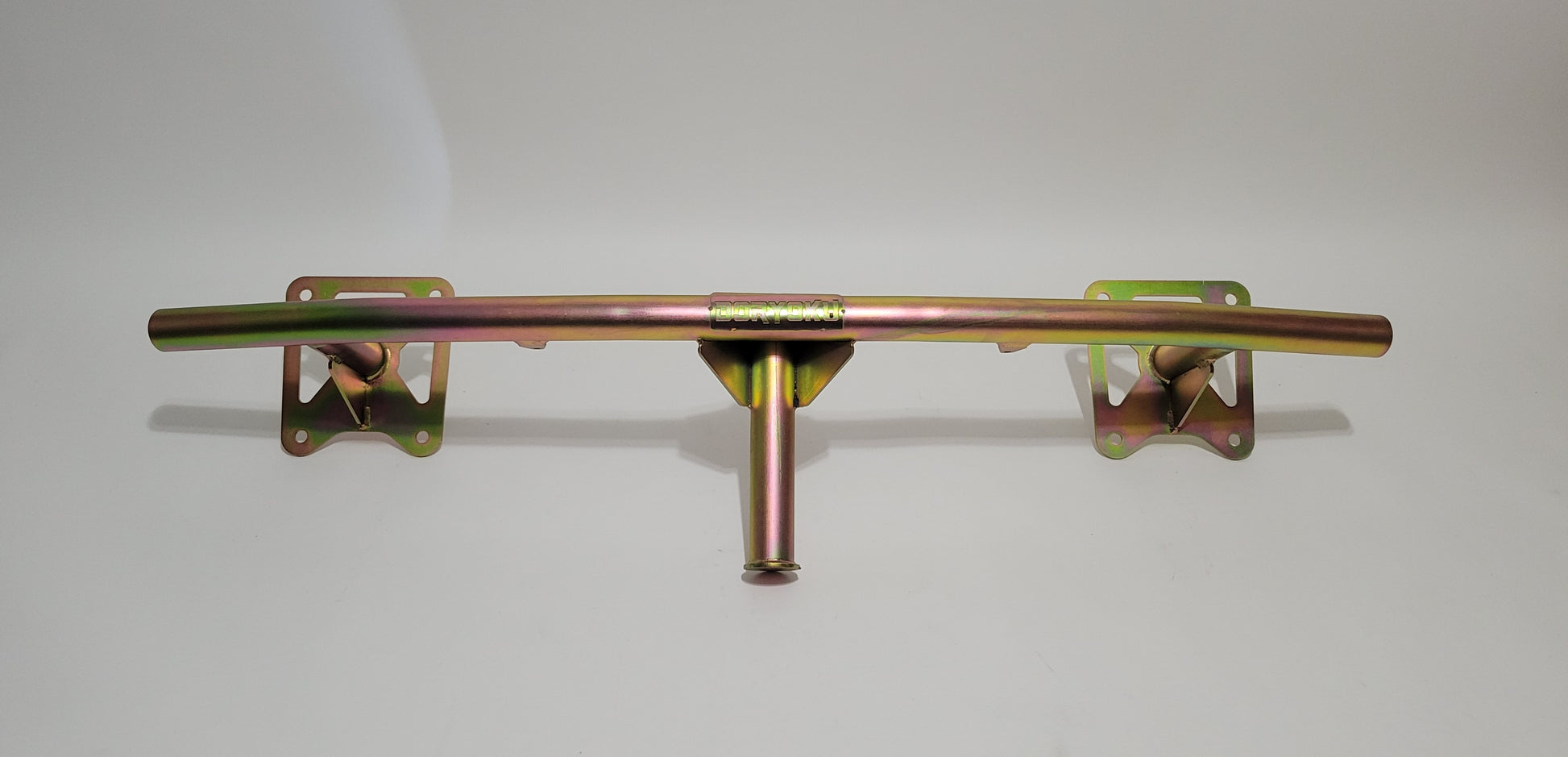

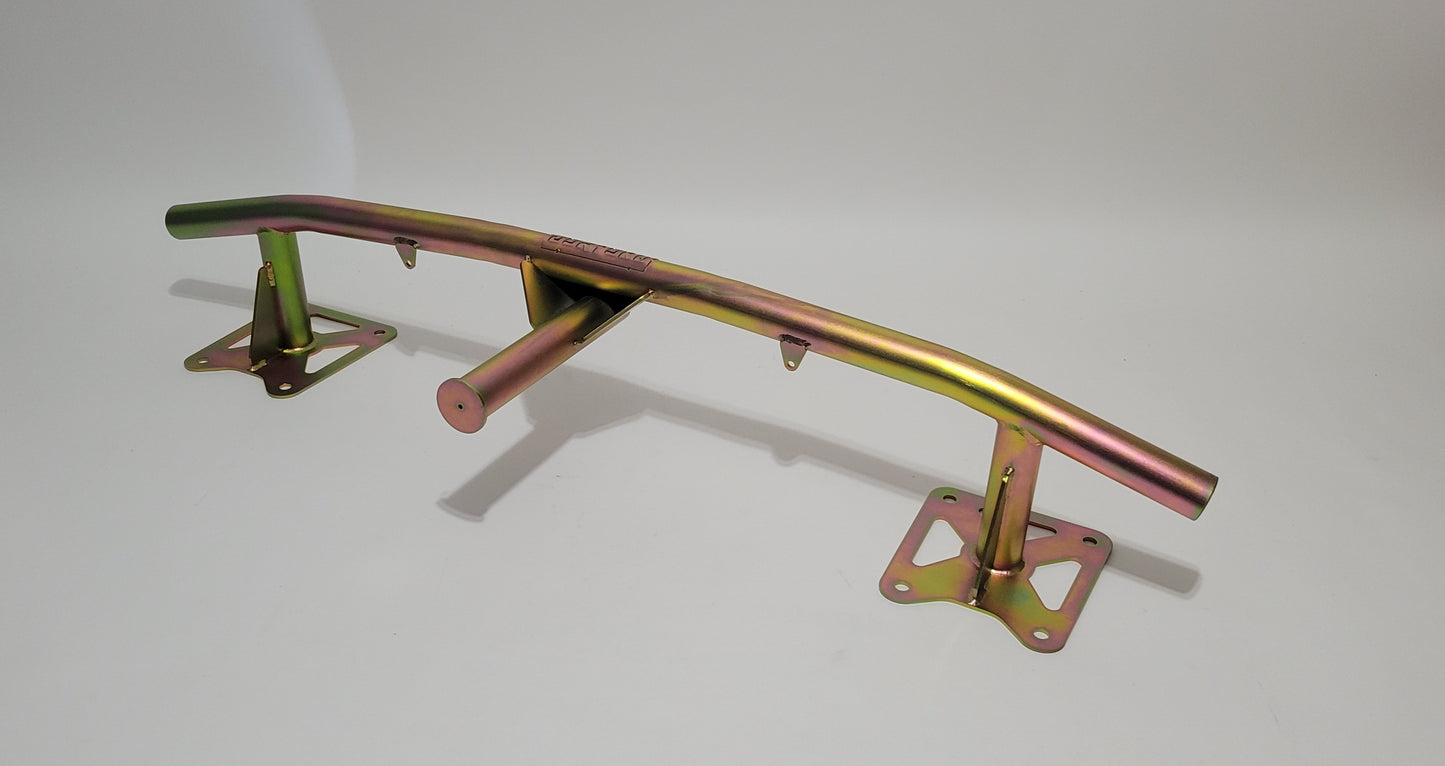

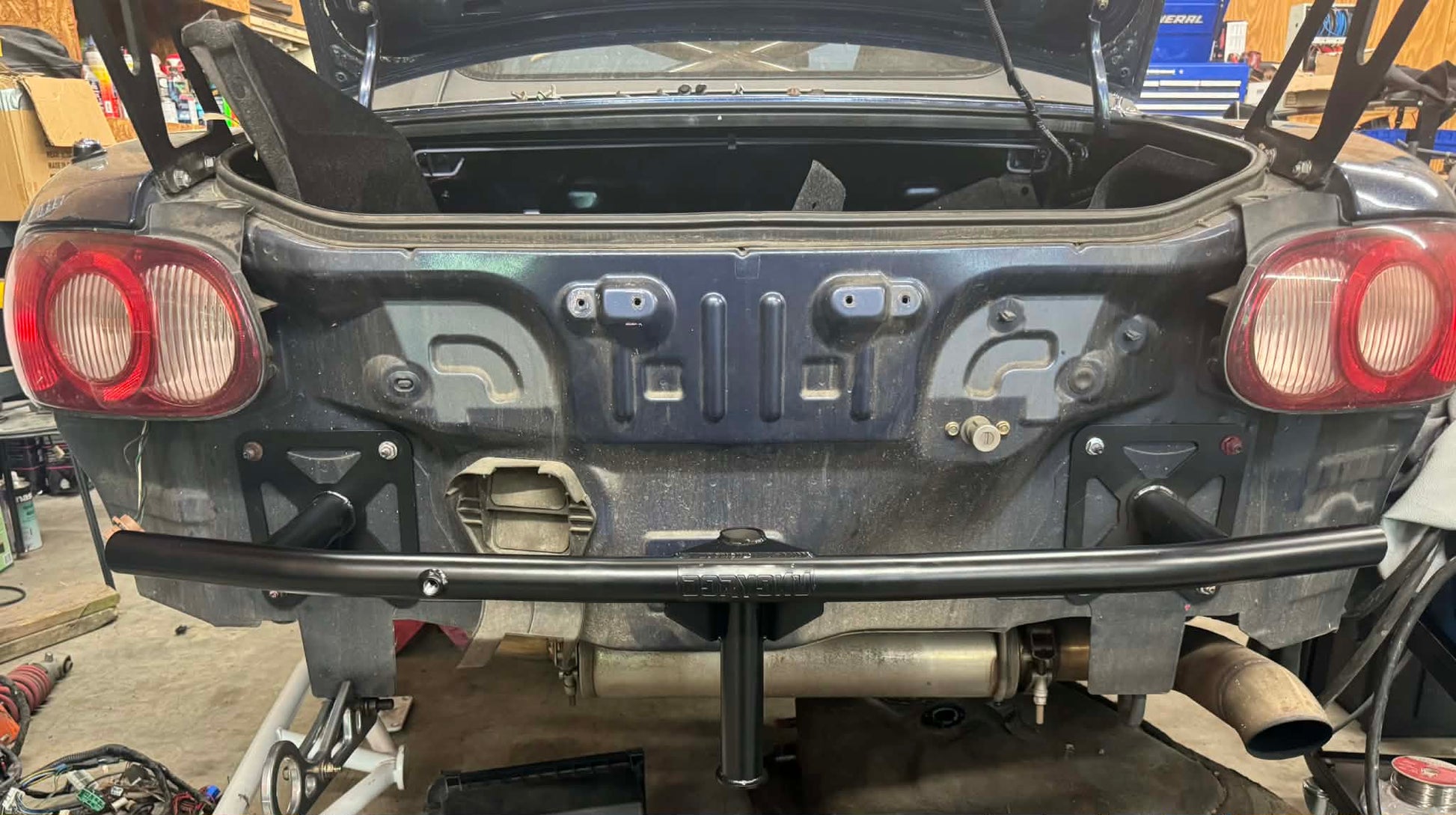

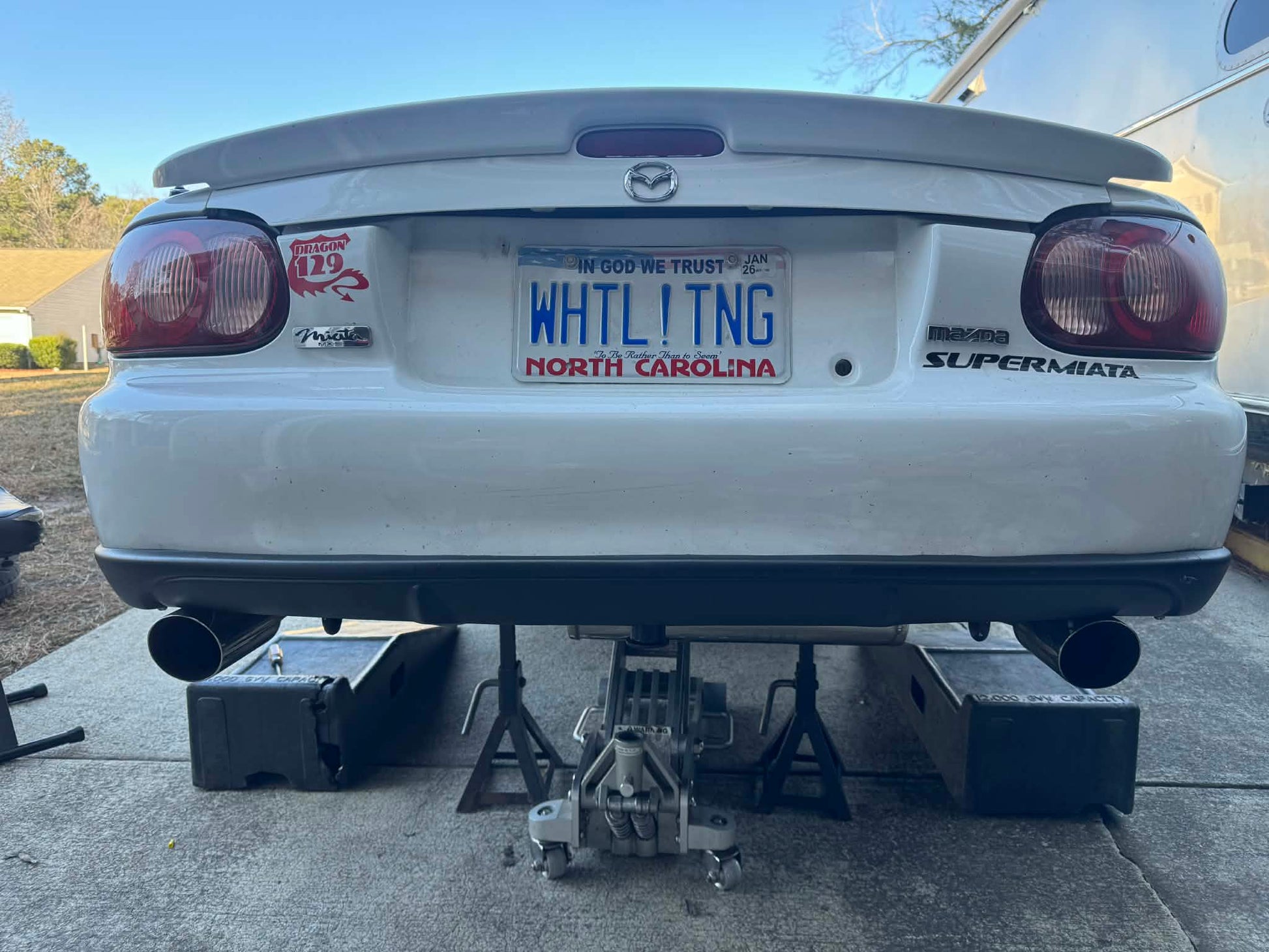

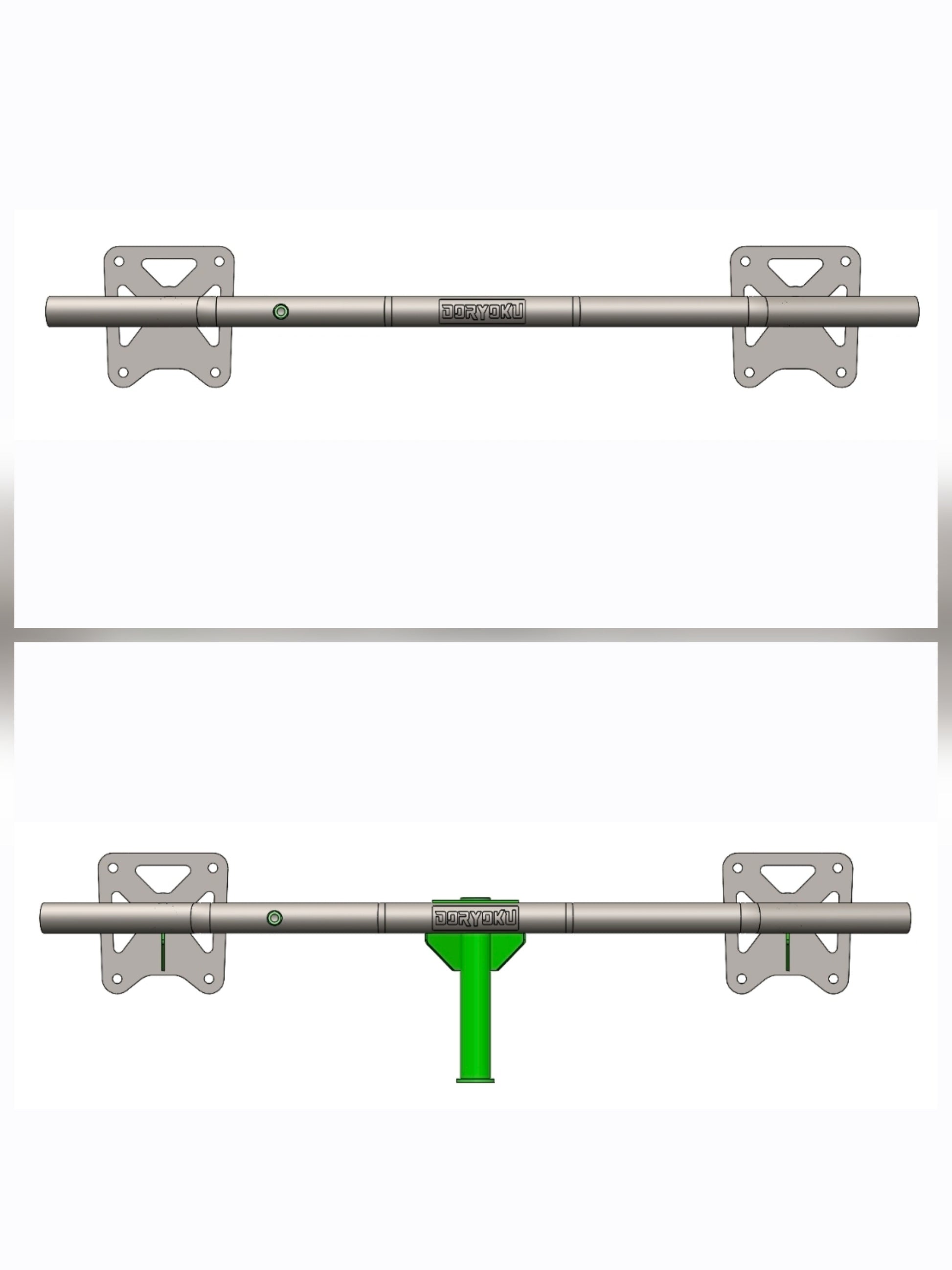

☆ Jackpoint

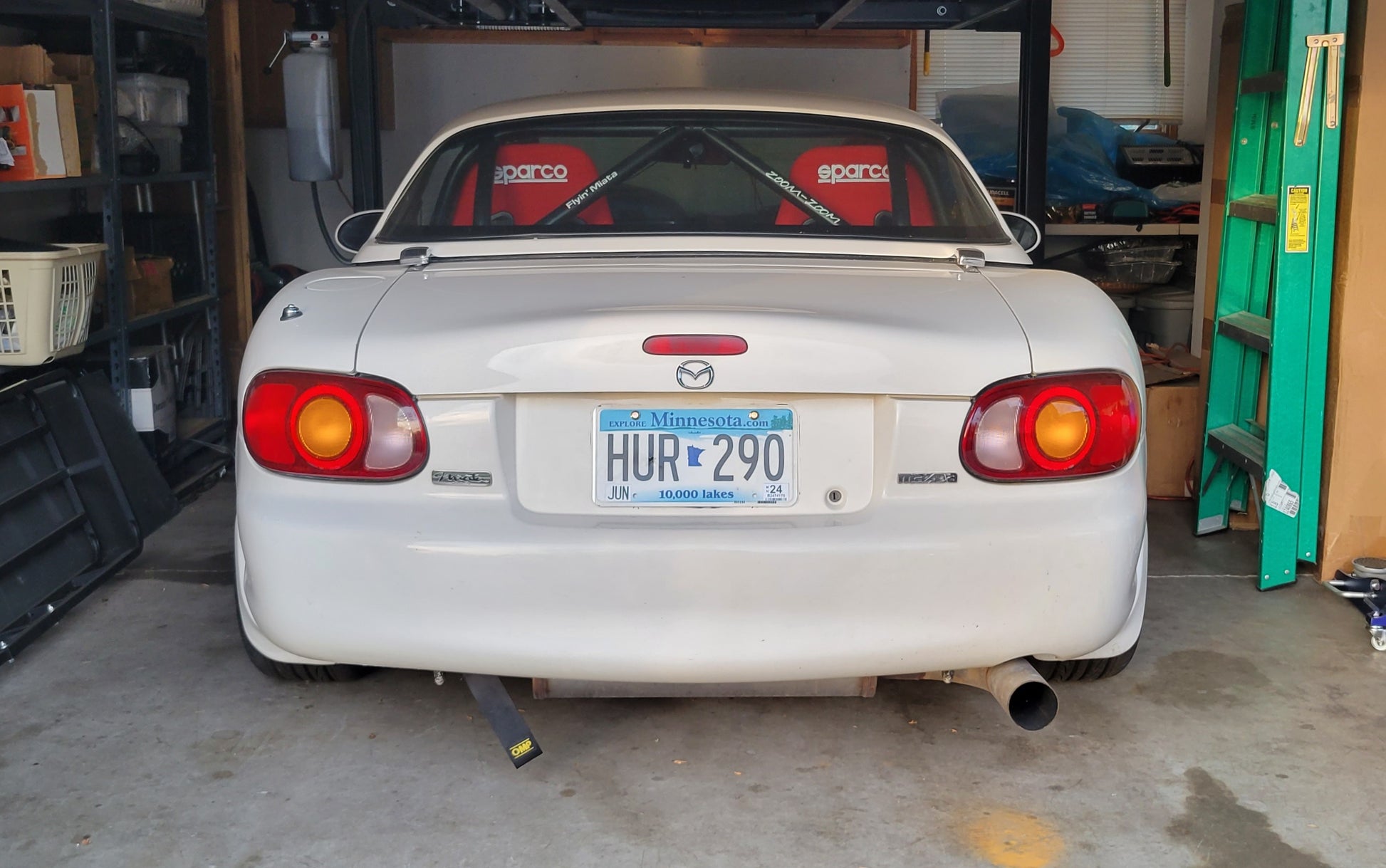

The rear diff is the traditional jacking point. The Miata diff is 40" away from the bumper. Most floor jacks are going to have 20-24" of reach (jack pad to lower handle). Super-long floor jacks will have 30-34" of reach but are $500 & weigh over +80lbs. You have to get down to eye level with the diff line up jack; then you still have to go through the motion of doing “micro-pumps” before the car is high enough to get any decent travel from the jack handle. This jackpoint tube eliminates those annoyances while keeping the visual footprint & bumper trimming minimal. If you work on your car constantly, auto-x or track you'll appreciate the ease of working on your car. Standard tube length of 7" and the jack pad extends ¼” below the bumper. Custom length jackpoint are available at no-charge.

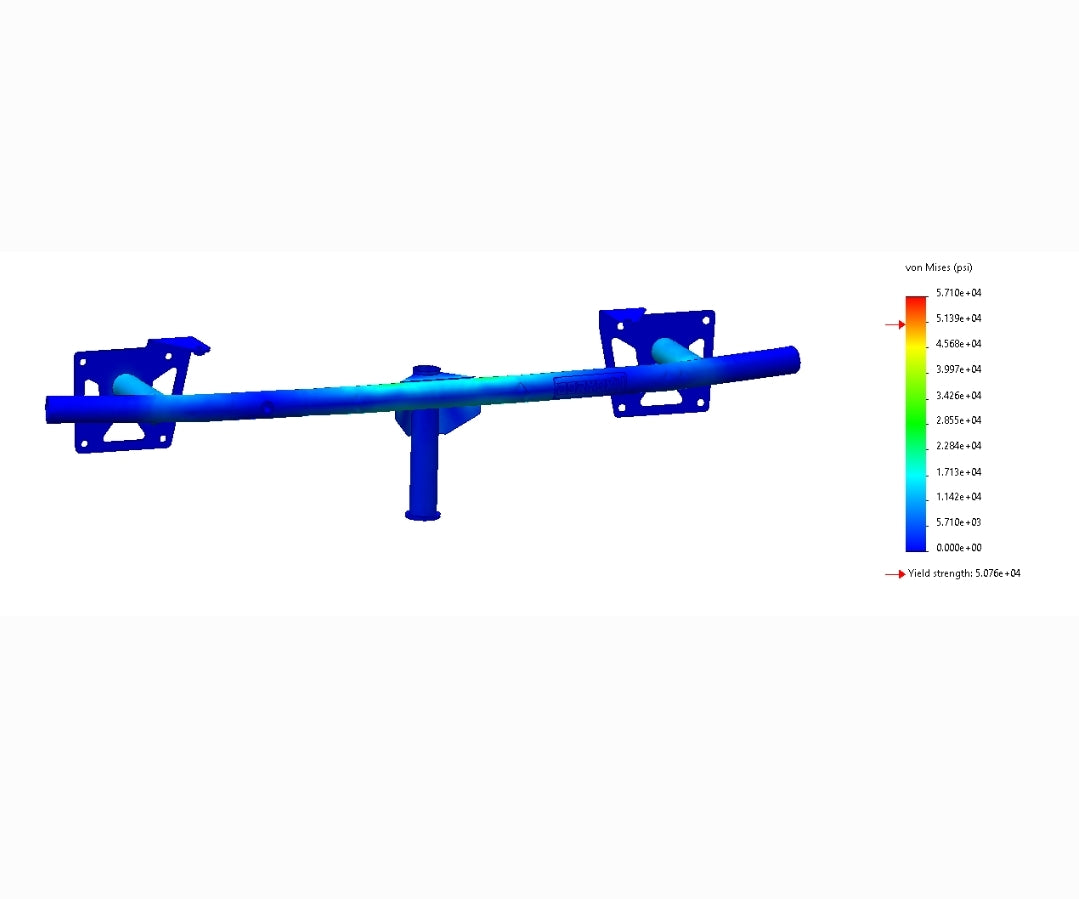

Engineering Design Notes

Maximum Protection

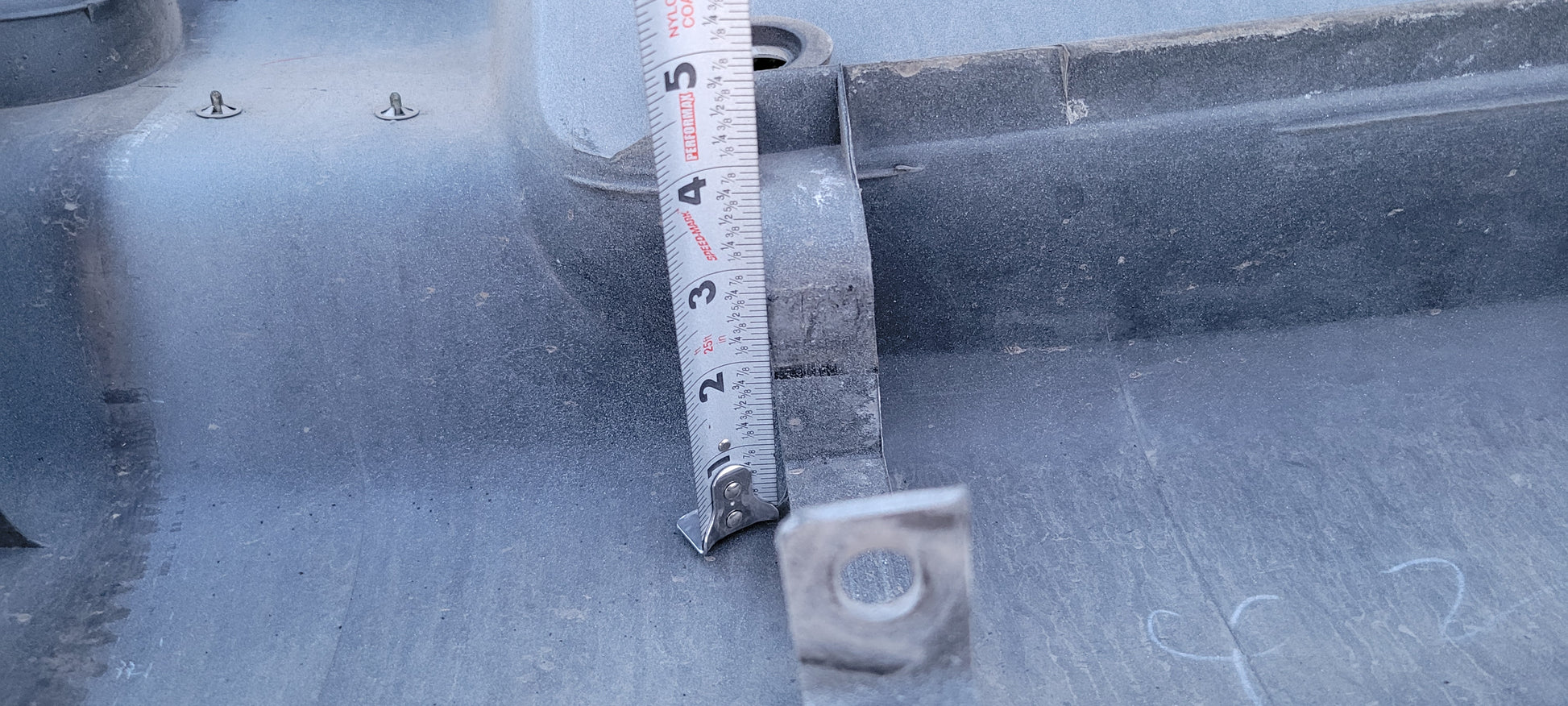

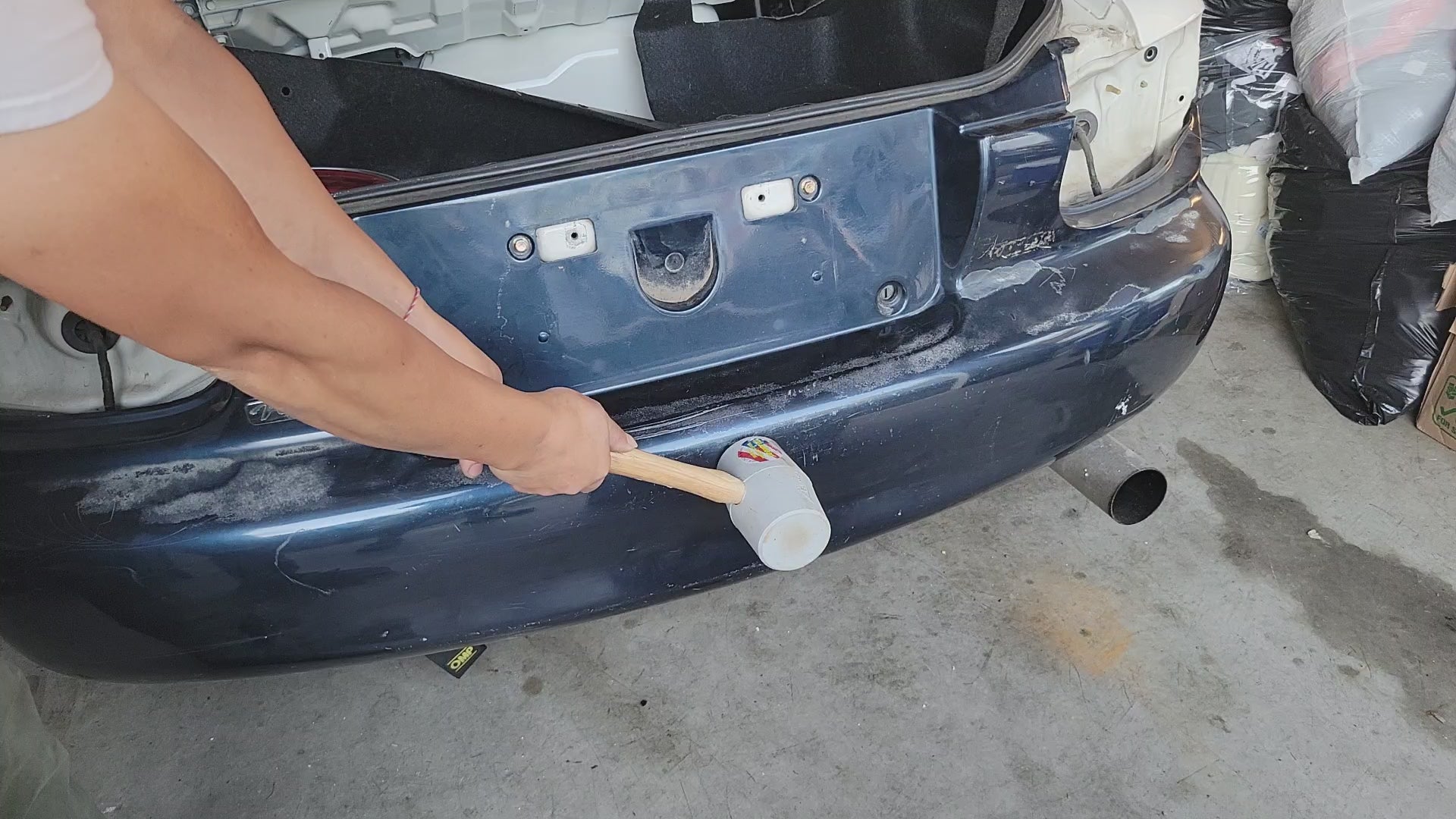

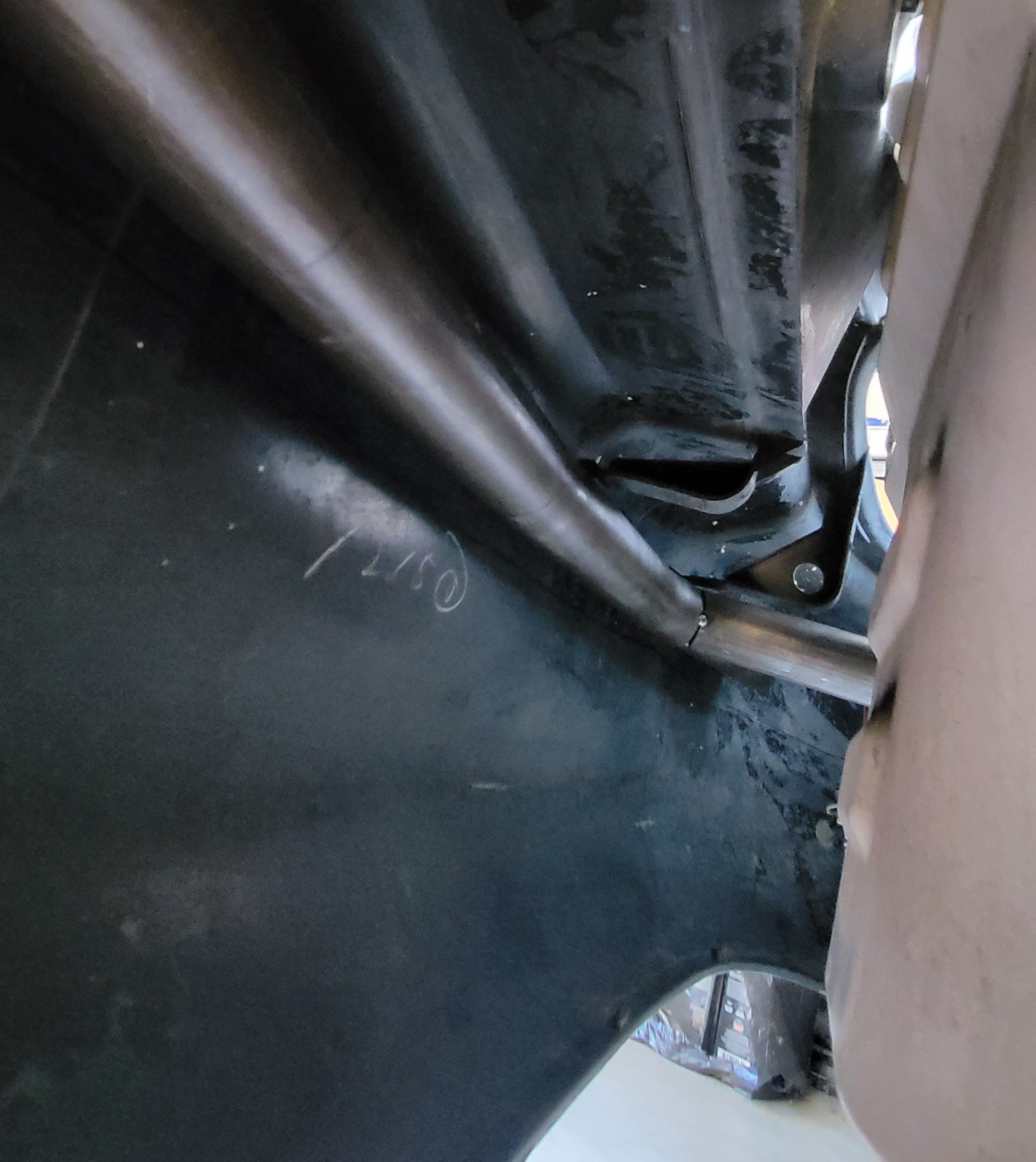

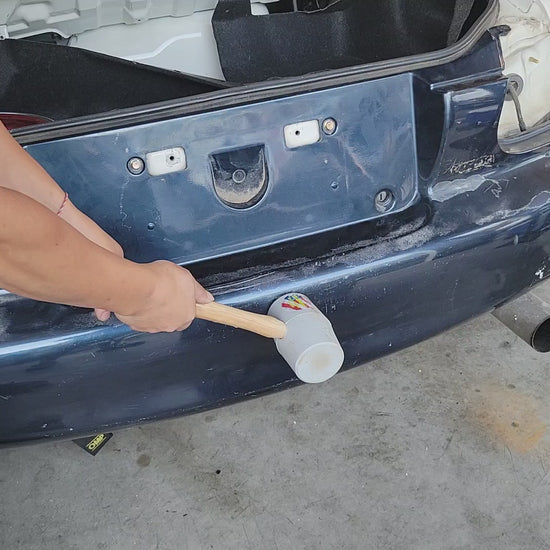

The factory plastic tub leaves a 2” gap between bumper and tub. During contact the bumper pushed in resulting in damaged bumpers and bumper mounting tabs tearing off. We designed our bar to hug tightly behind the bumper cover so there is no movement of the bumper during contact. See tech link tab below.

Jackpoint

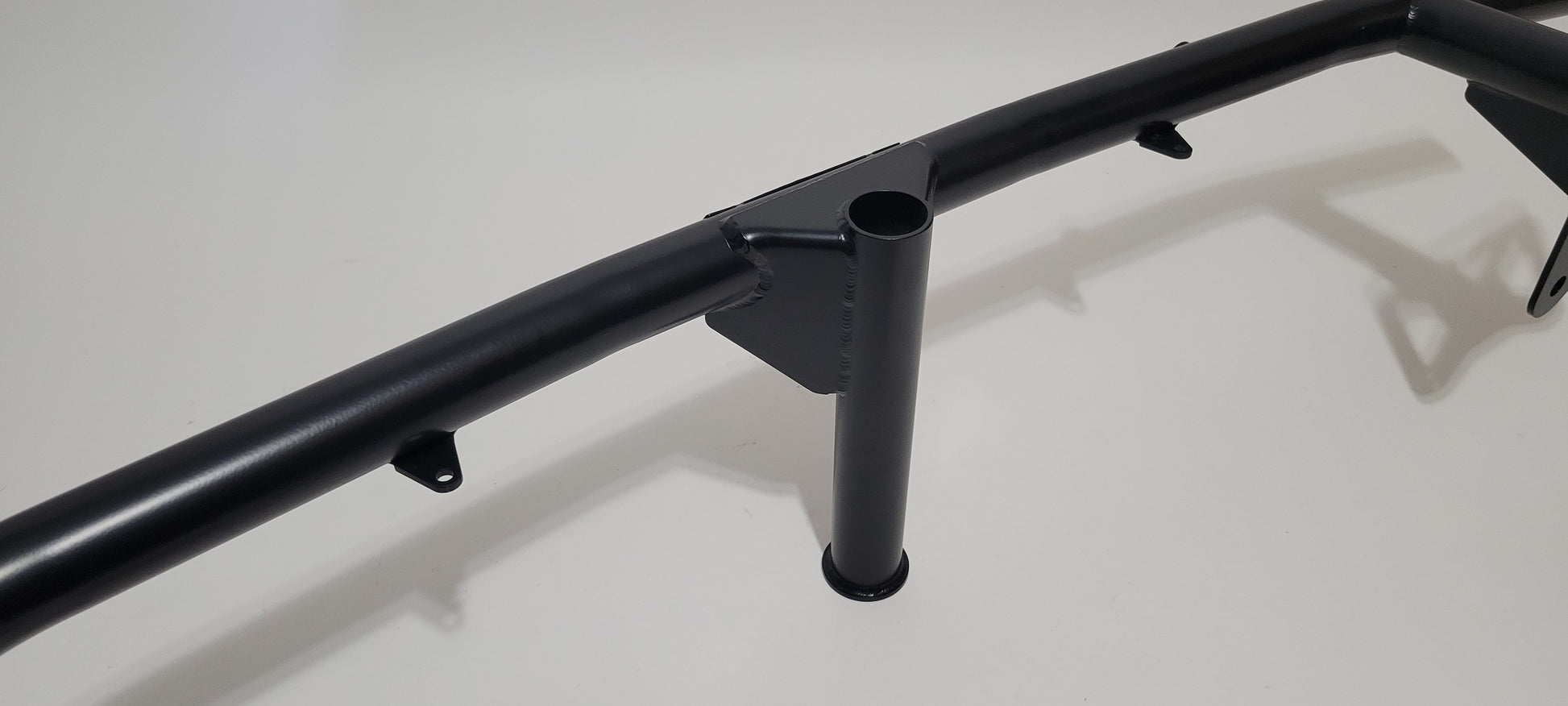

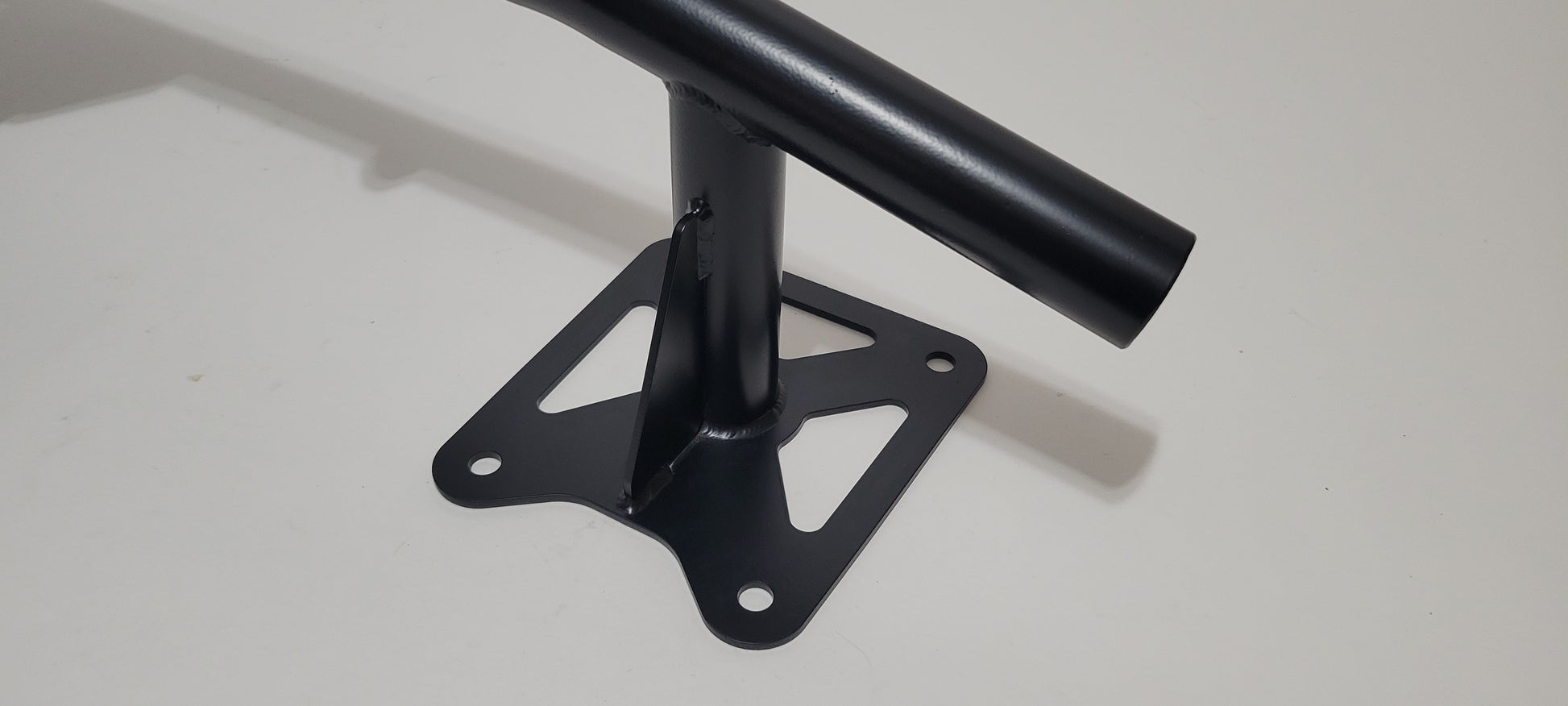

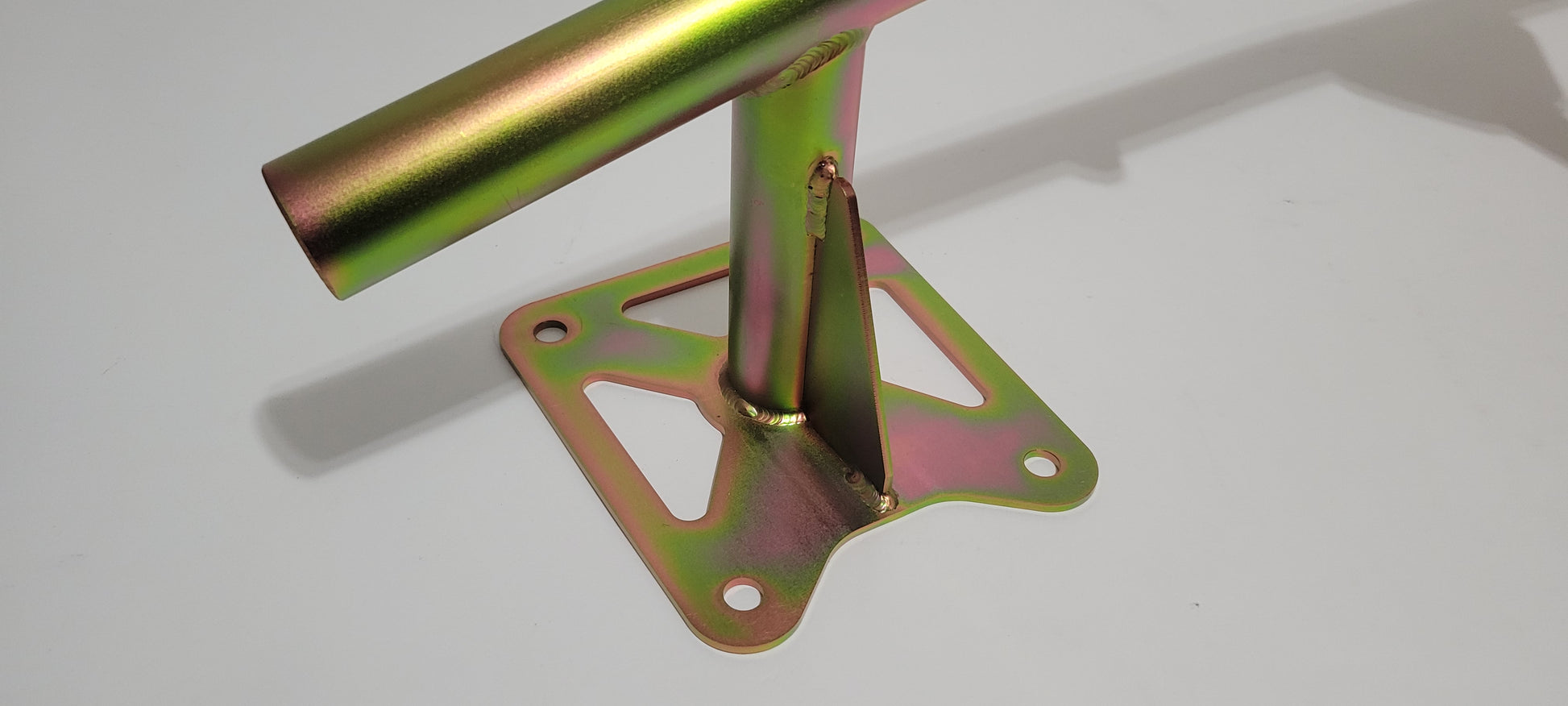

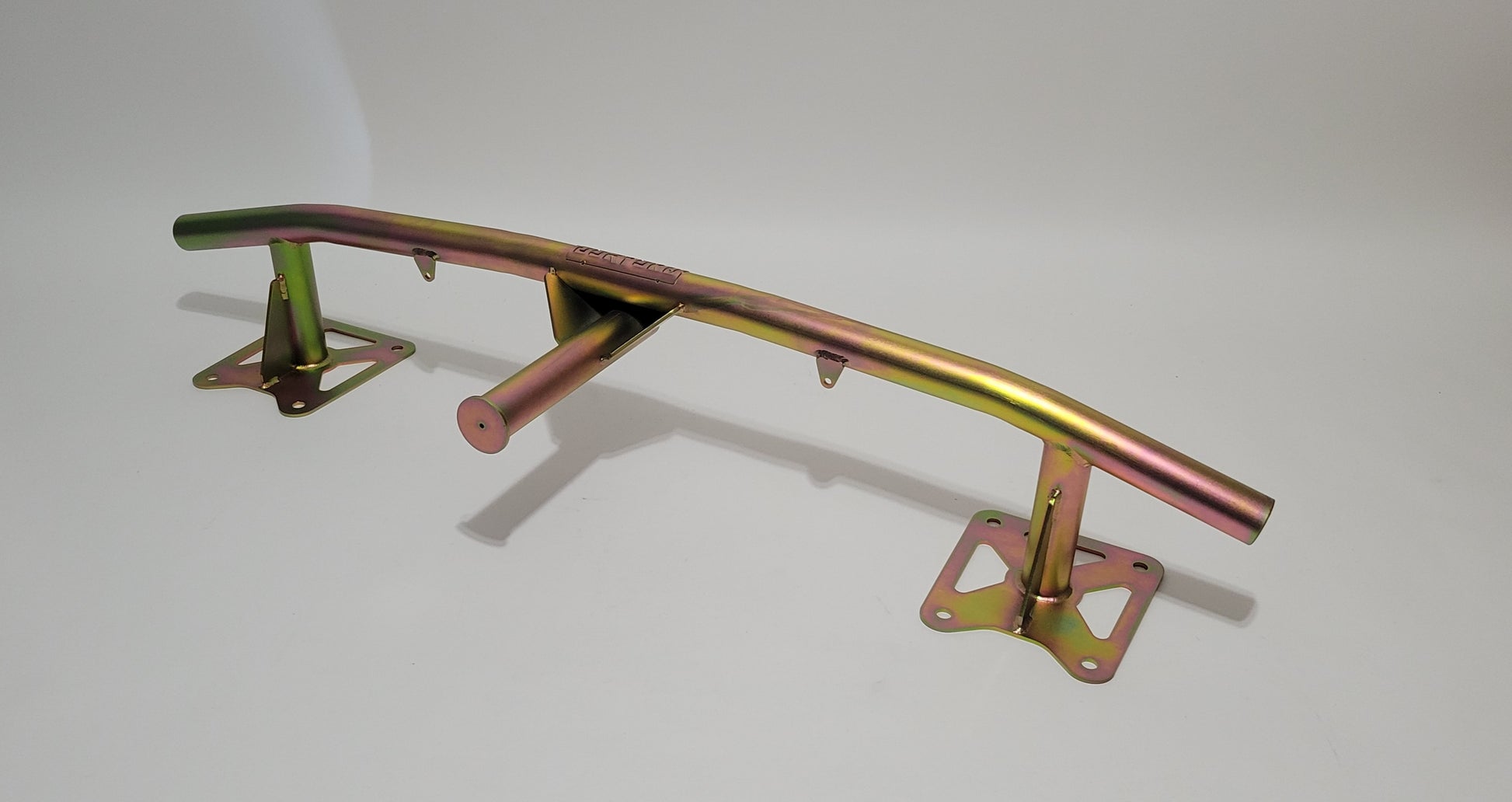

Our jackpoint is engineered for strength with minimal weight. Other companies use triangular jackpoint which add excess weight. We designed a laser cut, CNC bend formed bracket that disperses the load to the bar. The tubular bar with jackpoint still weighs 1 lbs. less than the stock unit.
