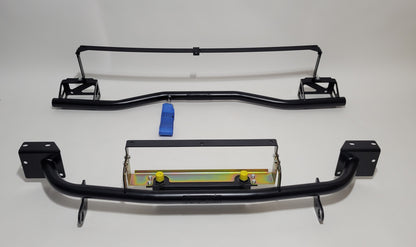

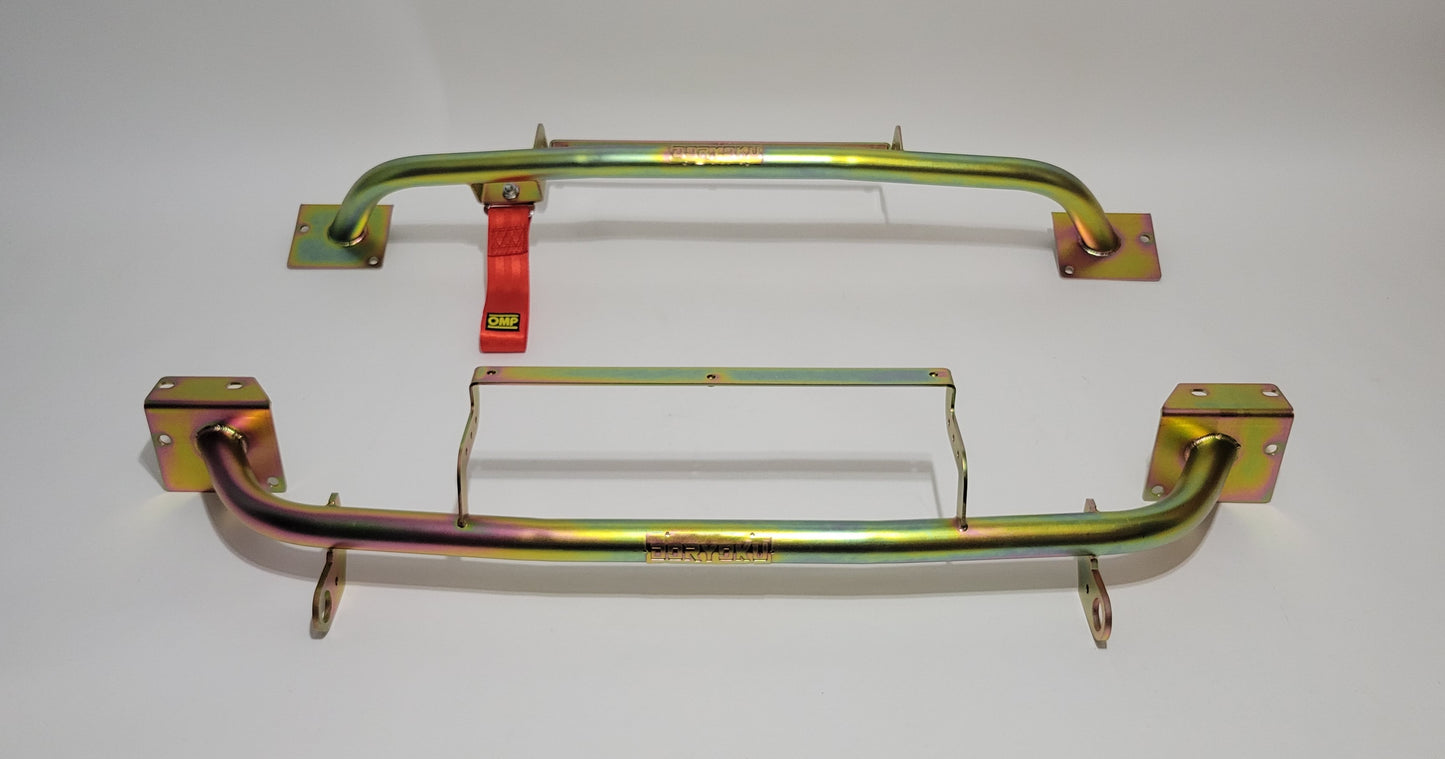

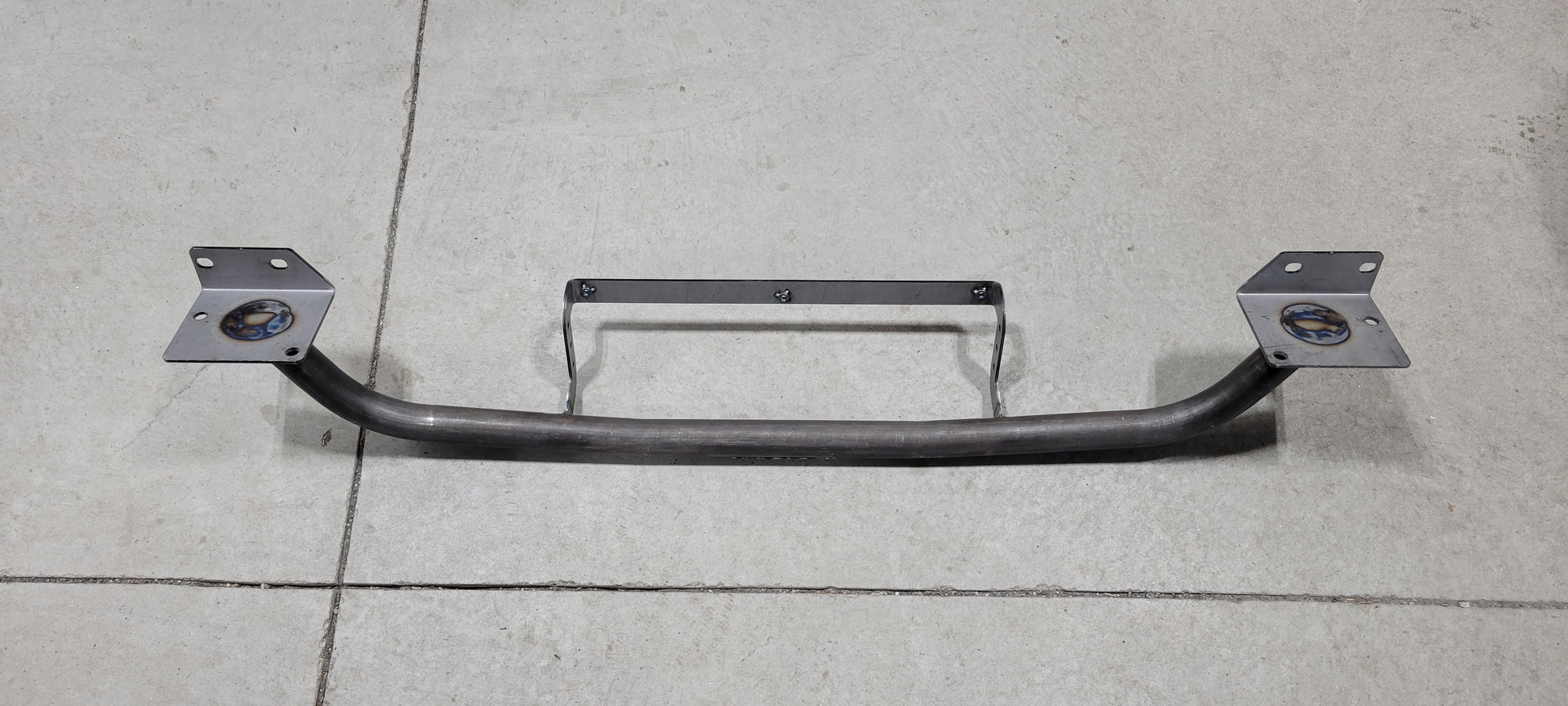

CRX Civic Front Bar

Doryoku Race Bar’s philosophy of use & design

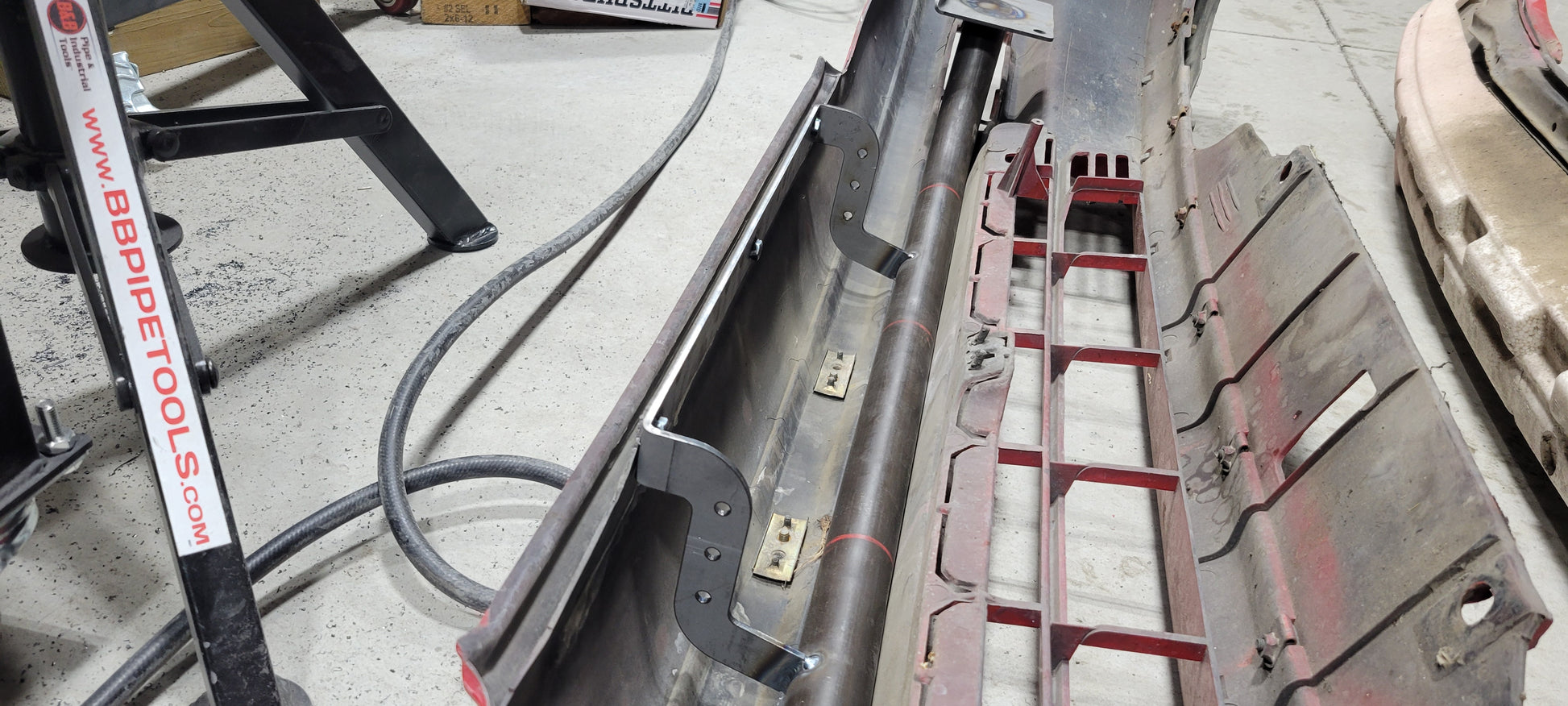

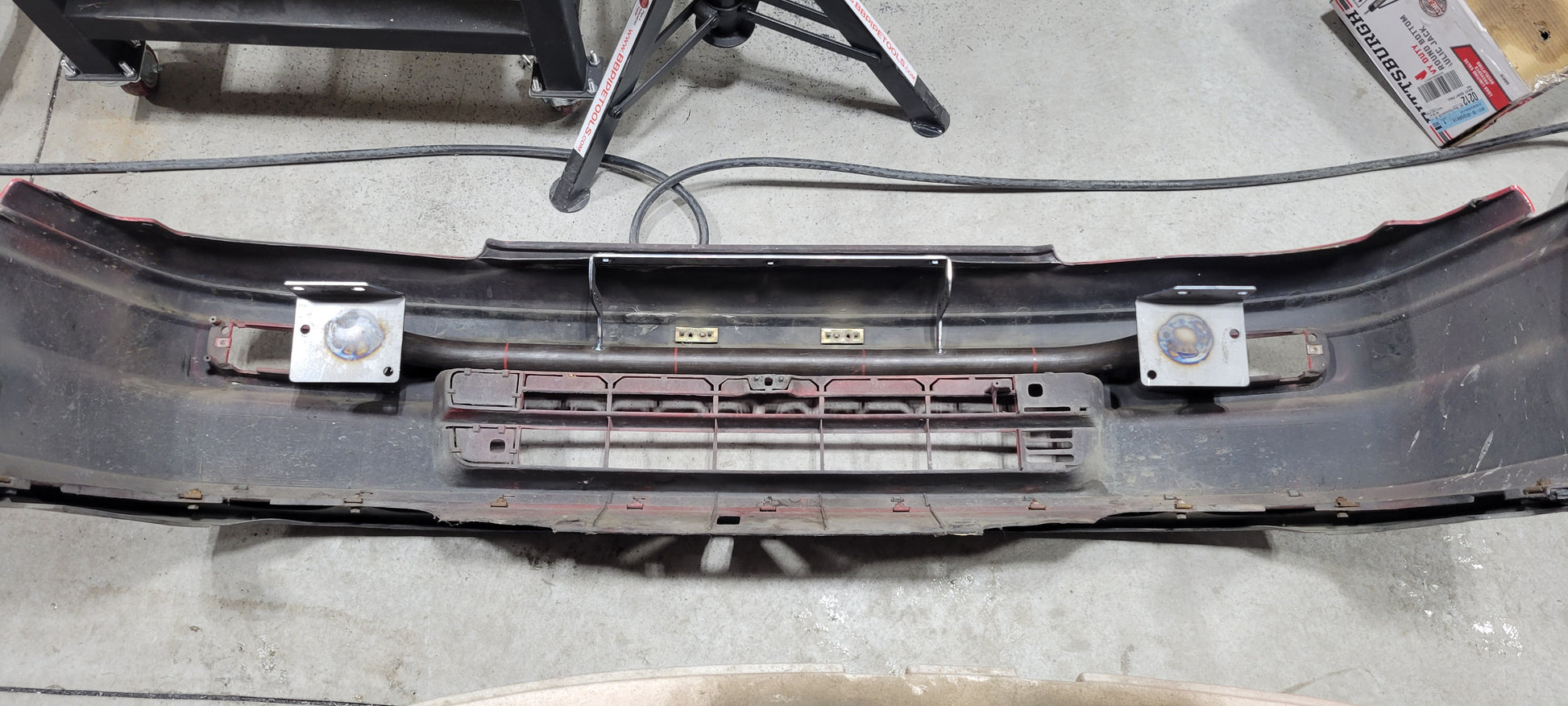

We designed this to be the best value bar on the market when it comes to weight, construction, design, add on options, price and total value. All bars are designed by scanning the OEM bumper bar/foam/support so that we can ensure the best fit and follow the existing shape. The race bar is intended to provide many performance benefits for track car applications (drag /road race) while allowing the user to customize the bar as they grow in the sport.

Honda CRX (1988 - 1991) track bar specifications

☆ Direct OEM replacement for USDM front end only

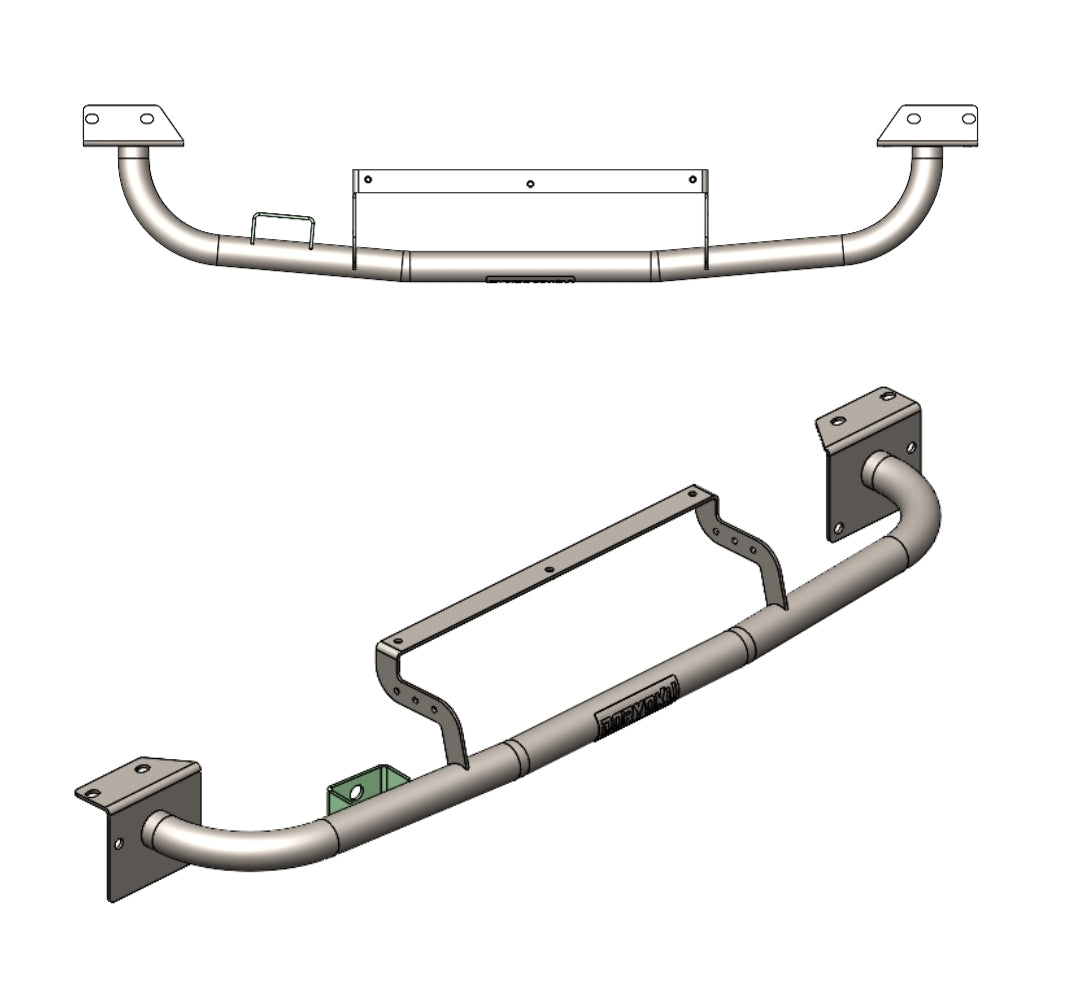

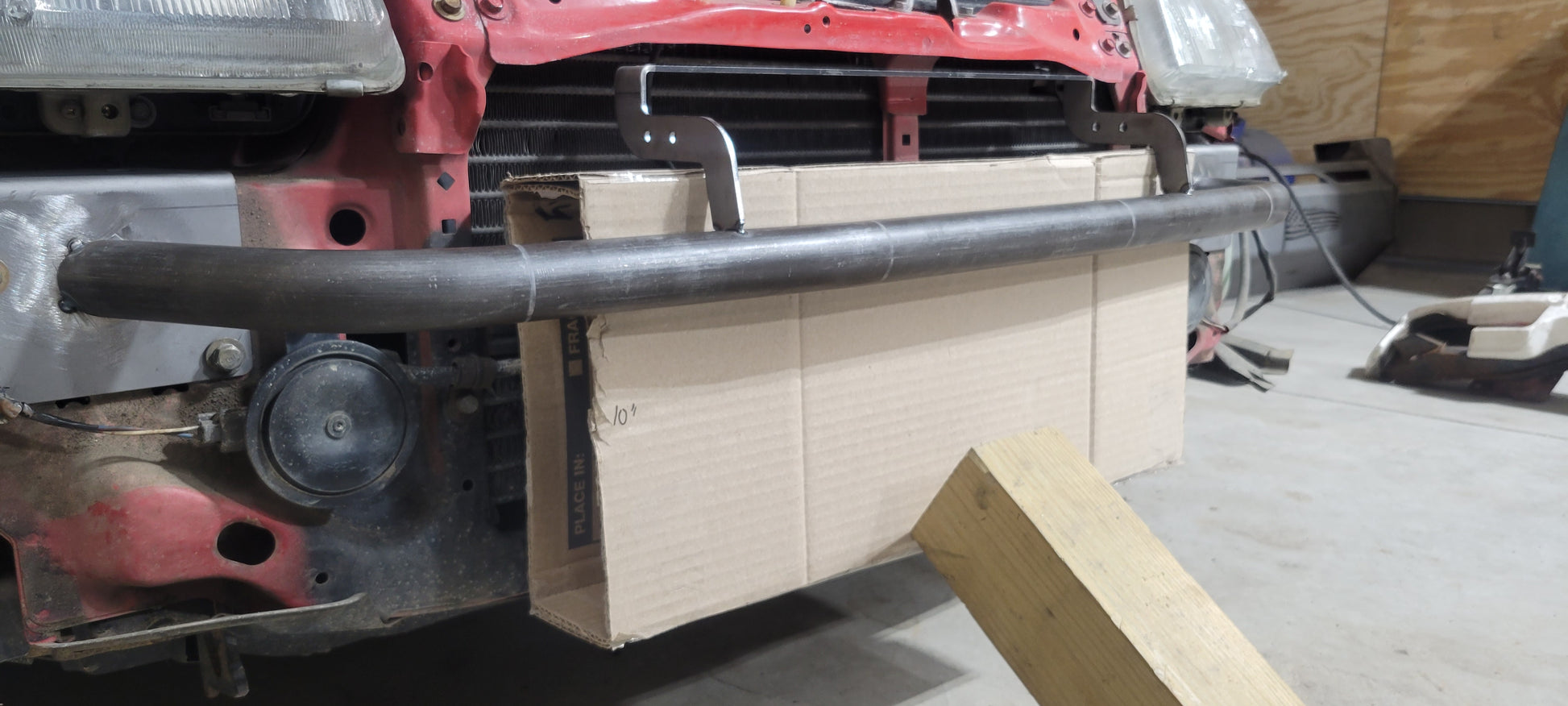

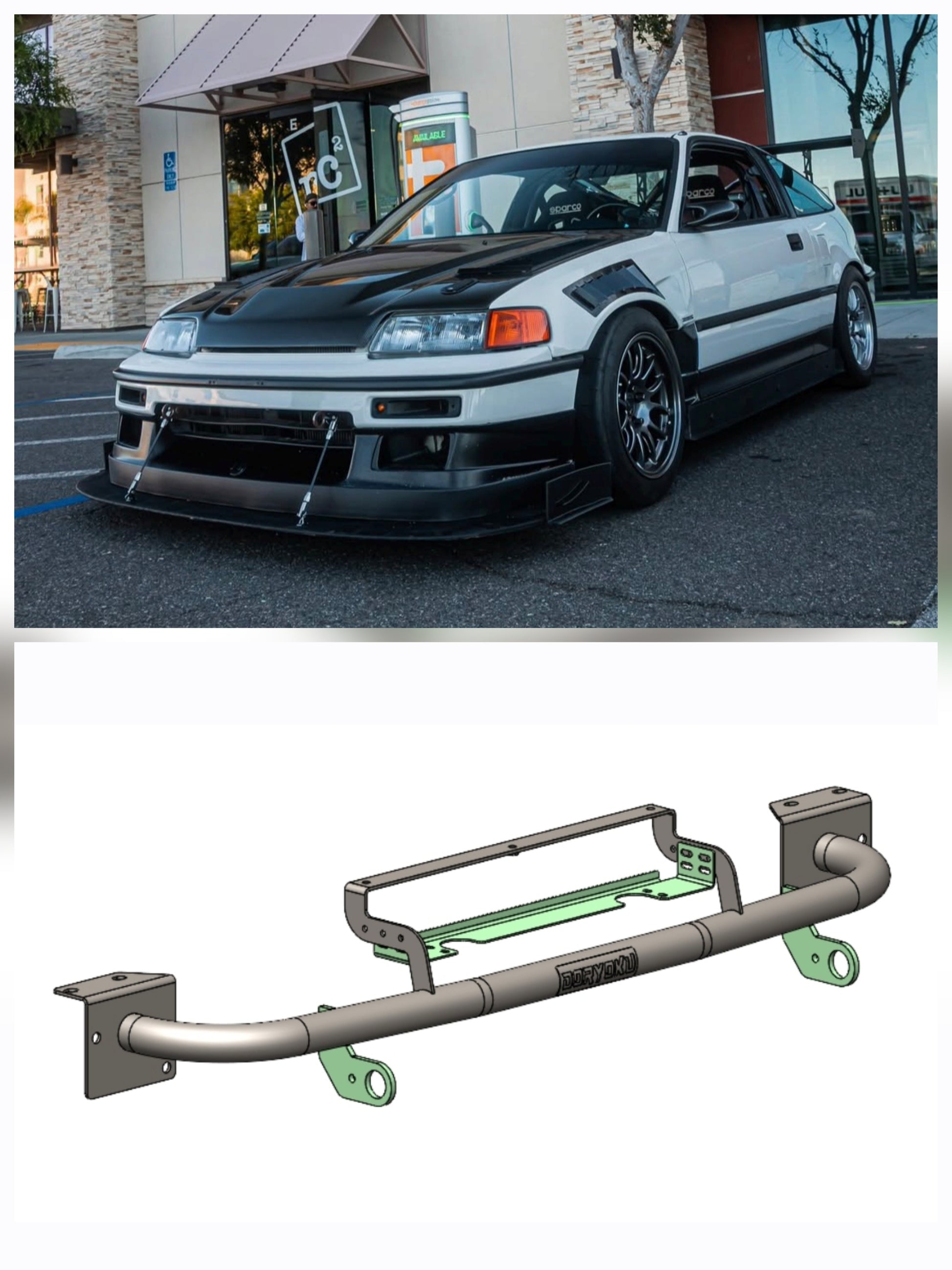

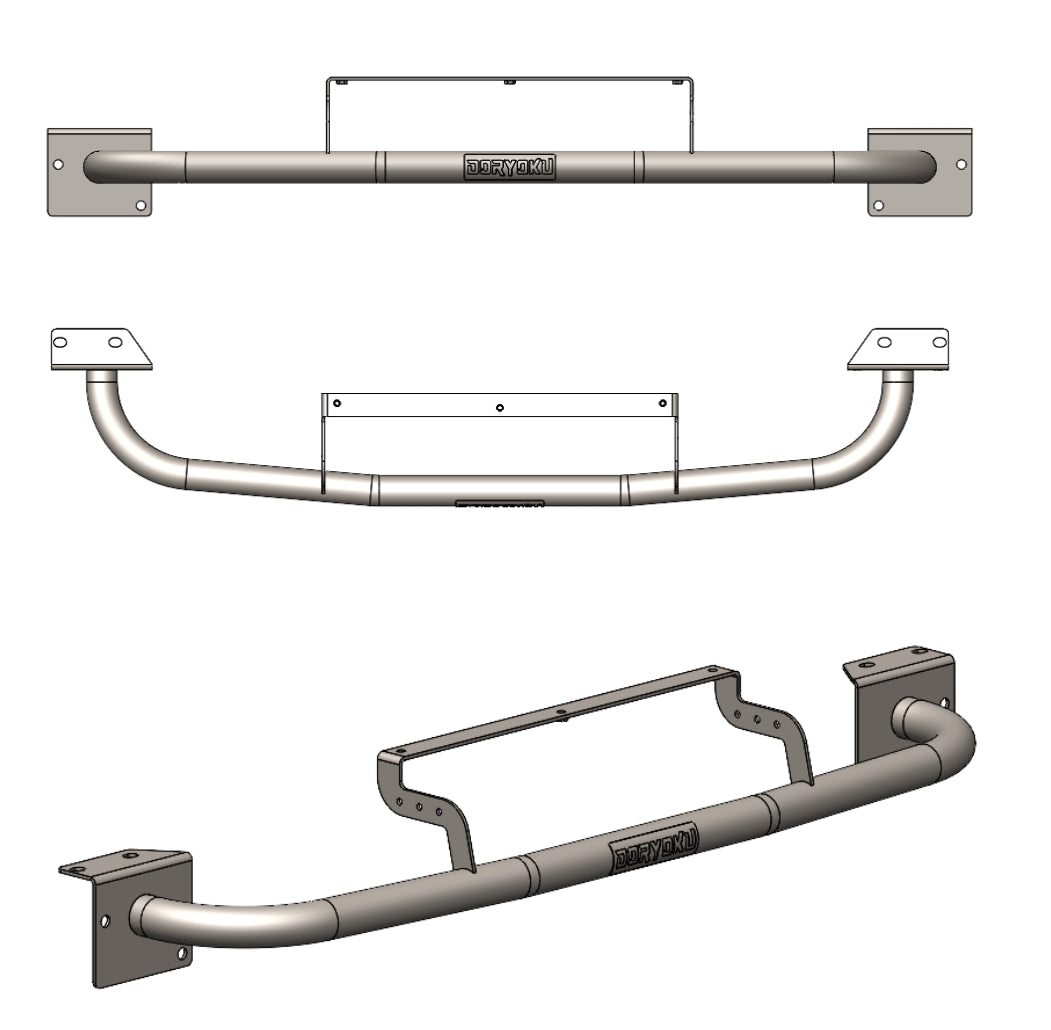

☆ Utilize 3D modeling design for tight fit behind bumper cover

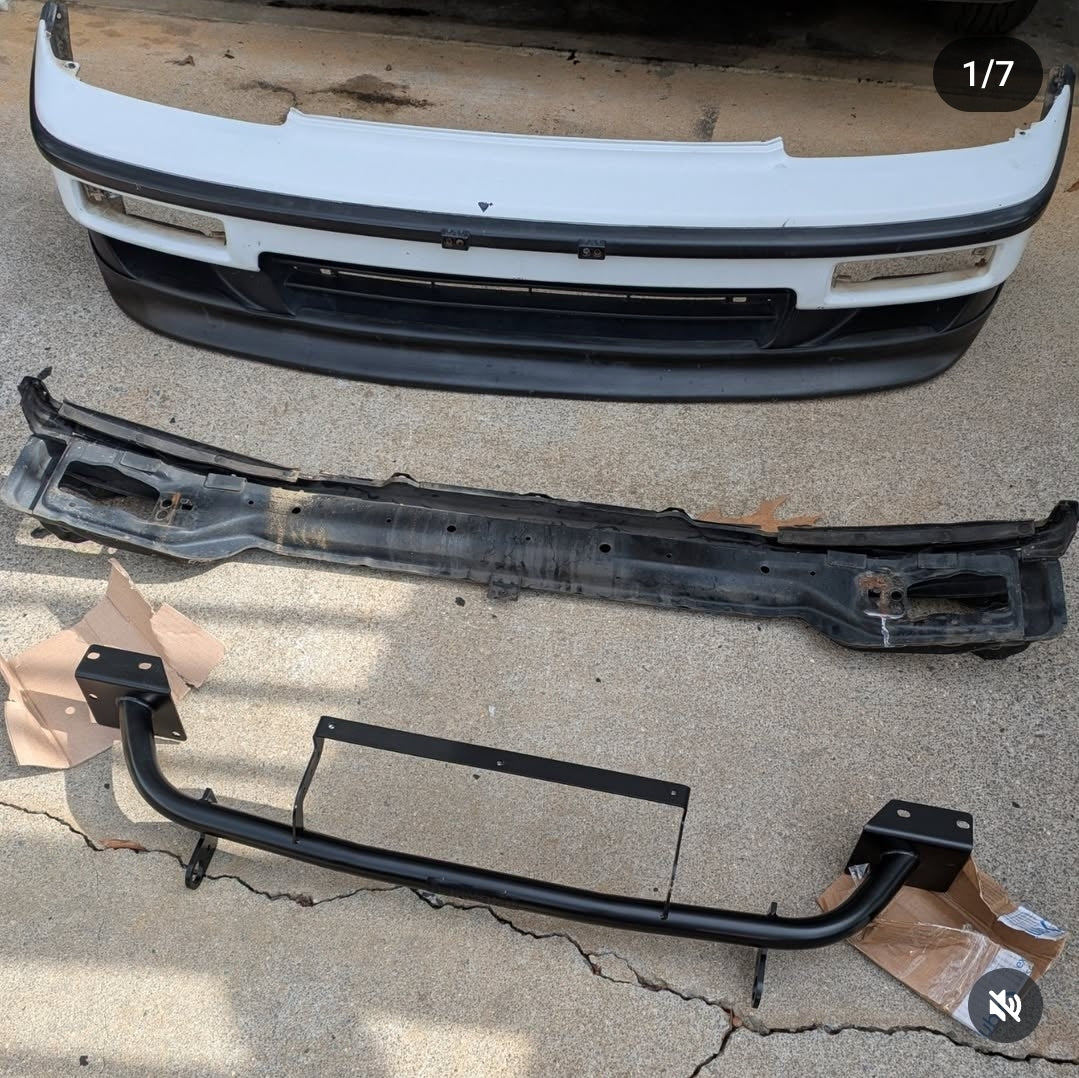

☆ 56%  (11 lbs.)  weight savings over stock (8.5 vs 19.5)

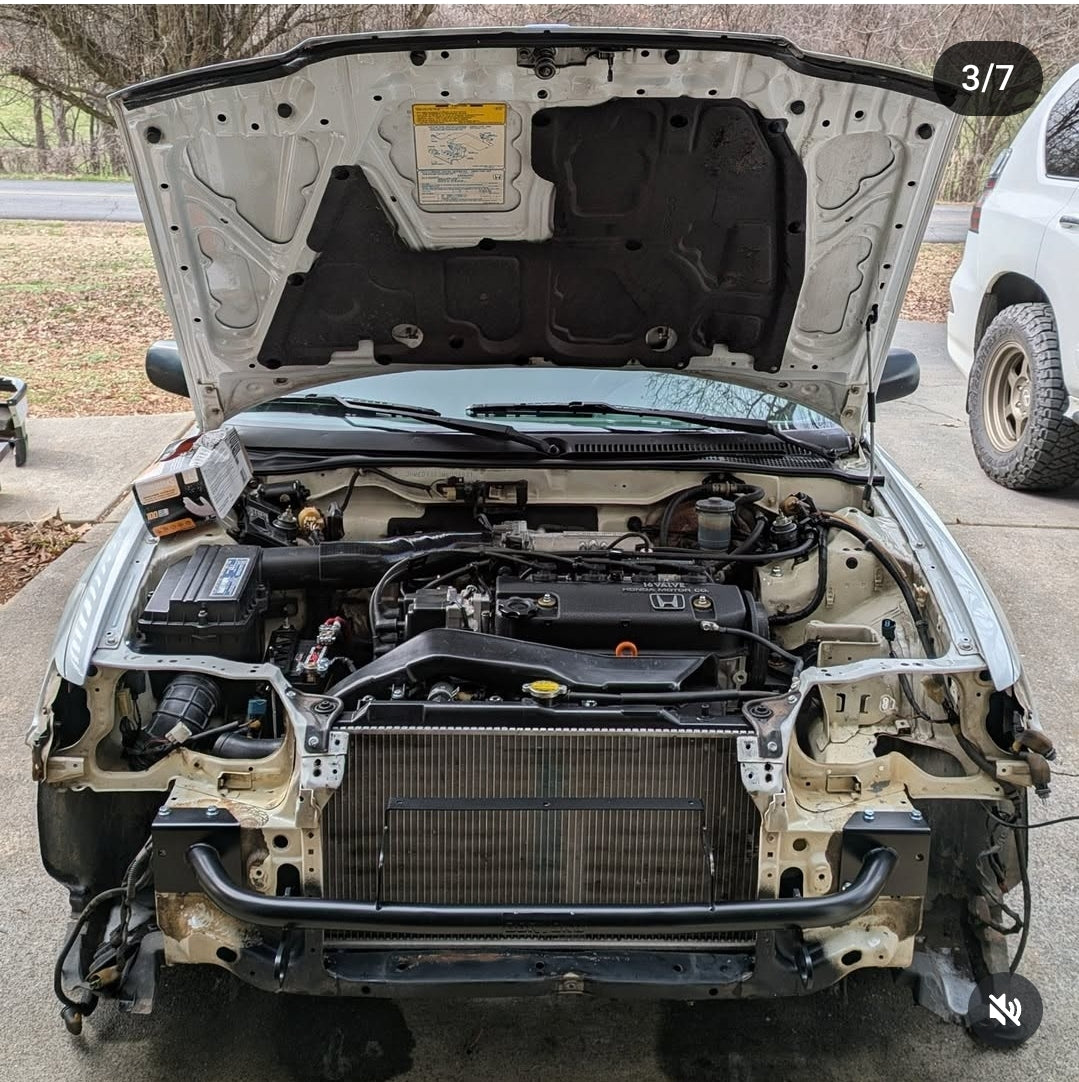

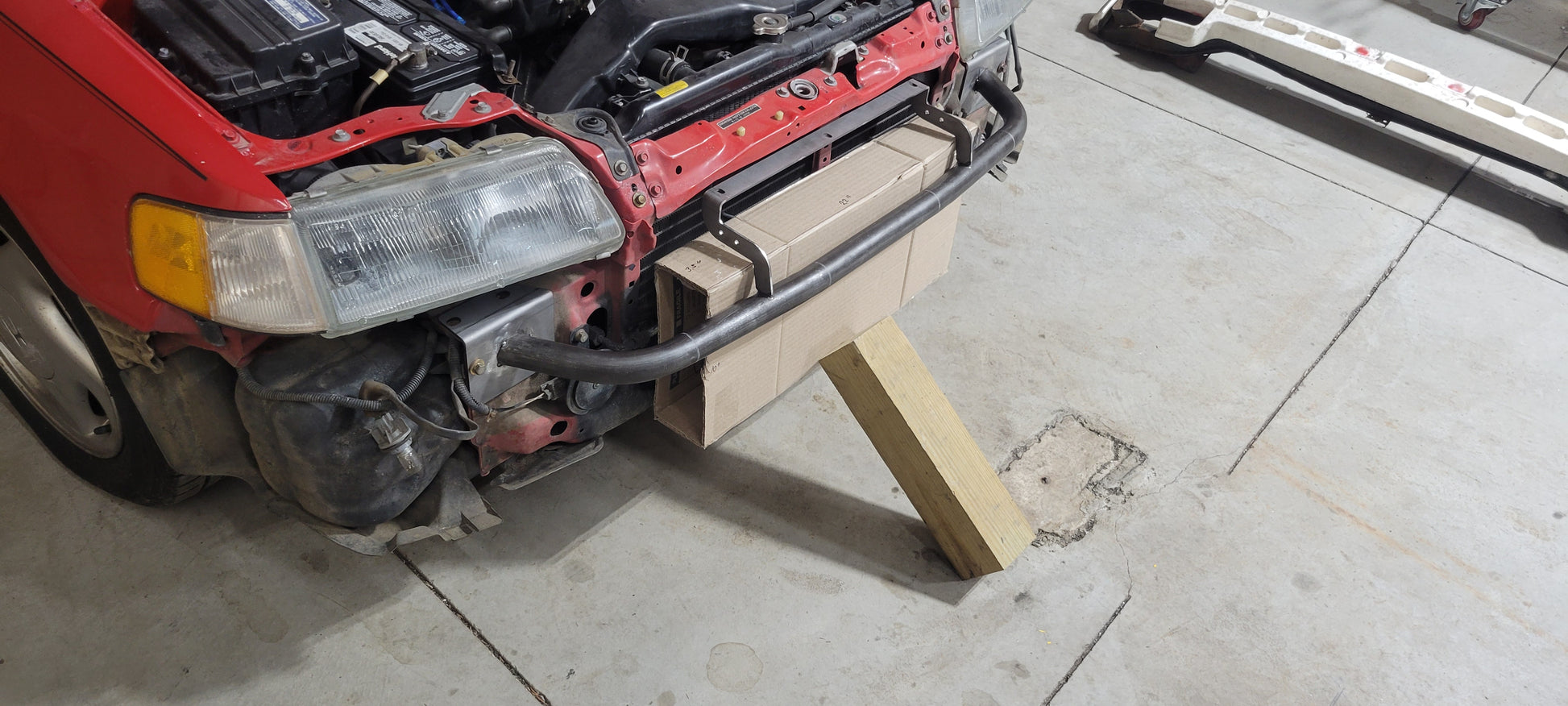

☆ Open up 4.25” of room between radiator support & bumper

☆ Bumper bracket as built-in mounting holes for oil cooler & intercooler

☆ DOM 1.5" 1020 13 gauge steel tube

☆ 10 gauge steel mounting plates

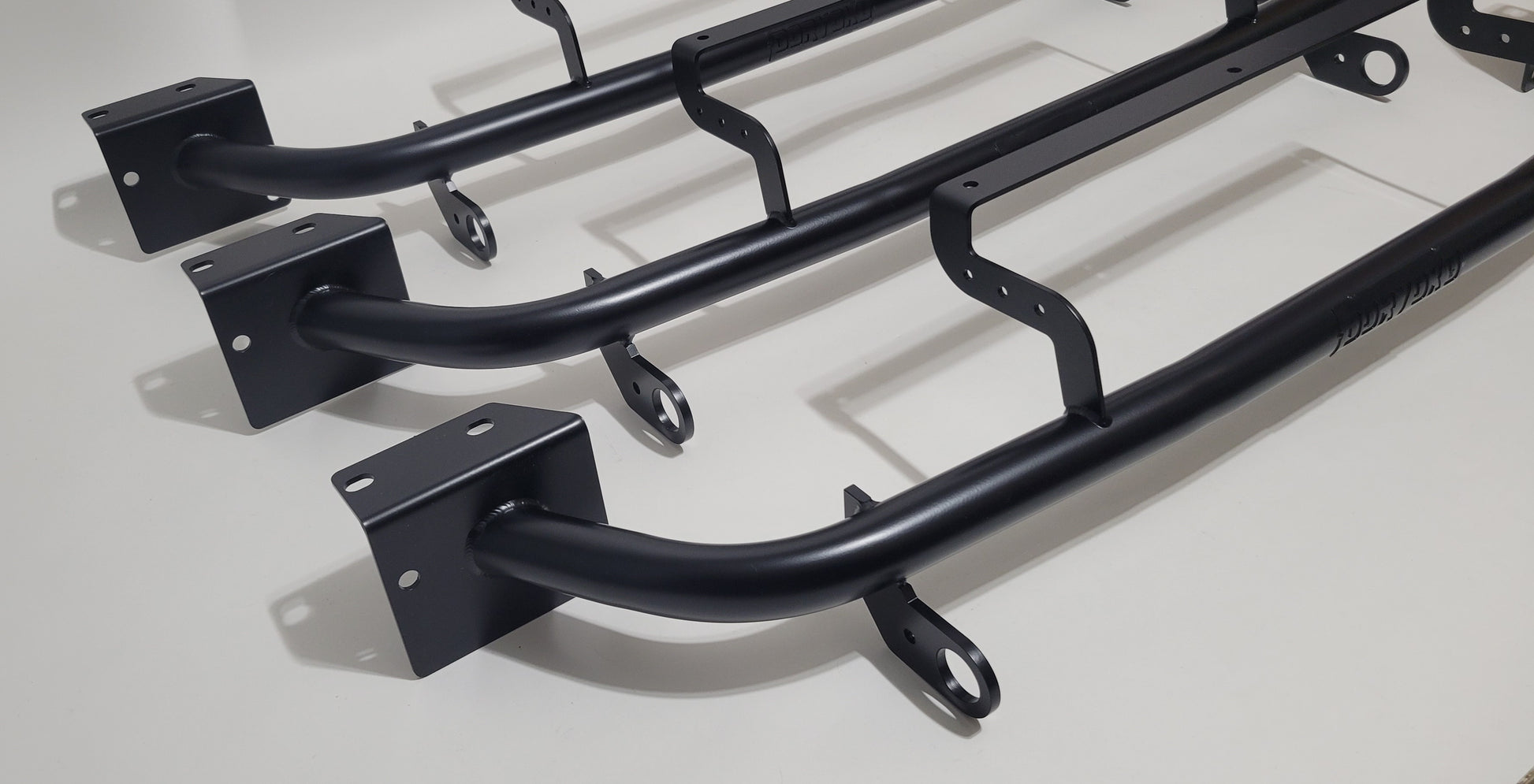

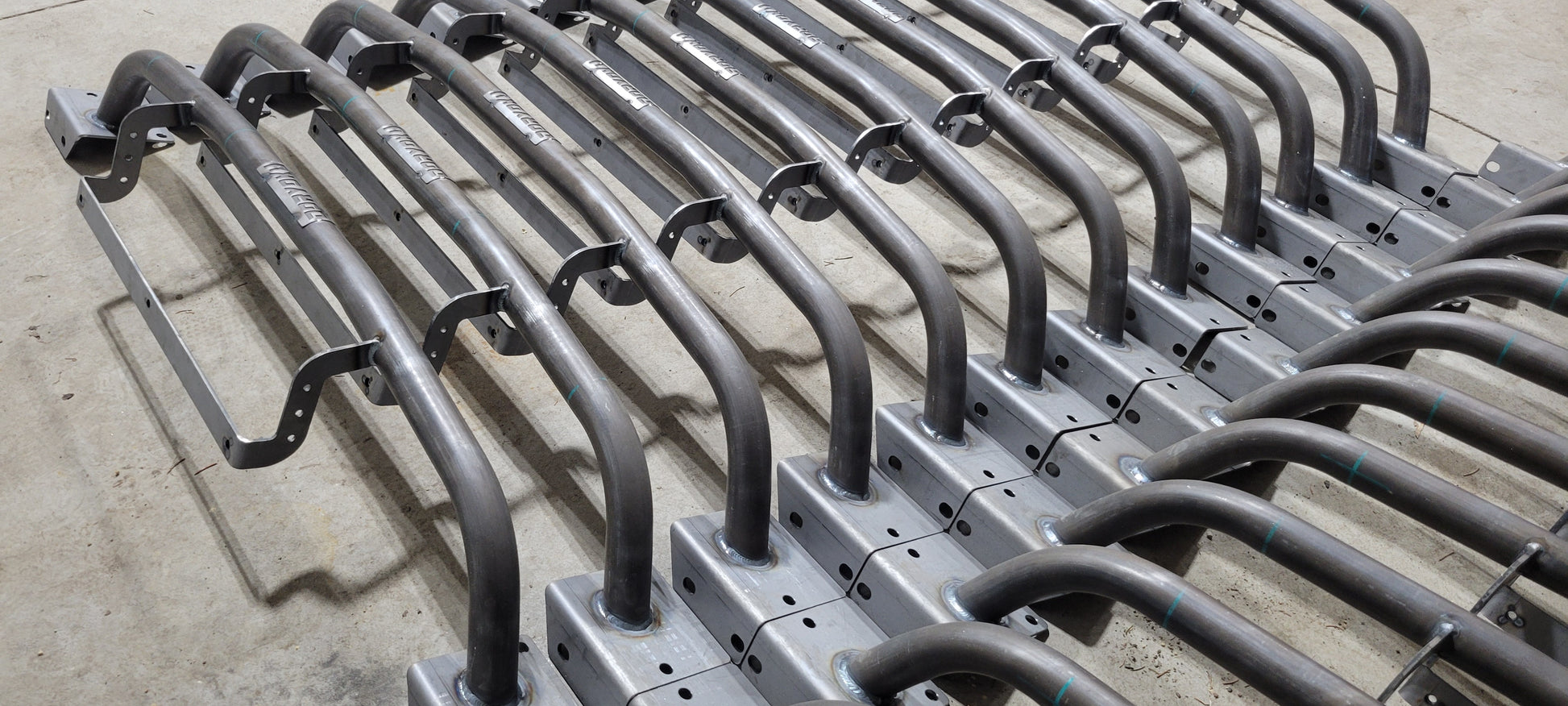

☆ TIG welded construction

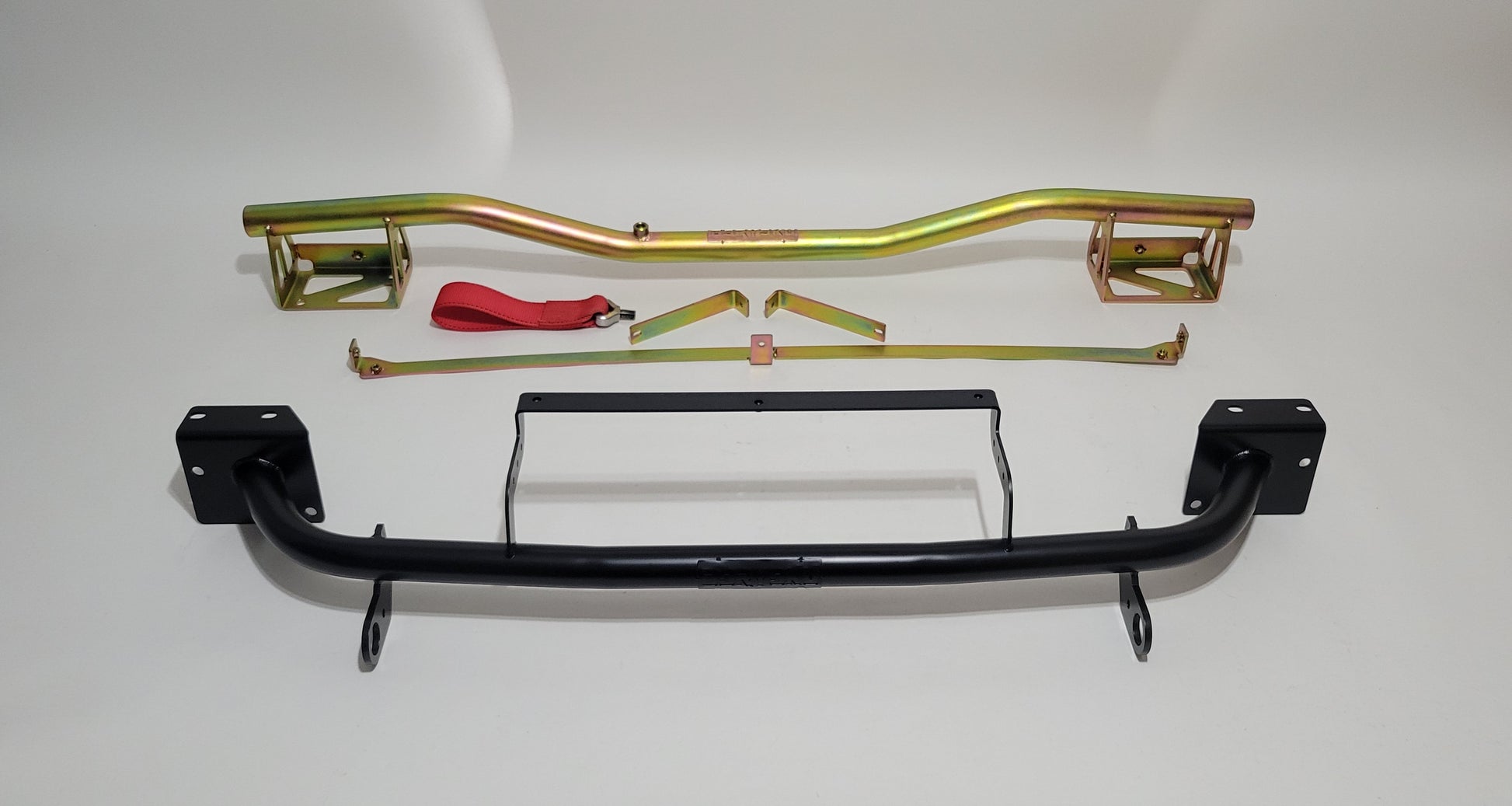

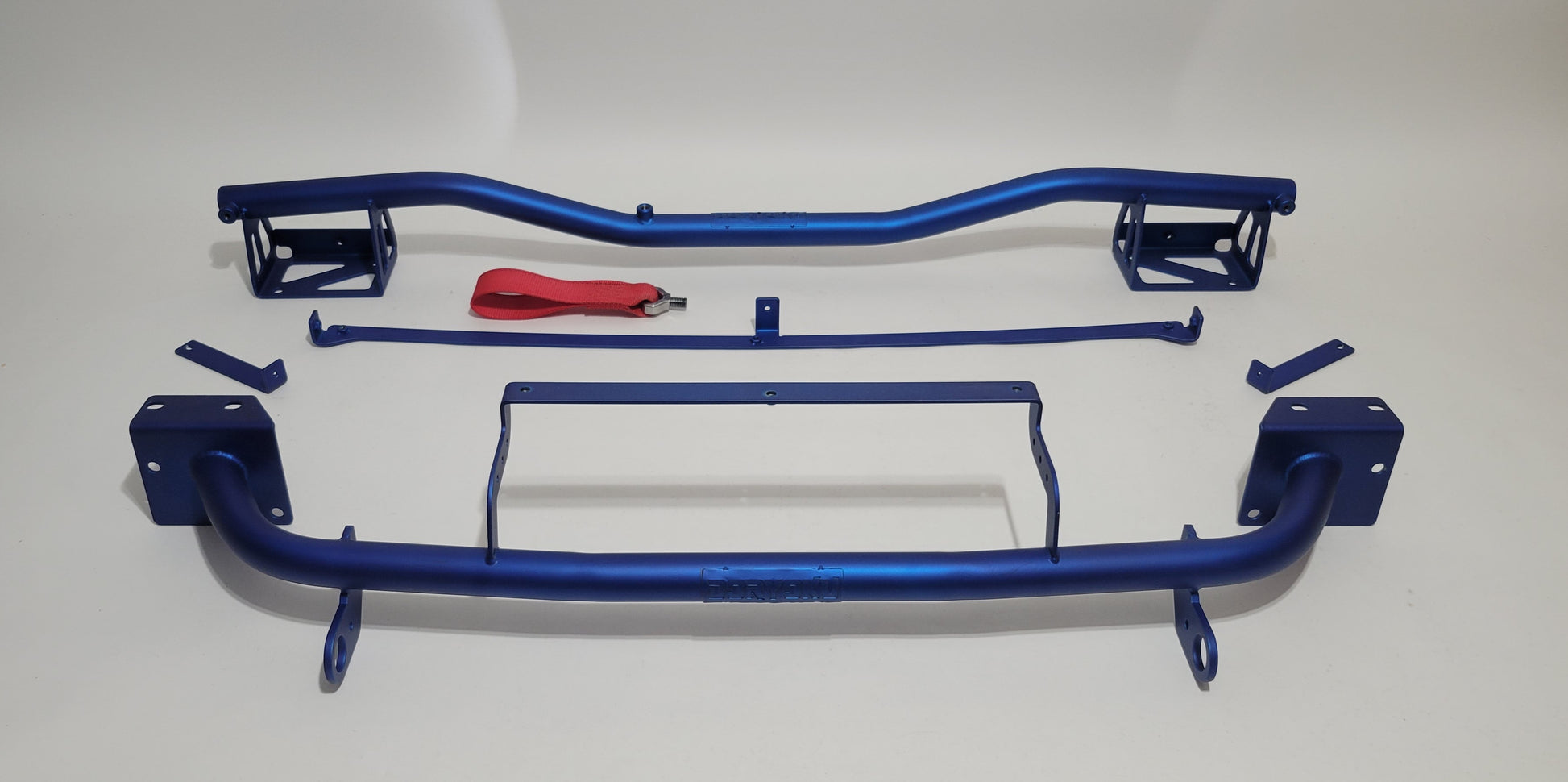

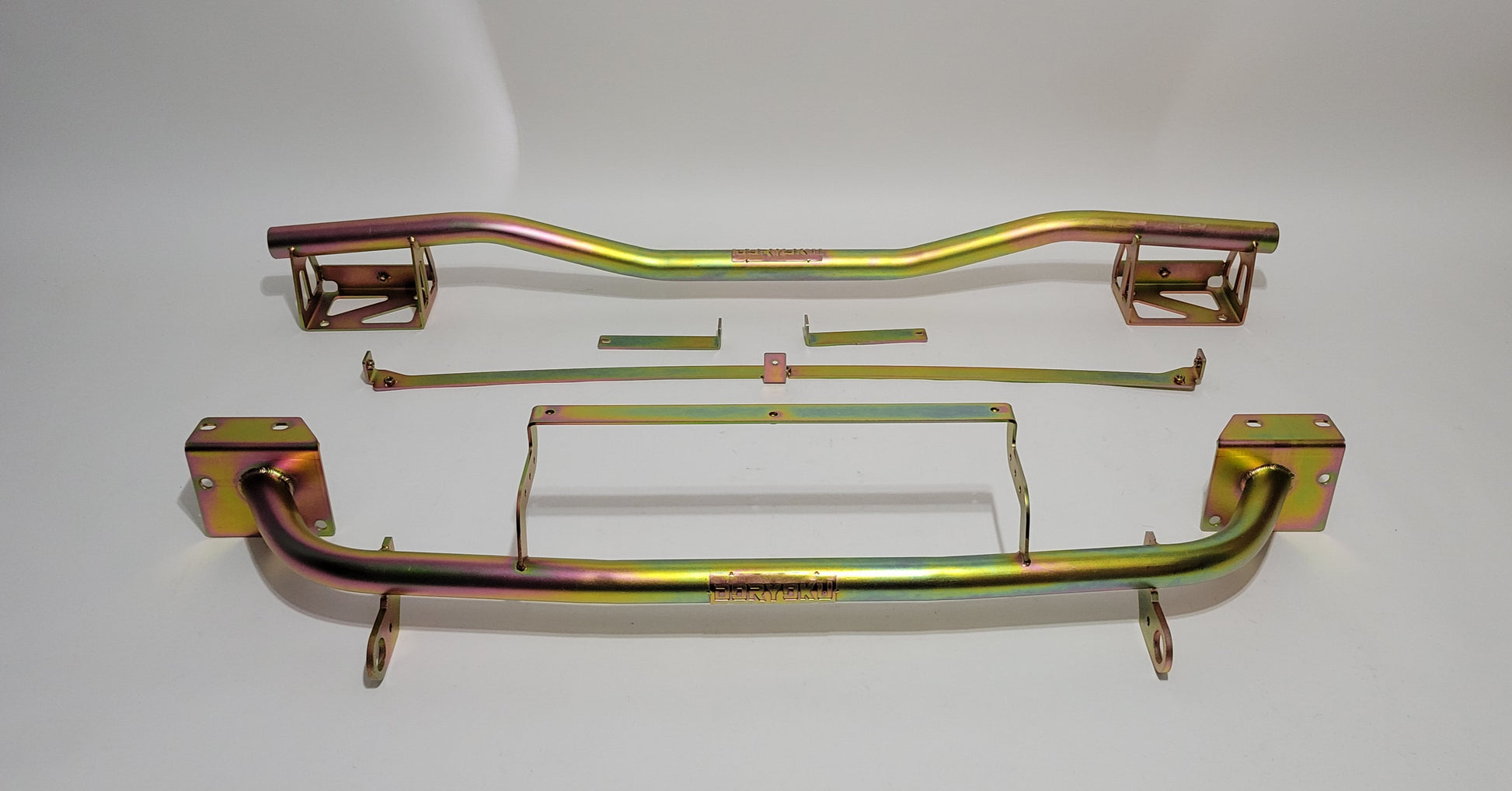

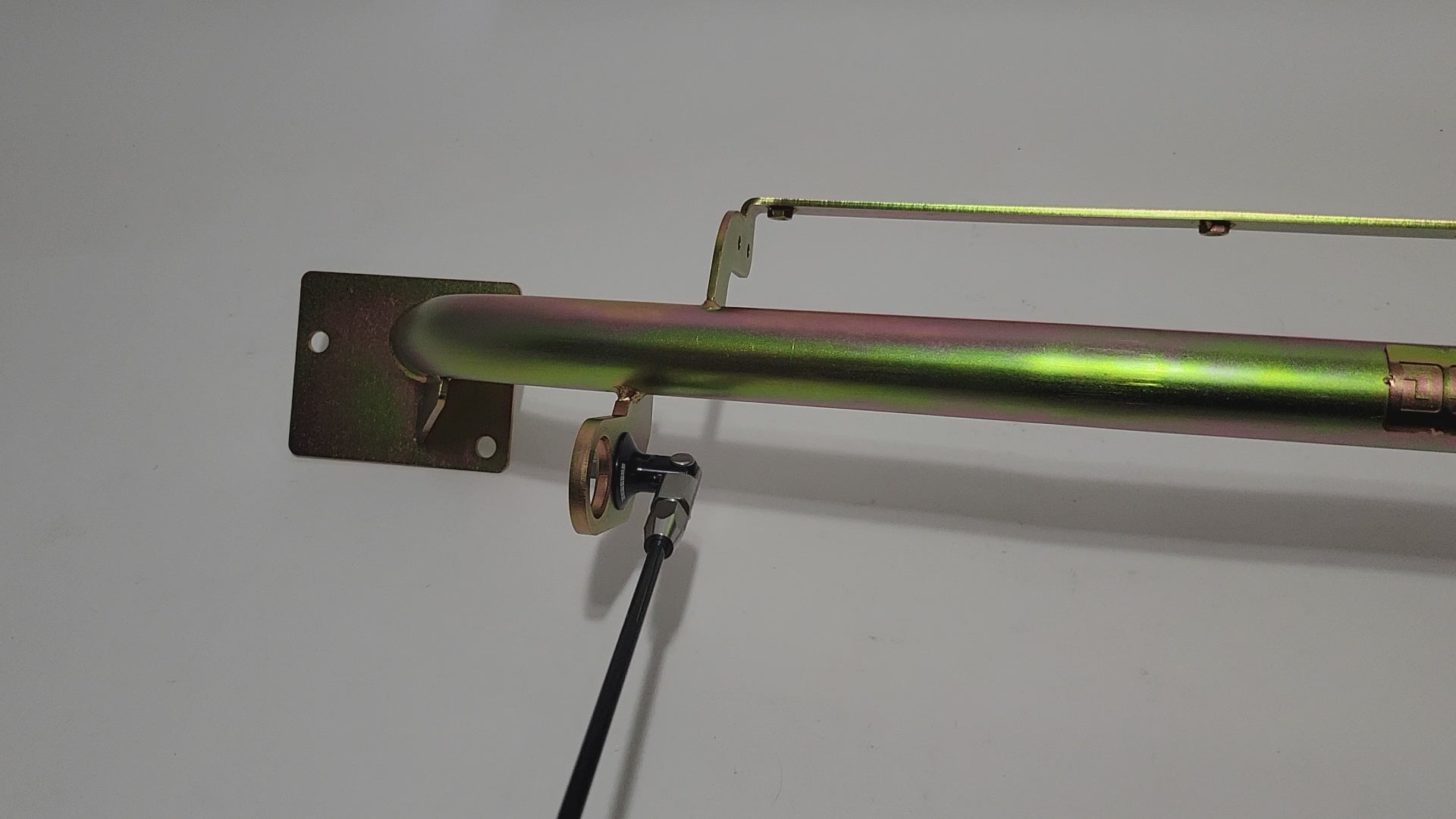

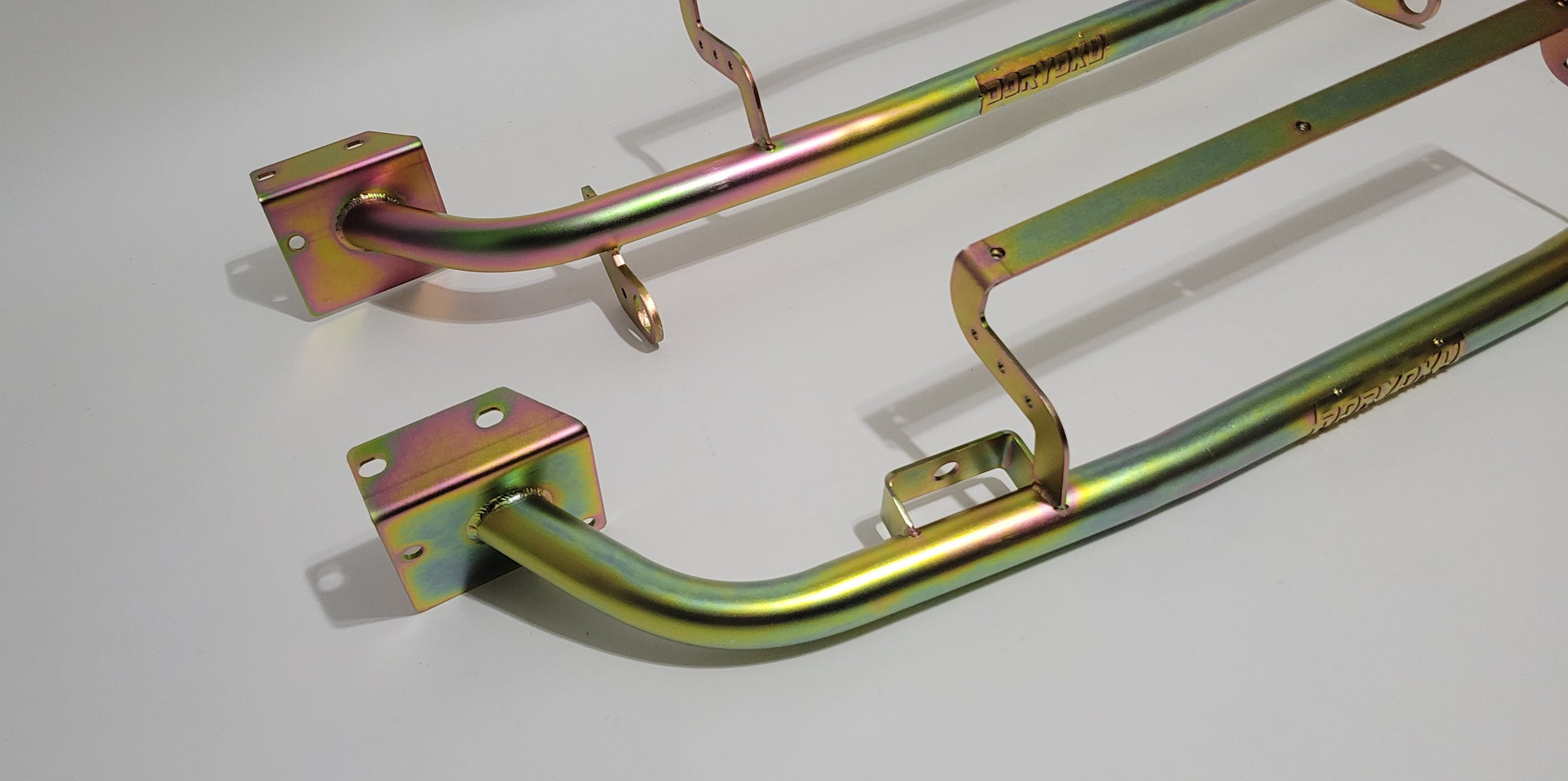

☆ Includes matte black powder coating or zinc chromate yellow plating

☆ Includes M8x1.25 mounting hardware

☆ $35 flat rate shipping - up to 2 bars (front & rear)

☆ Legal in Gridlife, NASA, SCCA , Champcar Endurance Racing , WRL Endurance Racing, Luckydog Endurance Racing & more









Custom Options

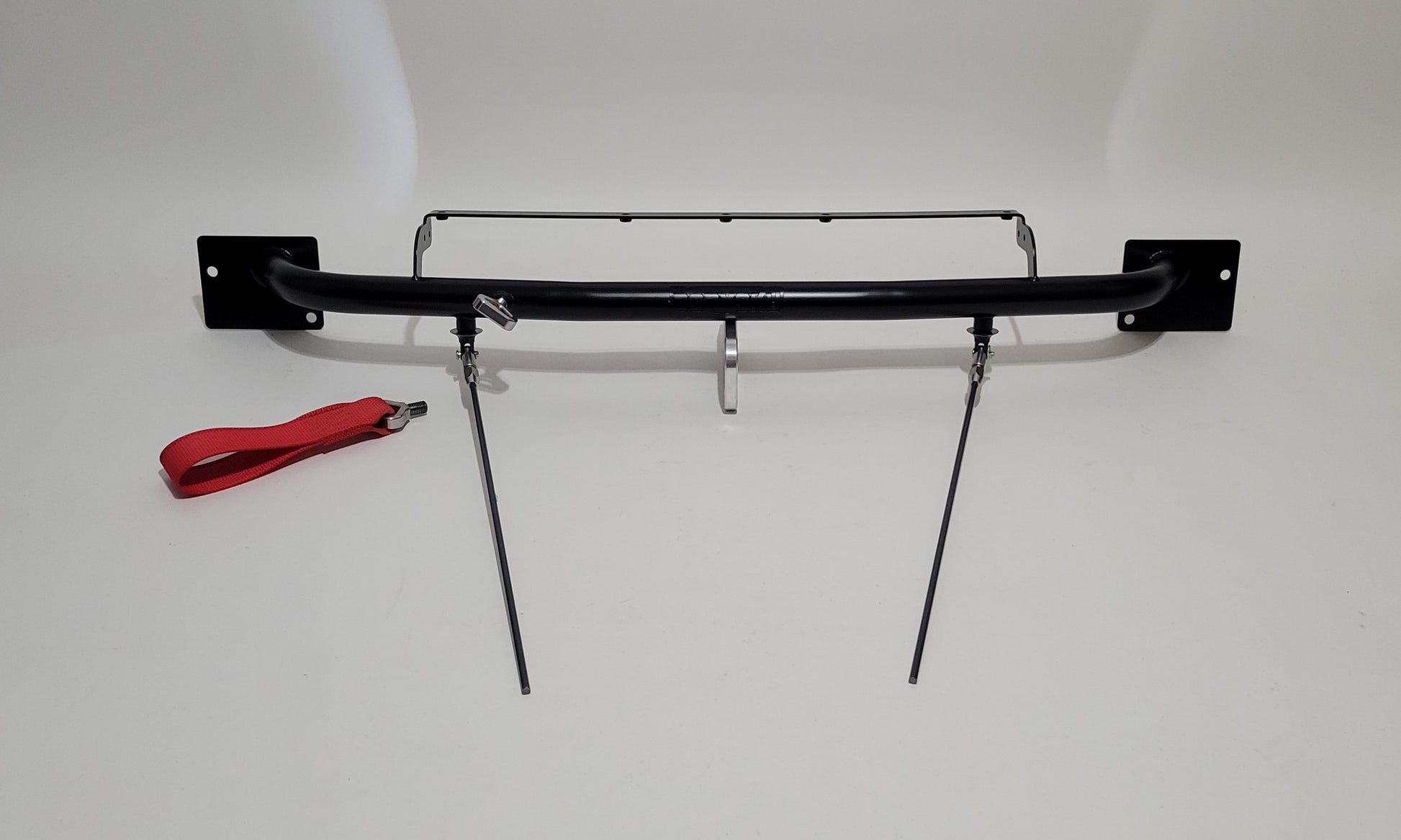

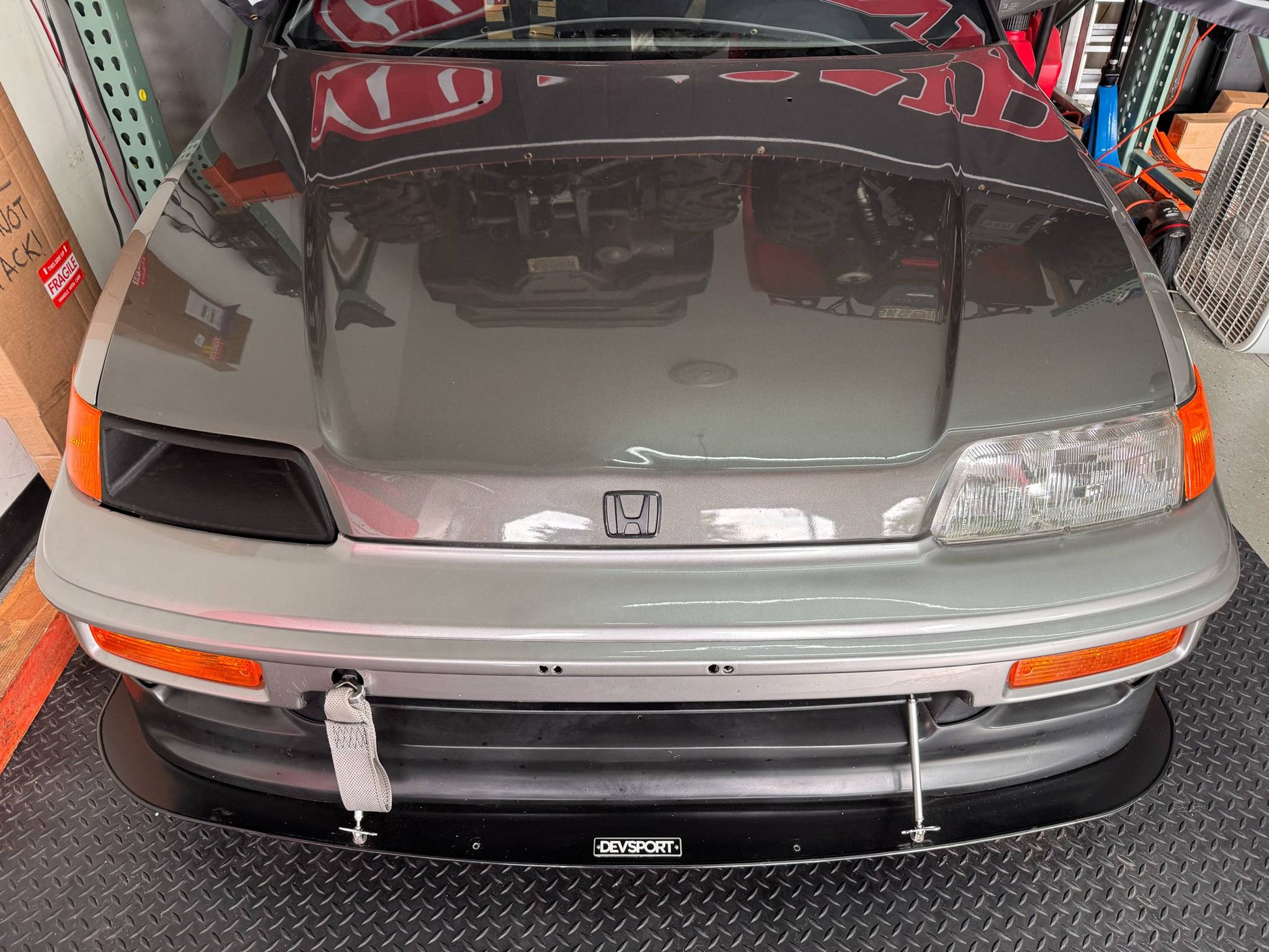

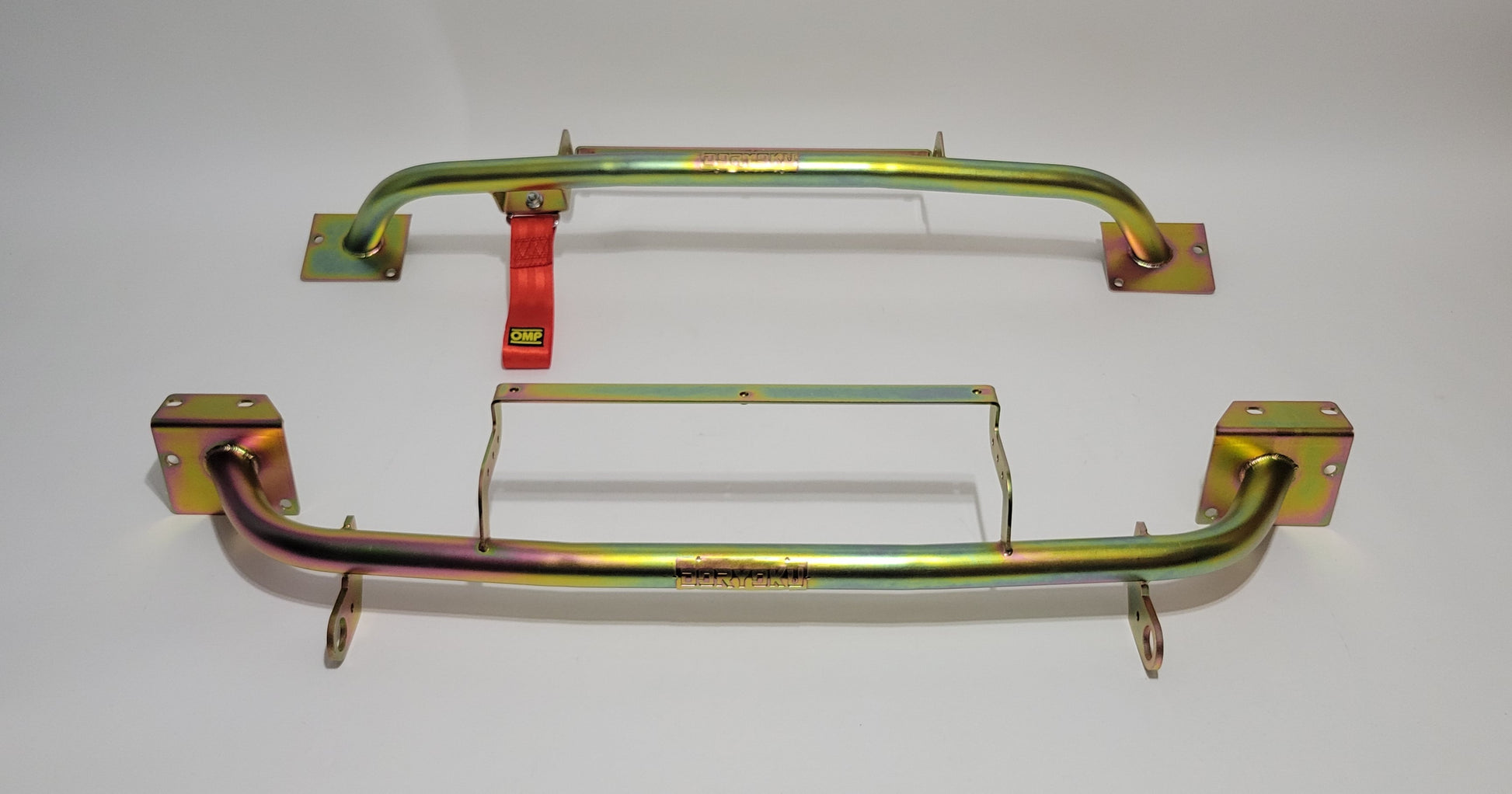

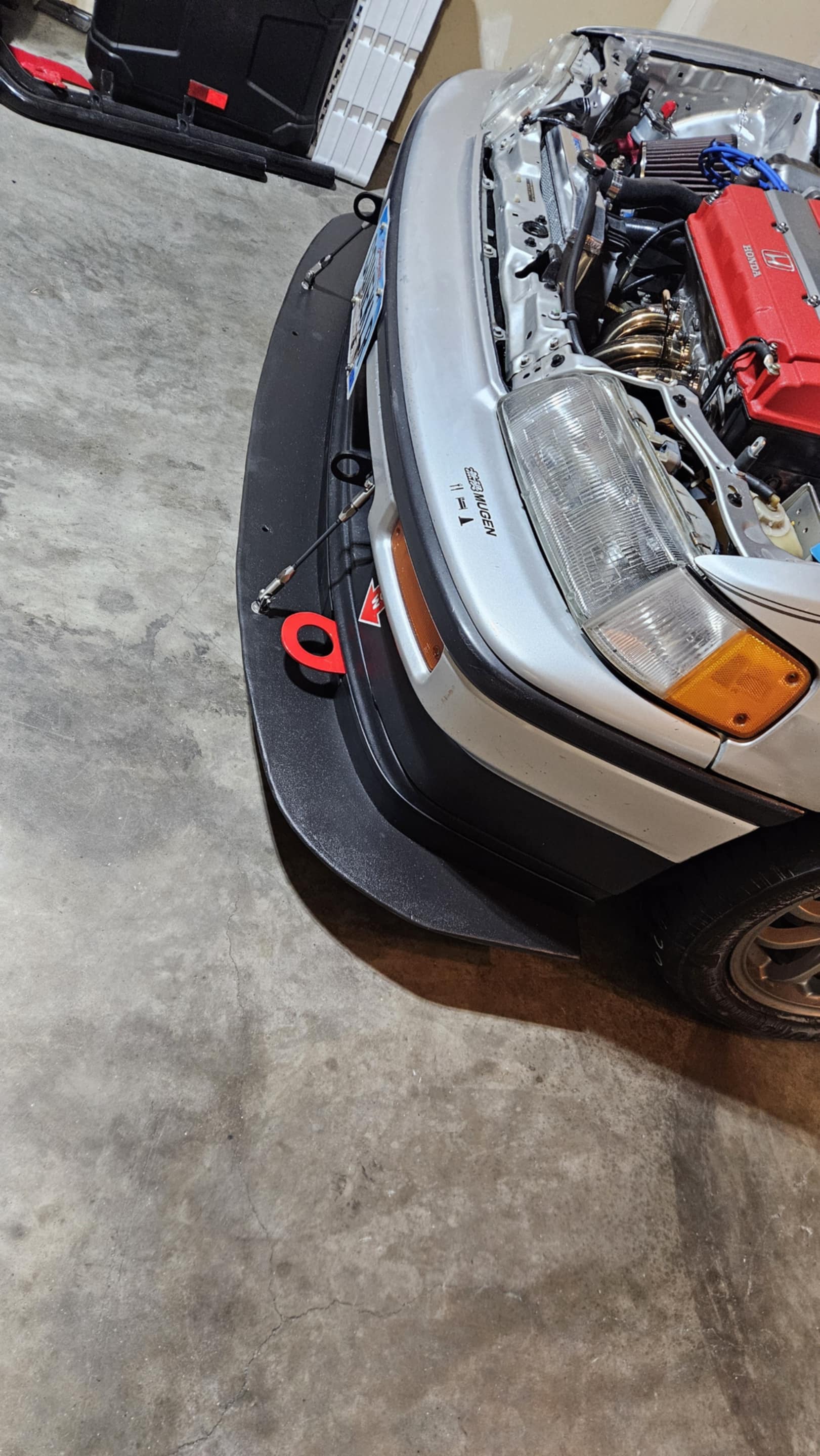

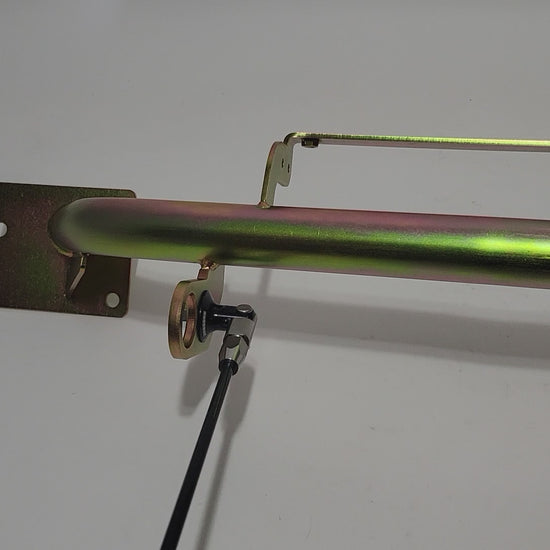

☆ Extended dual tow hooks

These welded hooks can be used for easy access tie-down for transport. This eliminates the need to go under the car which interferes with splitters, lips. The dual hooks also have an M8 hole which are used for mounting splitter support rods. Consulting will be provided before fab.

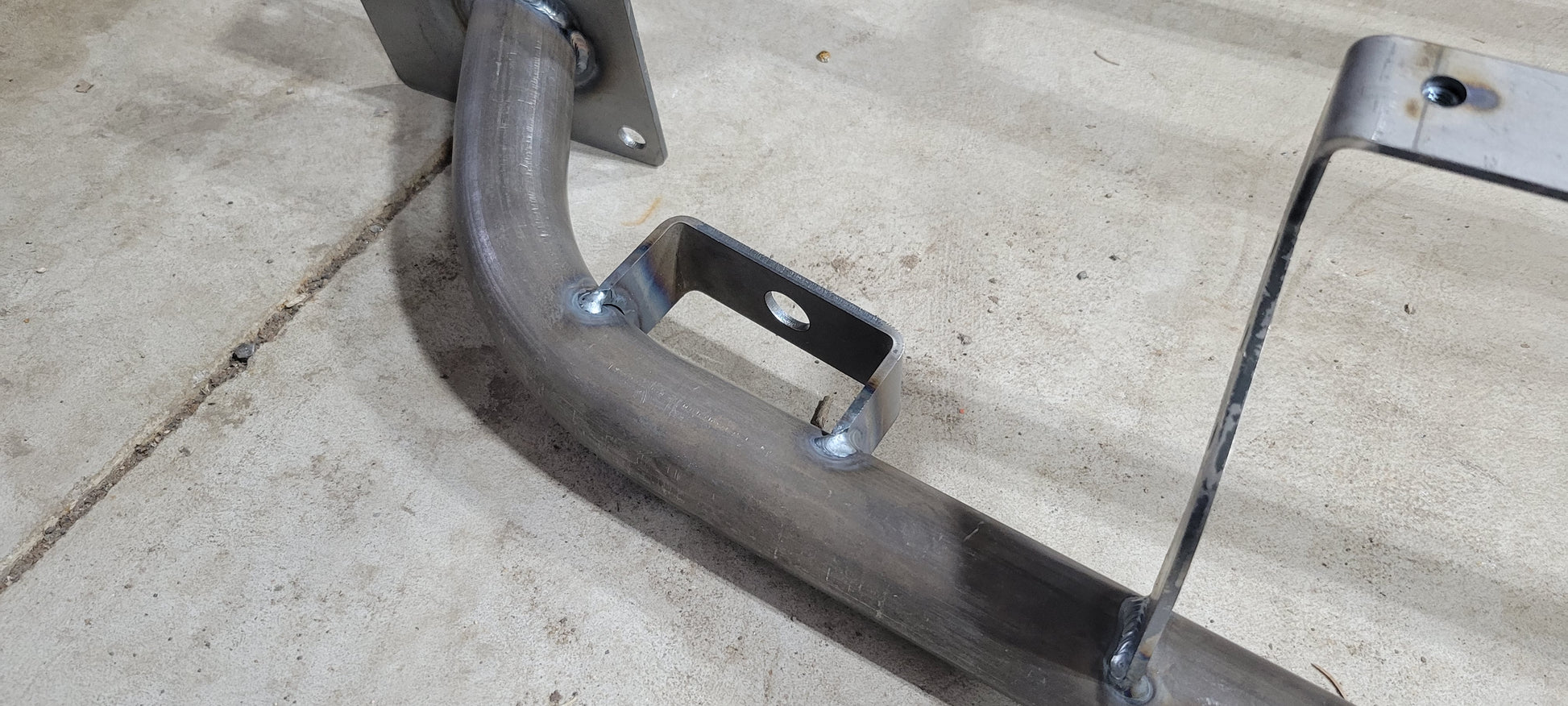

☆ Hidden Universal tow strap bracket

This welded bracket allows for universal tow straps to be bolted on. You will need to make a horizontal slit in the bumper cover for the strap to pull through. This can be placed anywhere on the bar, driver, passenger or center. Consulting will be provided before fab. Check out the Doryoku Bolt-on Tow Strap

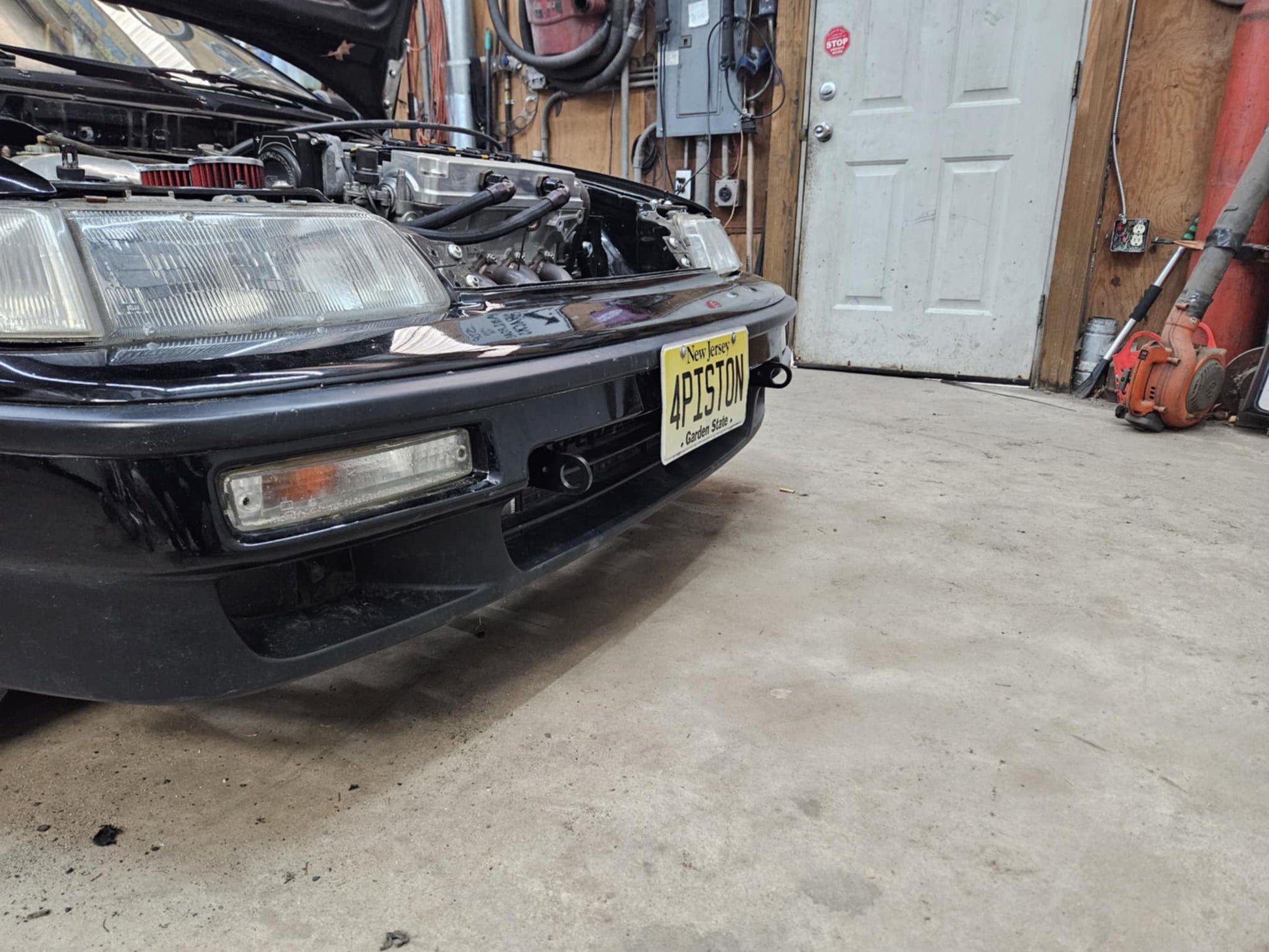

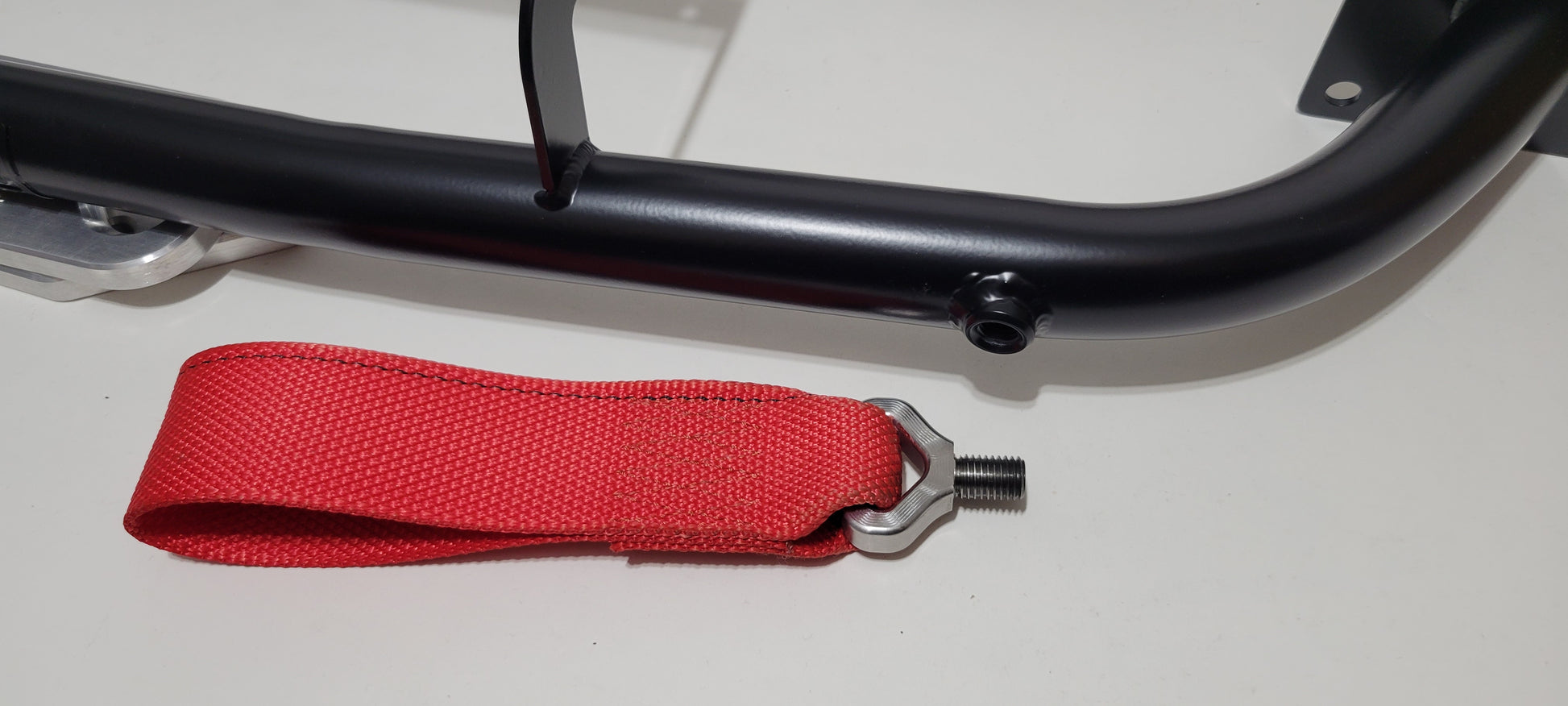

☆ Recessed CNC M12 tow bung

Welded CNC M12 bung allows for thread in style tow strap which is common on modern cars such as S2000, FRS BRZ, BMW, Corvette, Porsche, VW Audi sports cars. We can place this anywhere on the bar (passenger, driver, center). Please specify in the "Special Instructions"  Check out the Doryoku Billet Tow Strap

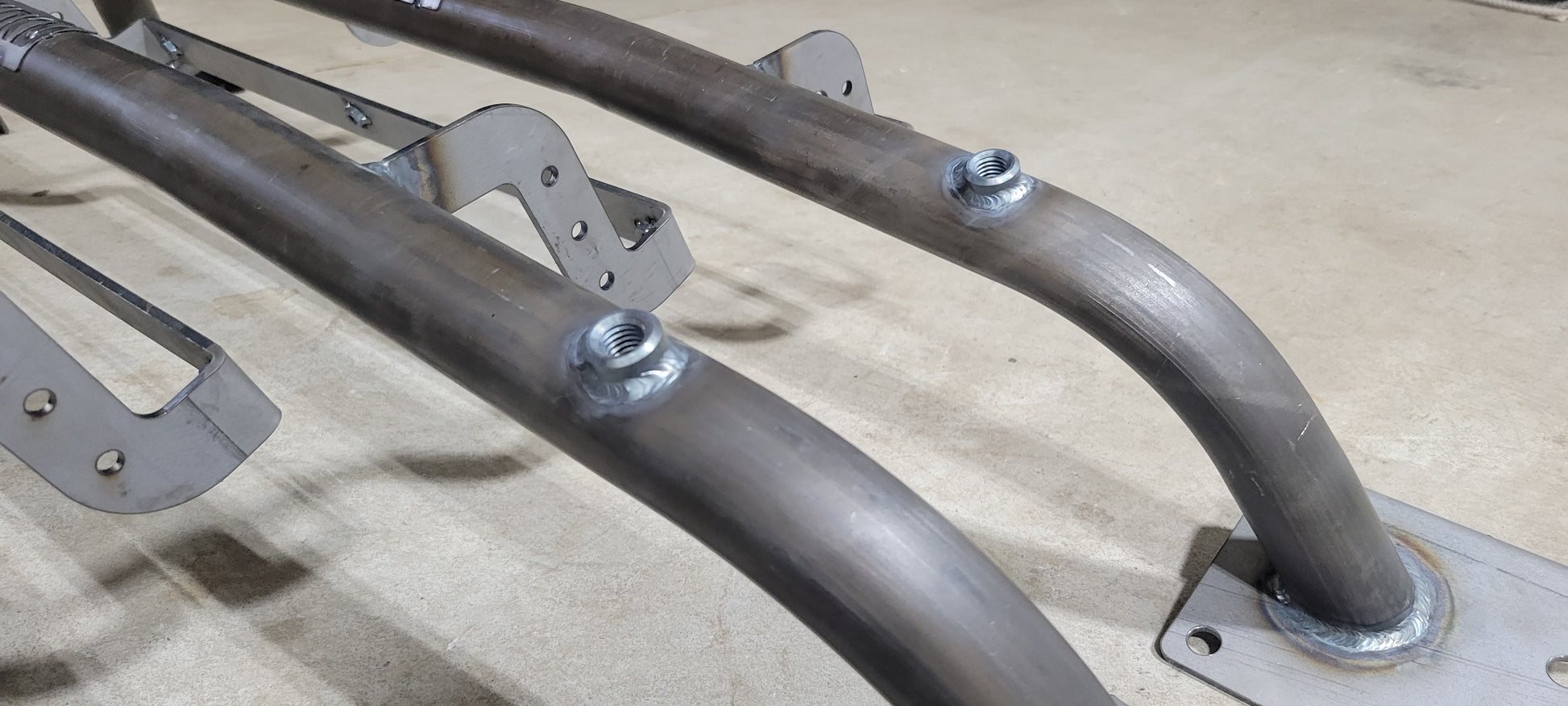

☆ Dual M8 threaded mounting pucks

M8 pucks make it easy to bolt on FMIC, oil coolers, ducting plate, light bar & splitter support rods. We offer 1" and 3" long M8 pucks. See gallery. M8 pucks are placed on the bar based on your setup. Consulting will be provided before fabrication.

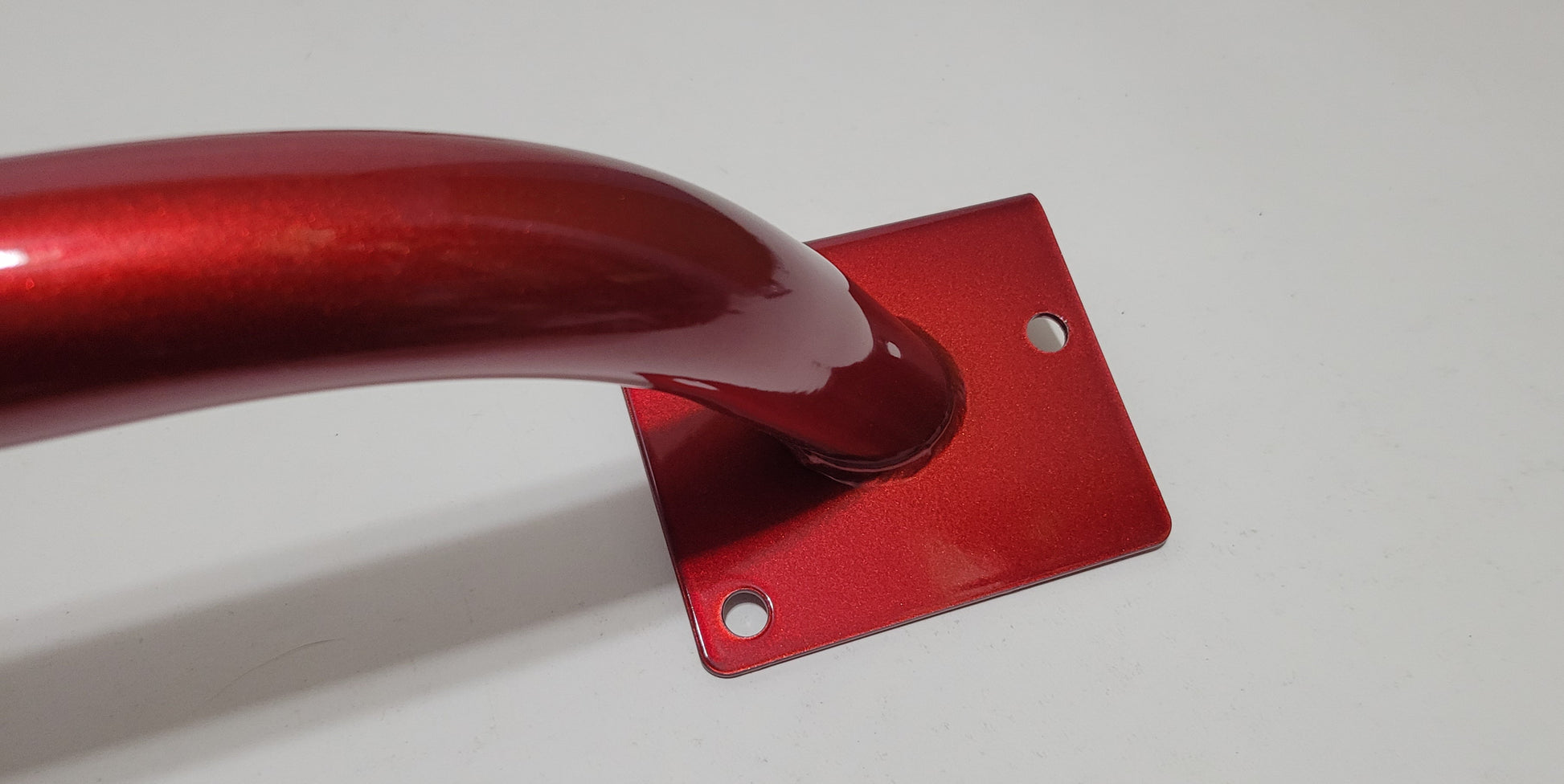

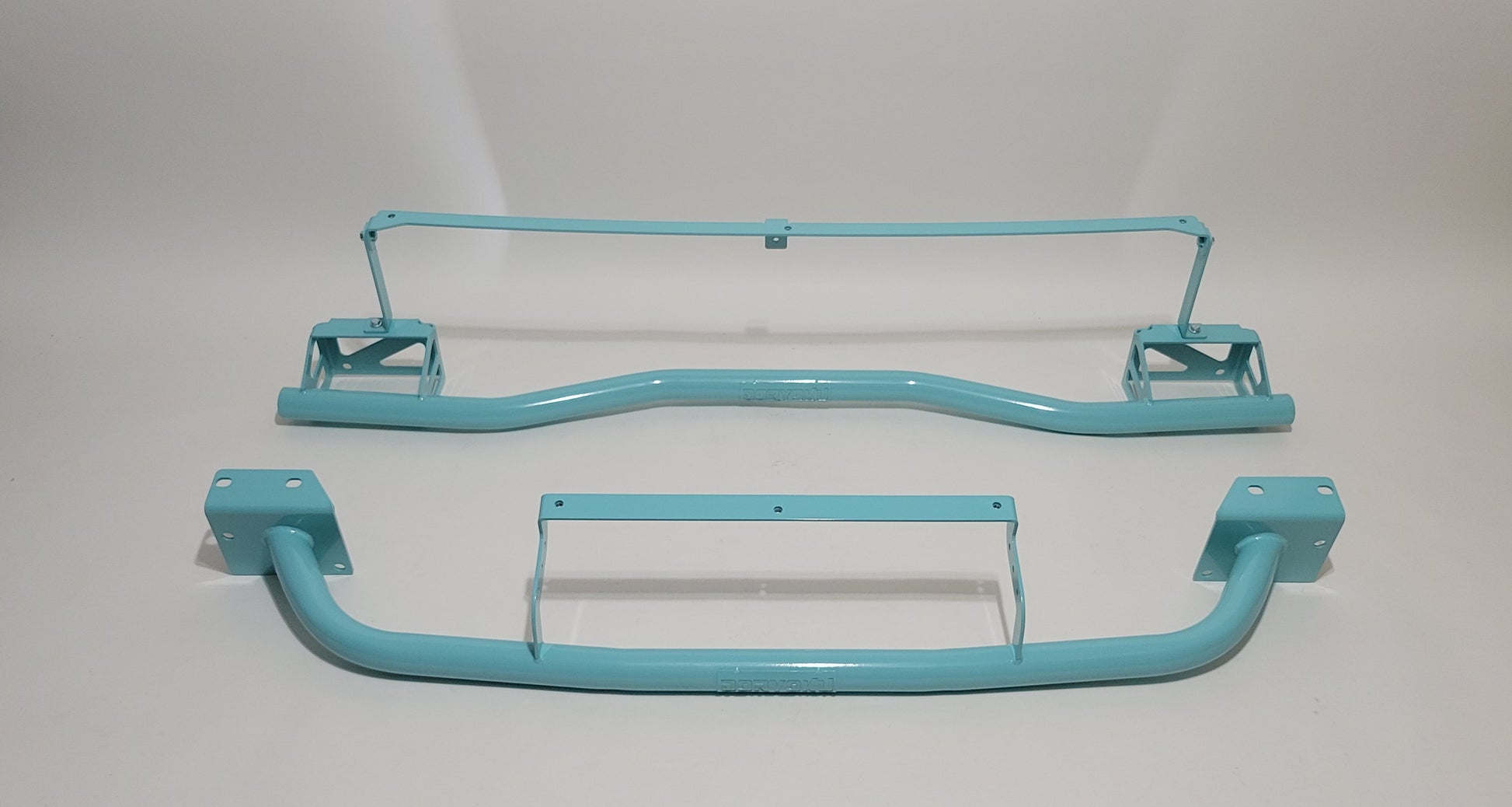

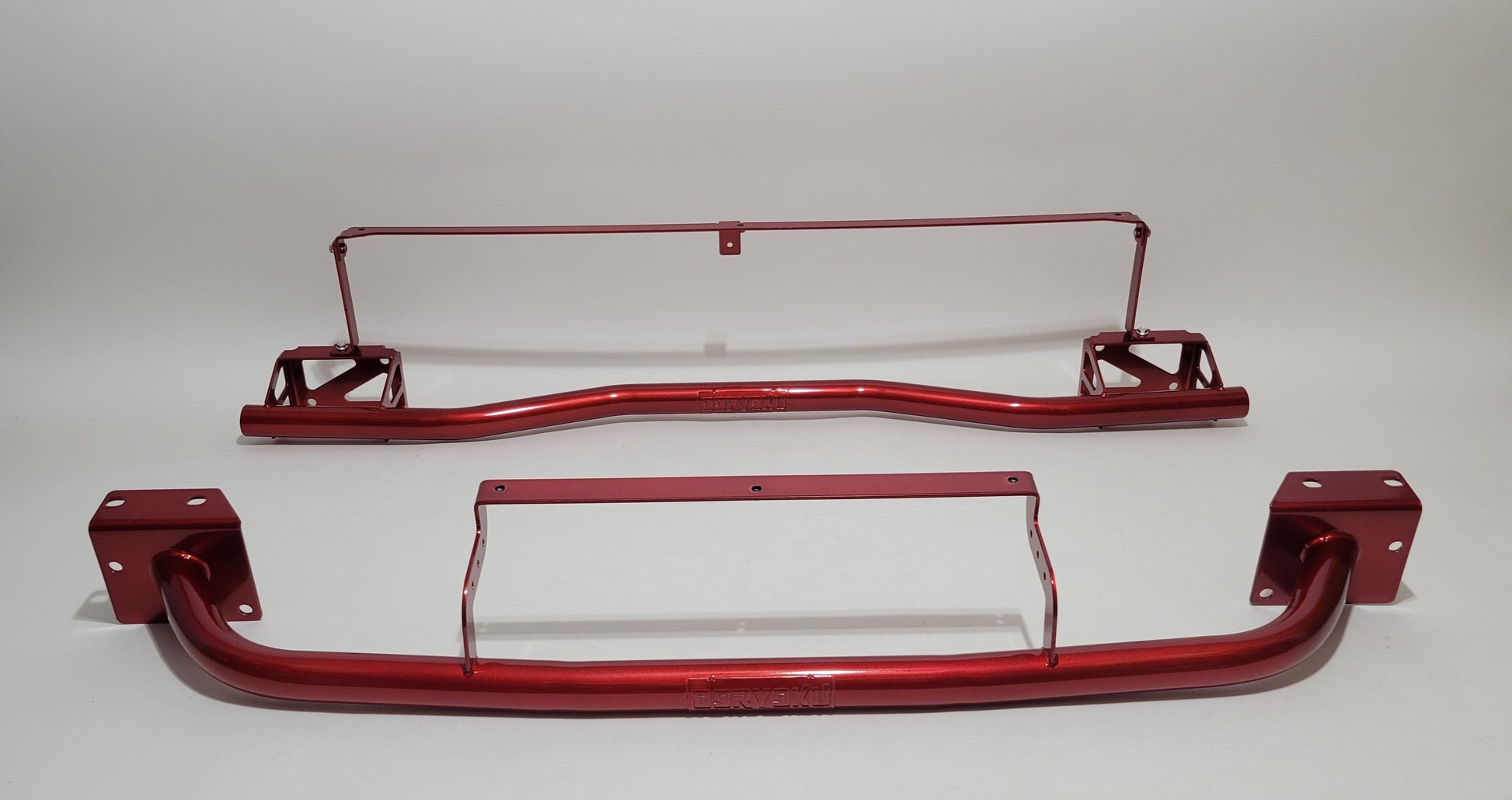

☆ Custom powder coating

I stock over 35 popular colors. Powders are available in wrinkle, matte & gloss. If you select "Powder Coat - Custom", please note a few colors you would like and we will reach out to you to confirm & provide color samples.

Engineering Design Notes

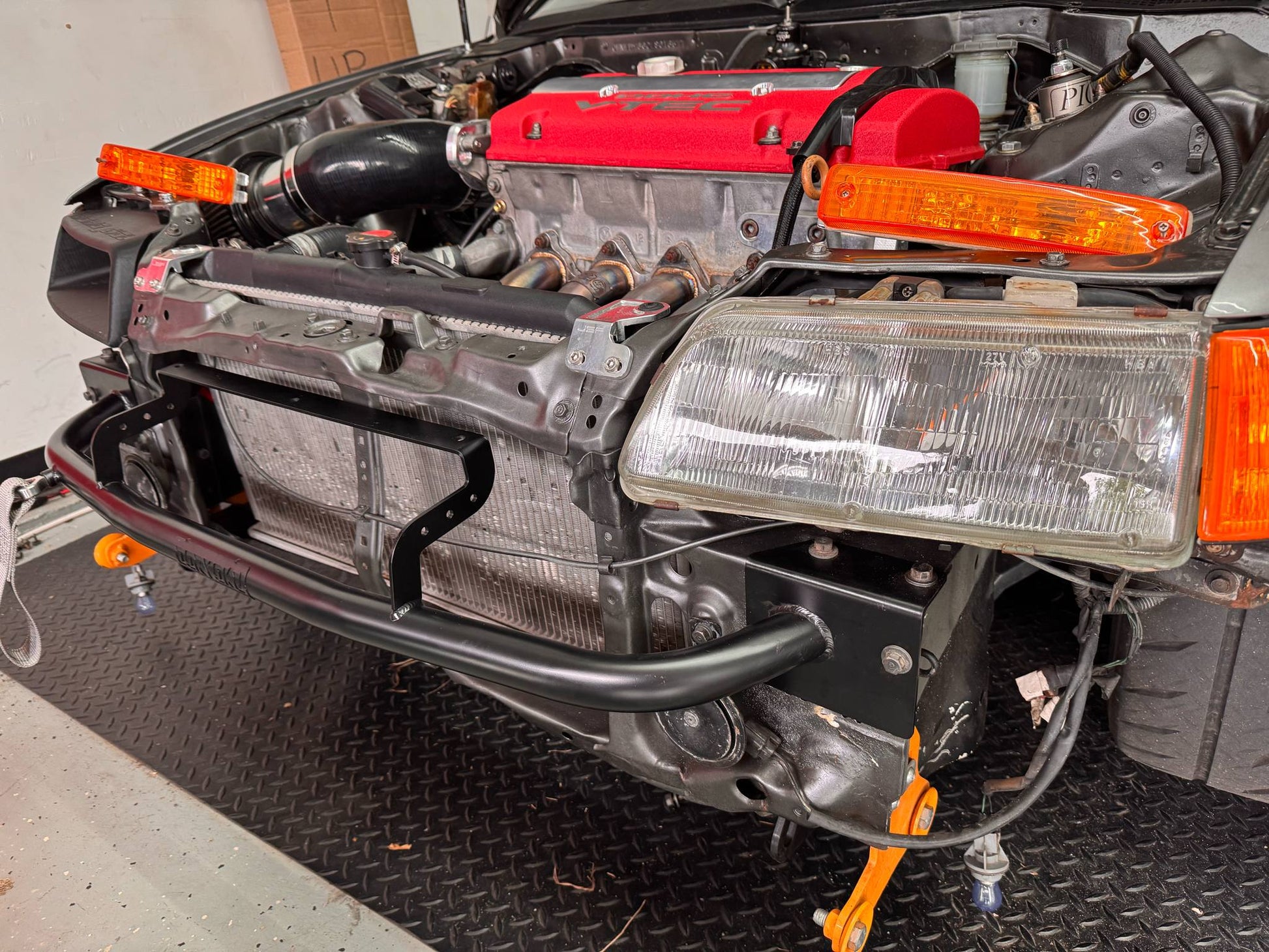

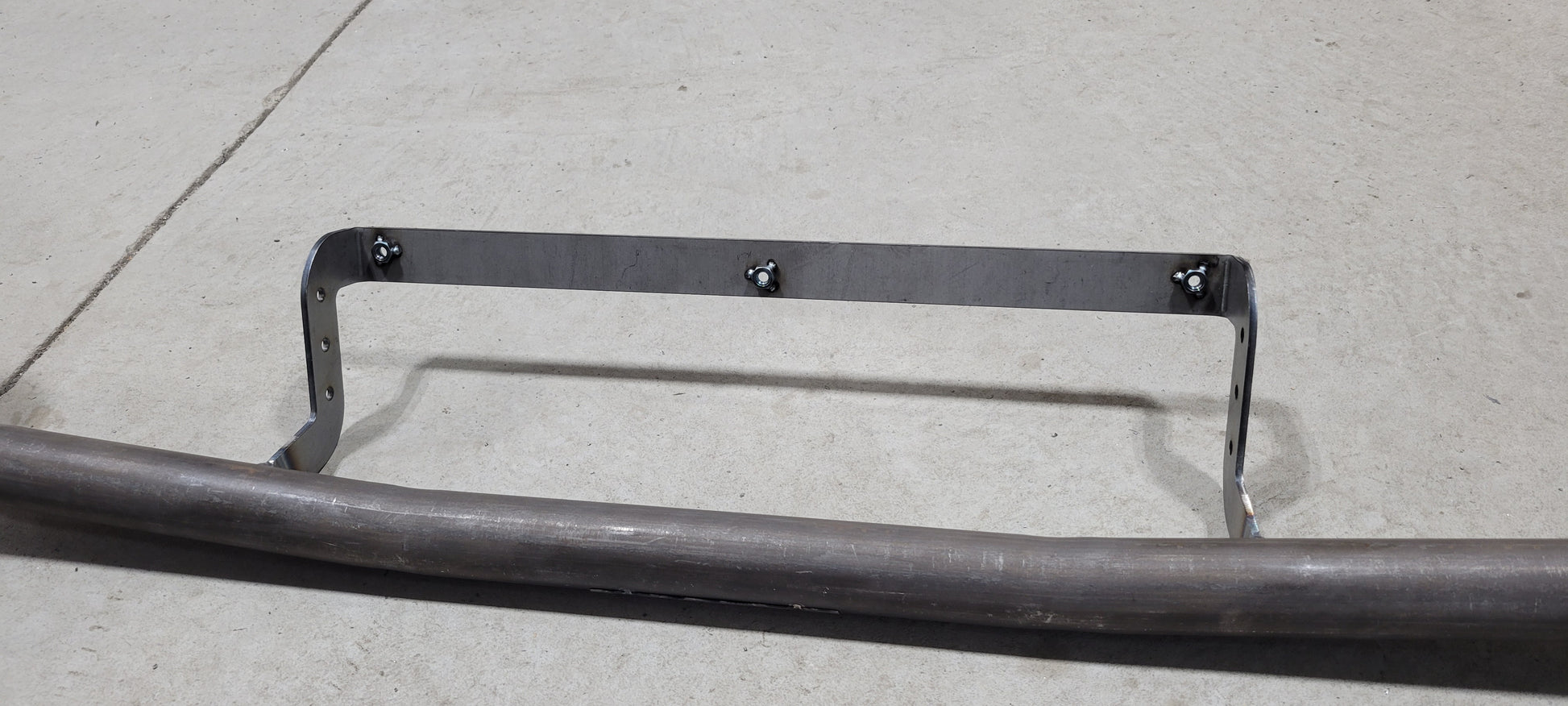

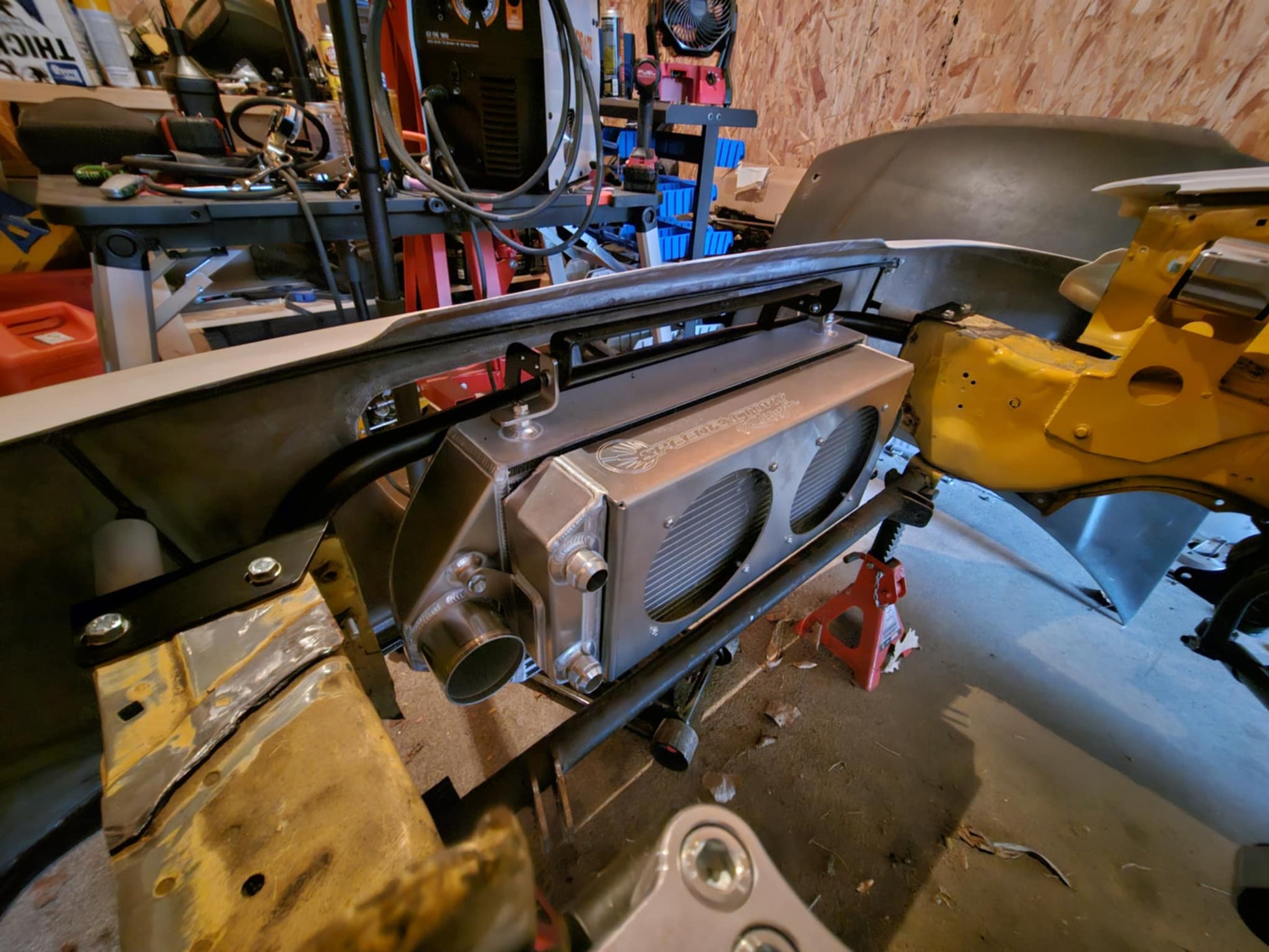

☆ The bumper bracket has 6 M6 holes which makes it easy to attach 90° bracket for mounting intercooler.

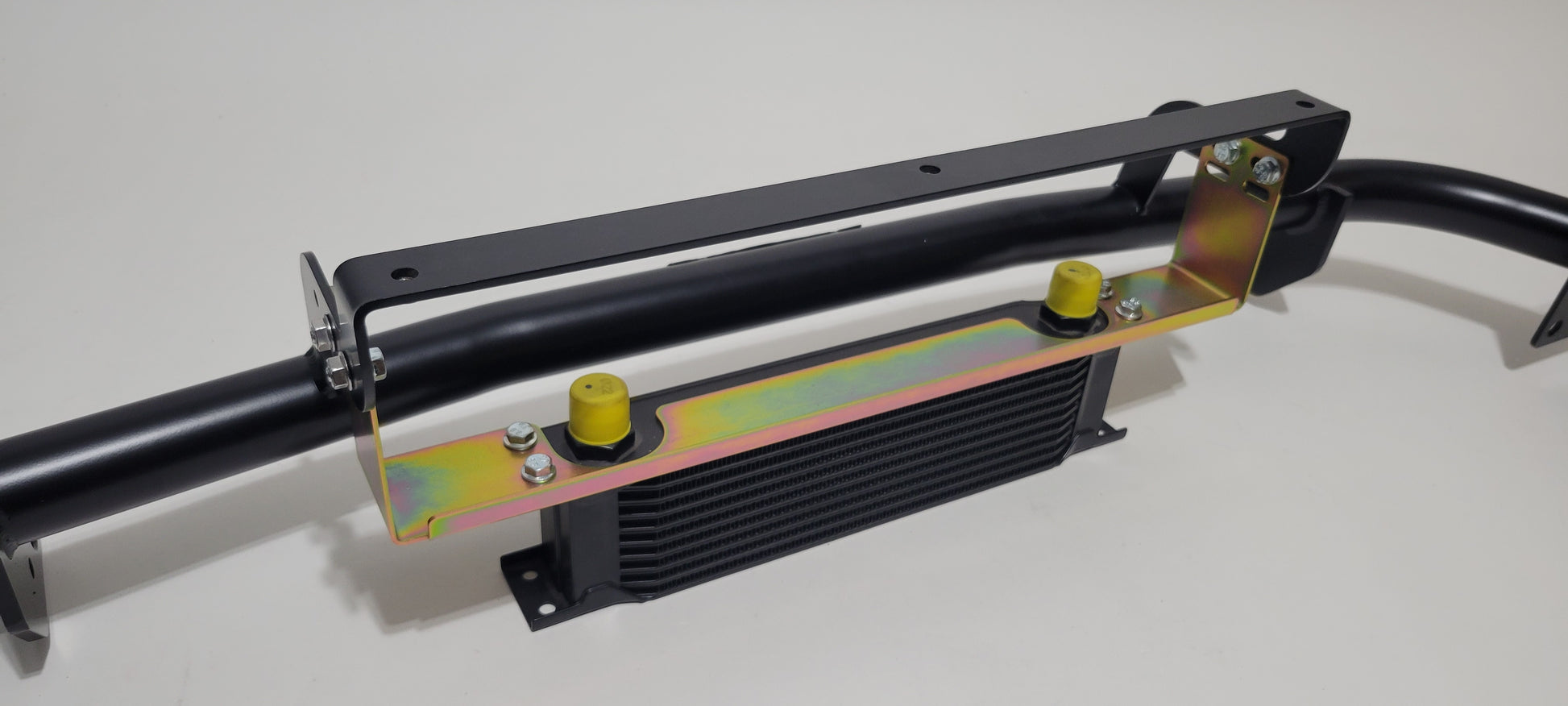

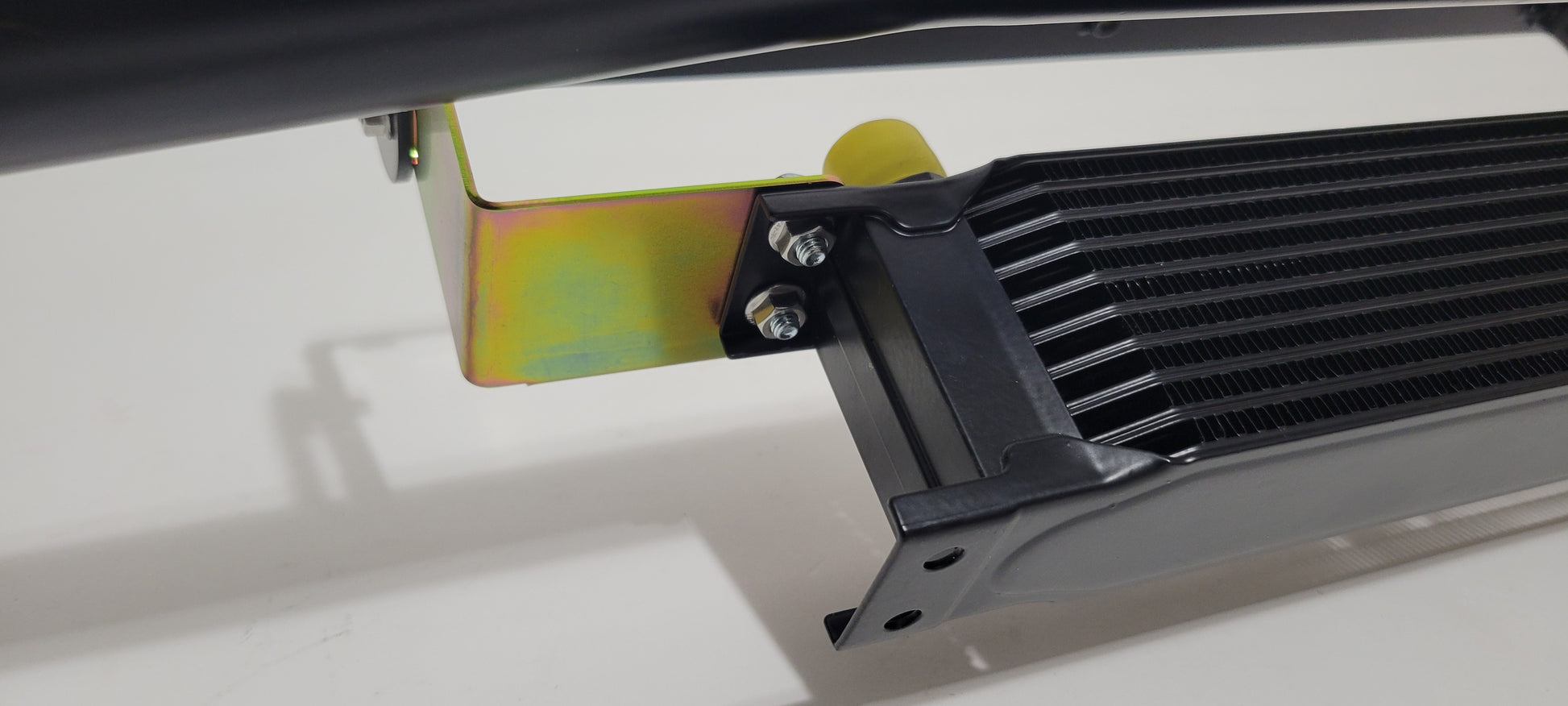

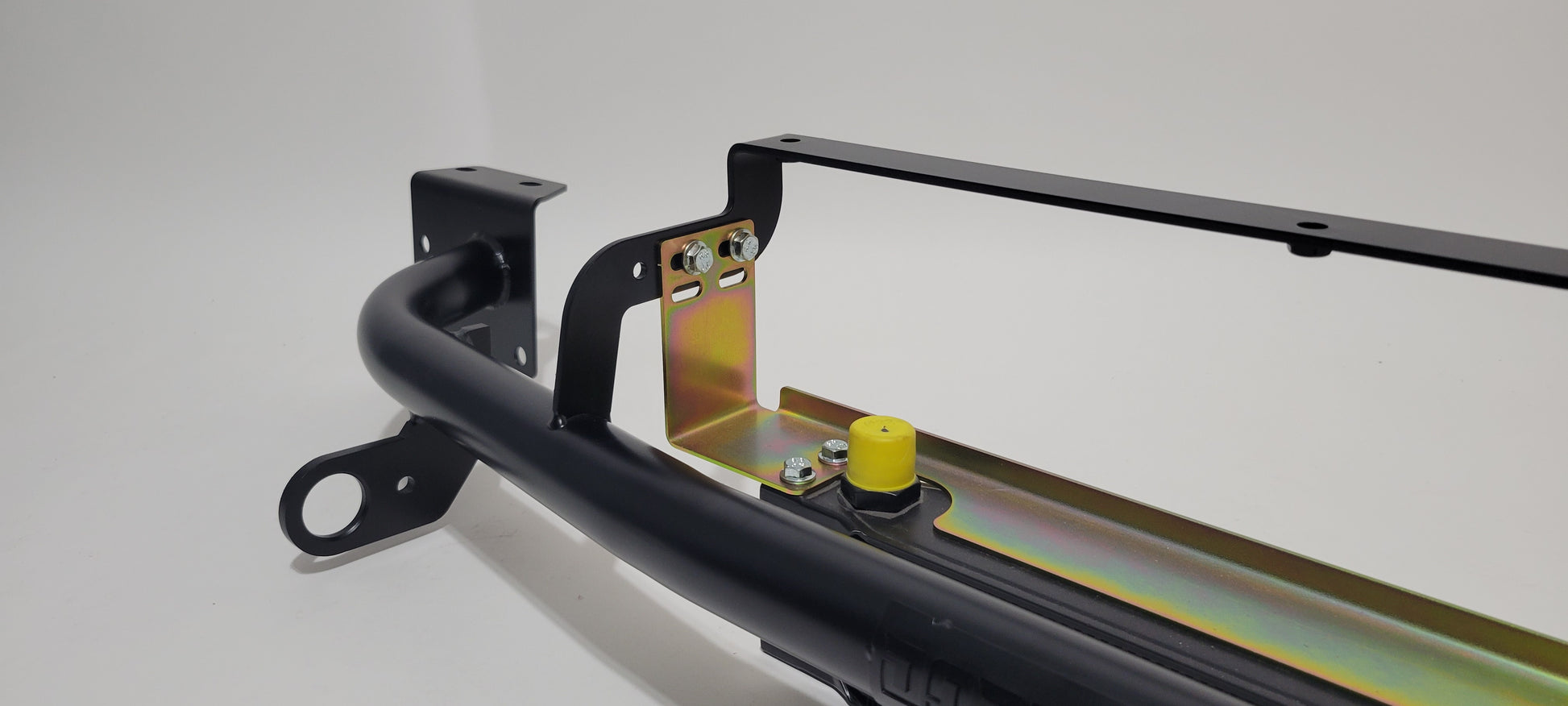

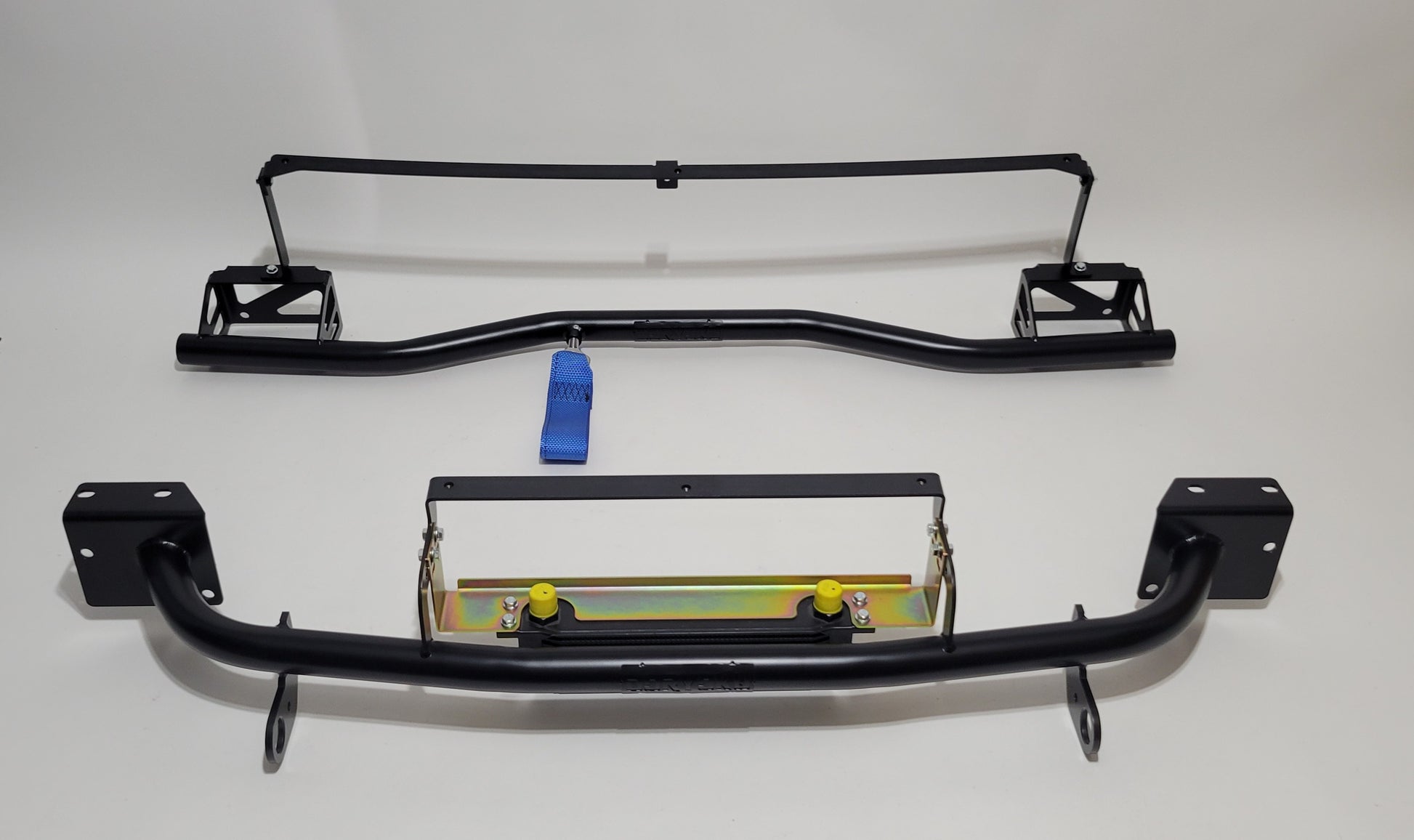

☆ The bumper bracket also accepts Doryoku Oil Cooler Bracket. We wanted efficiency and functional design & the bracket was perfect height placement to hang oil cooler.



☆ Maximum Protection

Roll cage spec tube is used to protect everything behind the bar. We also want the maximum distance from the bar to the vitals of the car (engine). Think of a roll cage door bar where the old school design was a straight bar less than inch away from the driver's body compared to a smarter design door bar that kicks out from the B pillar towards the door-skin then curves back into the A pillar giving the driver much more space and protection from an impact. We use this same approach in our bumper bars. See Eric's video.

Eric Kutil GLTC Civic

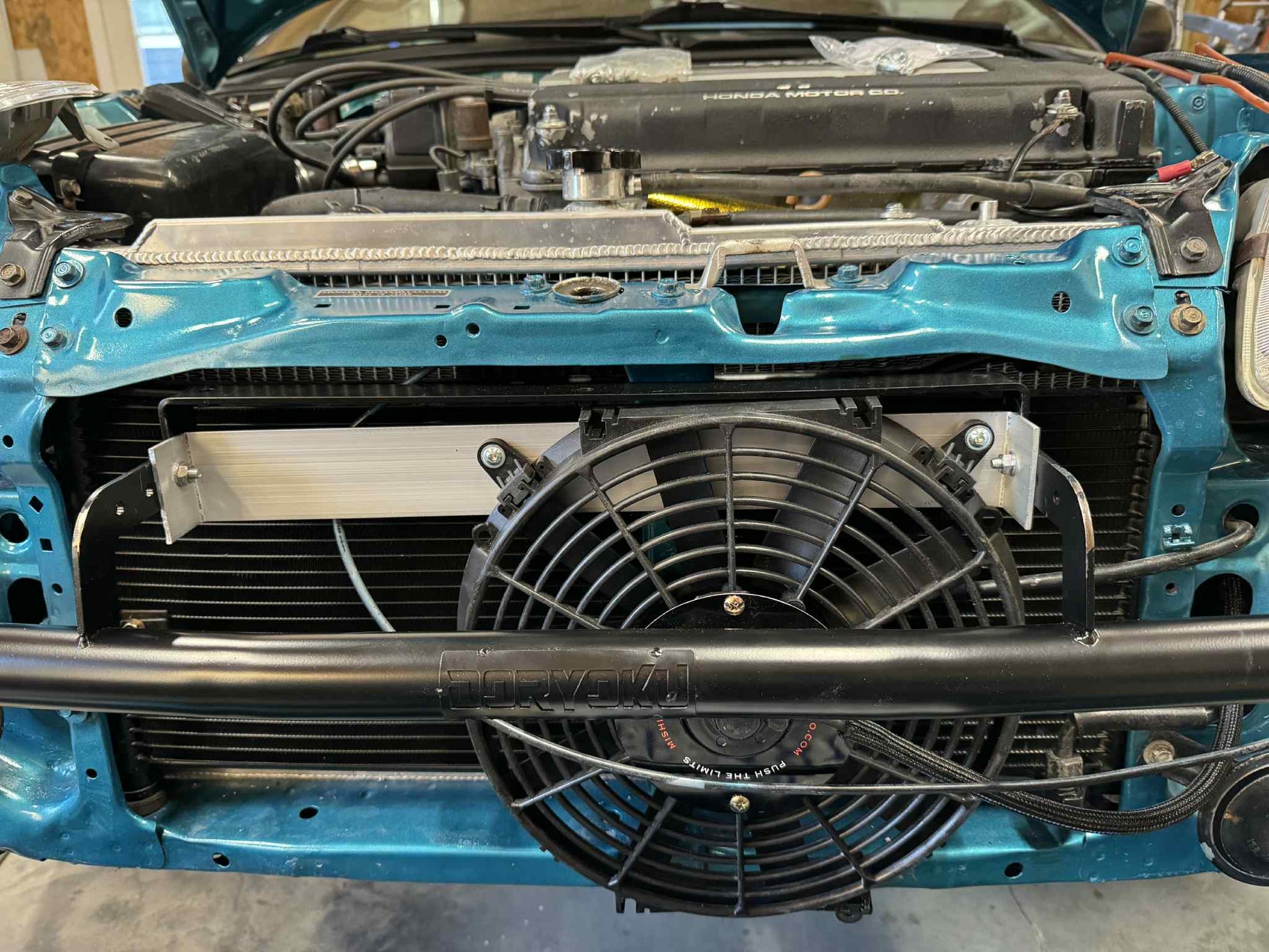

☆ Maximum Cooling

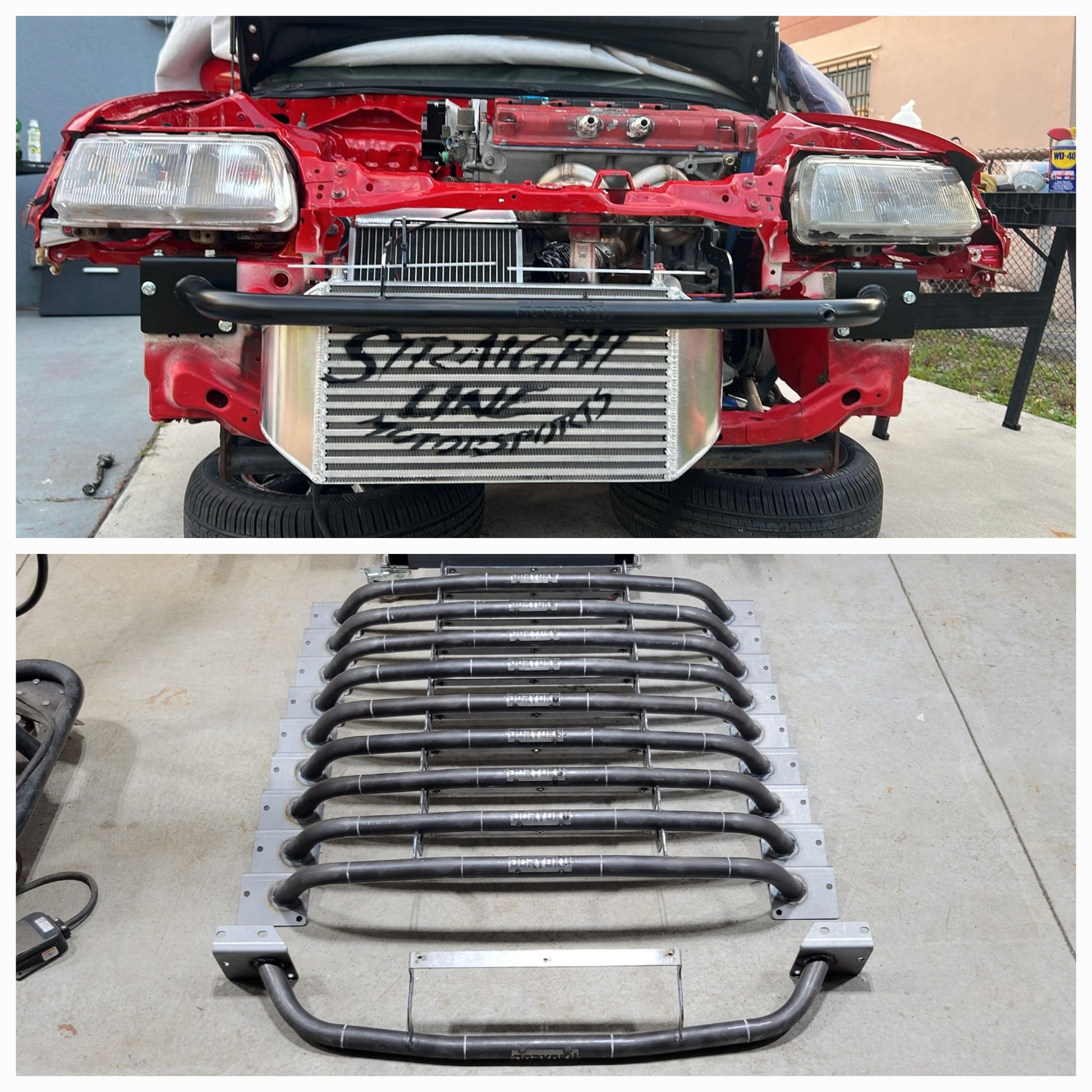

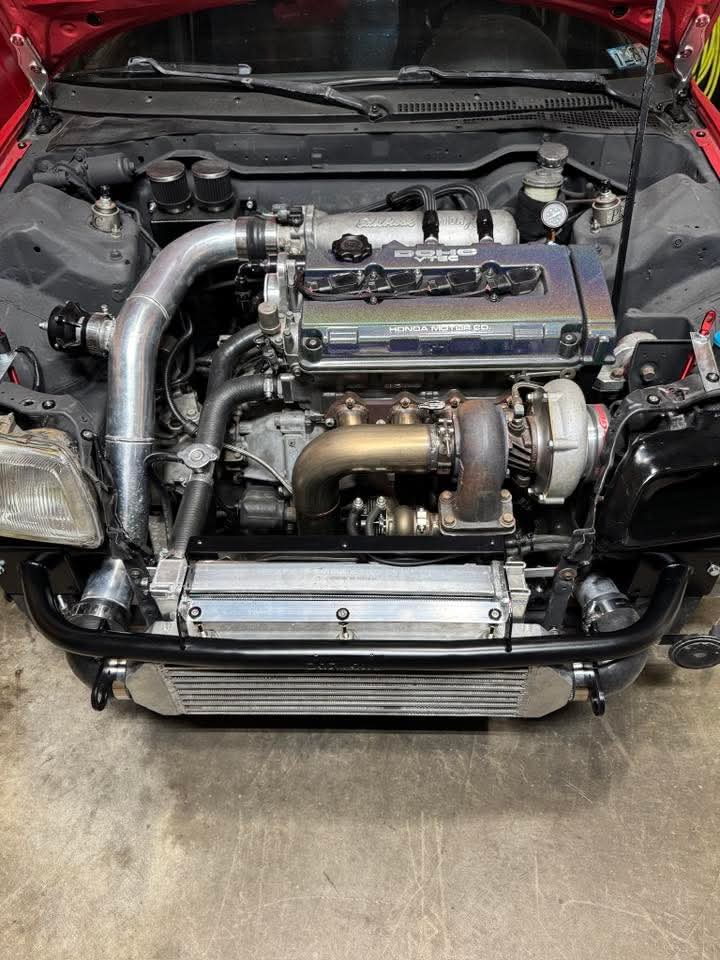

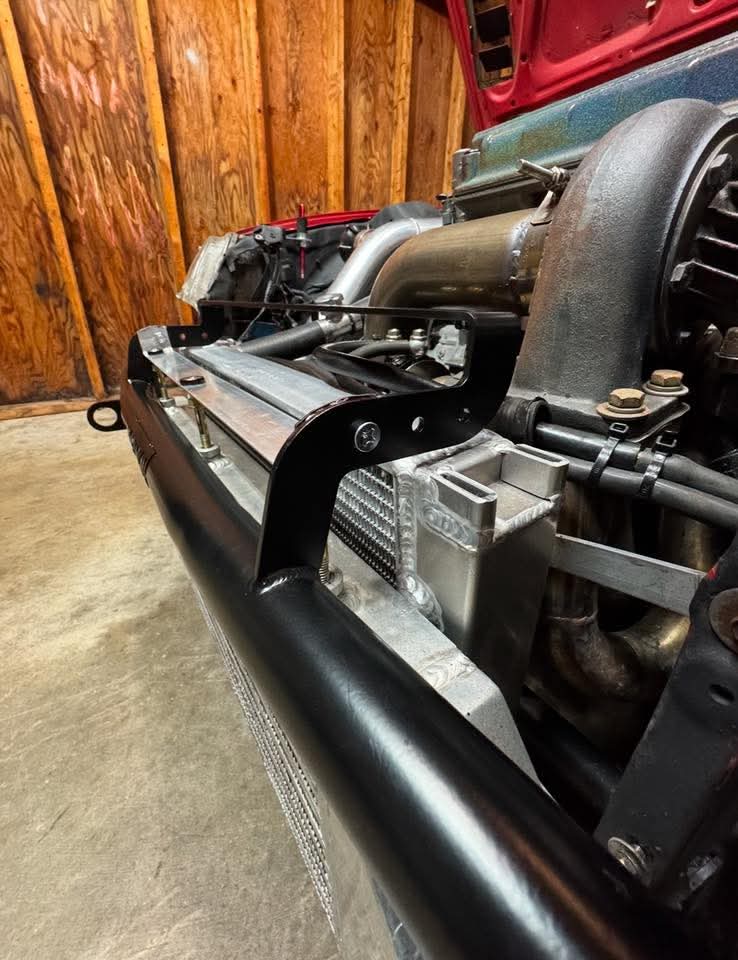

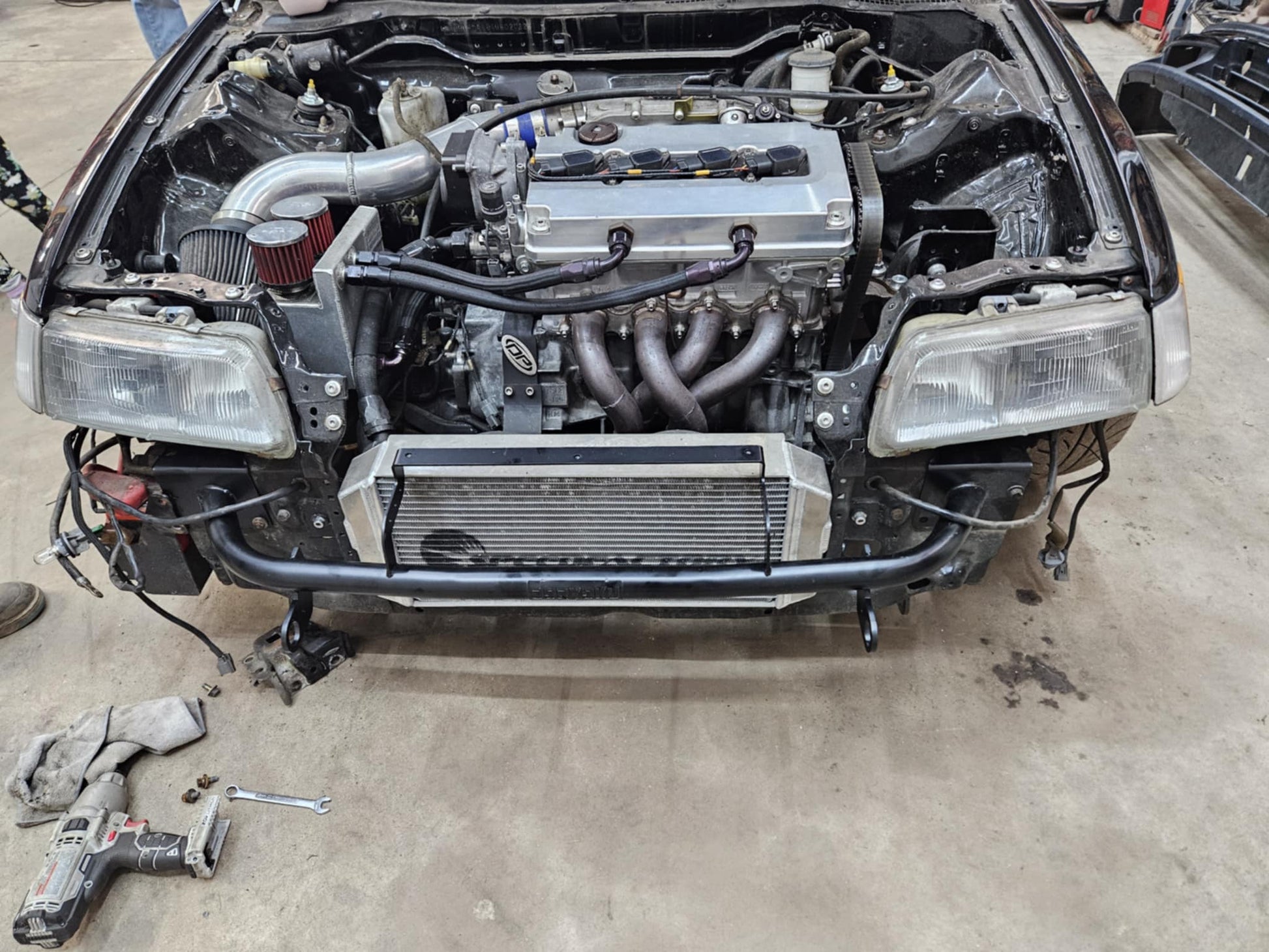

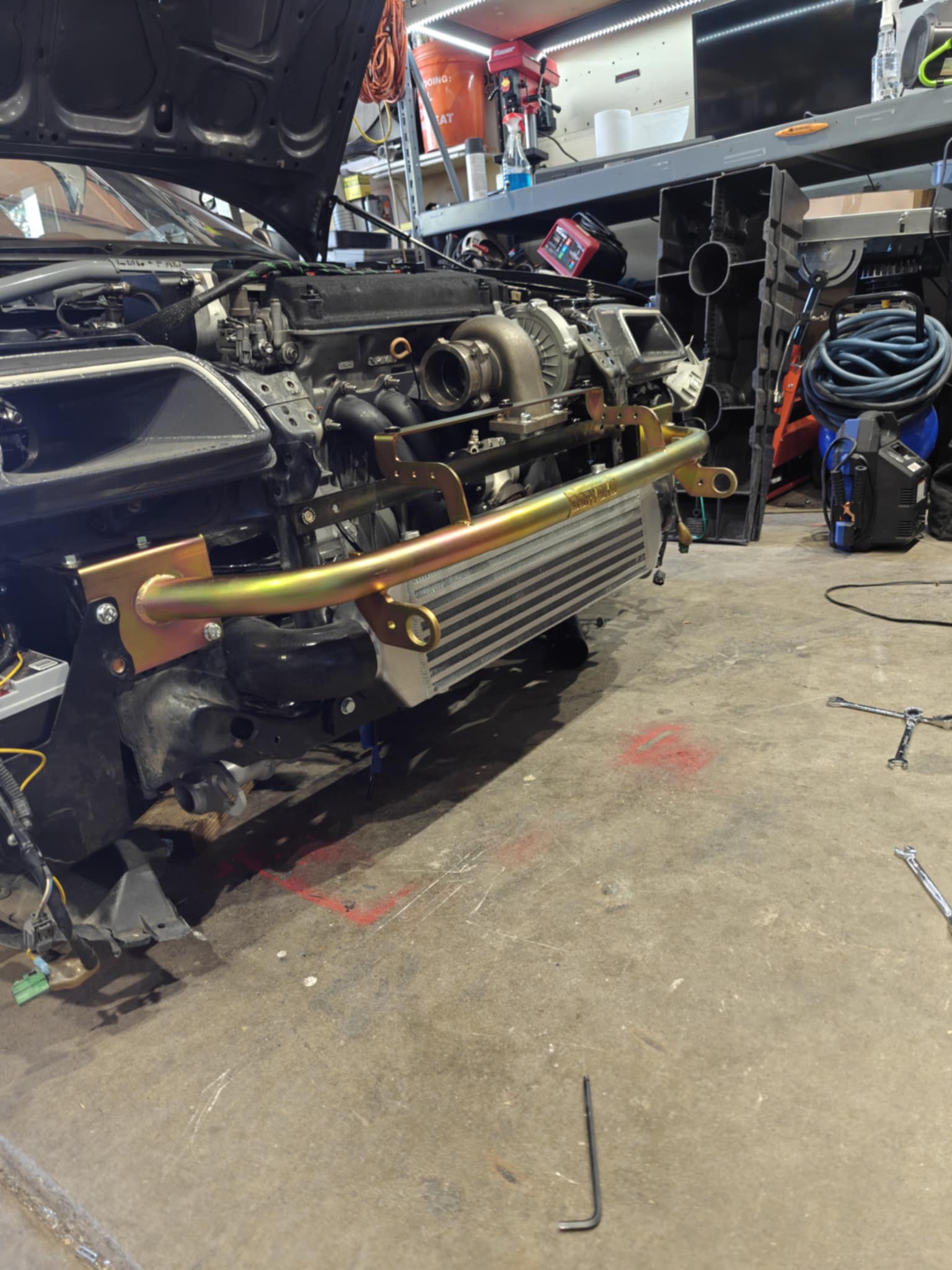

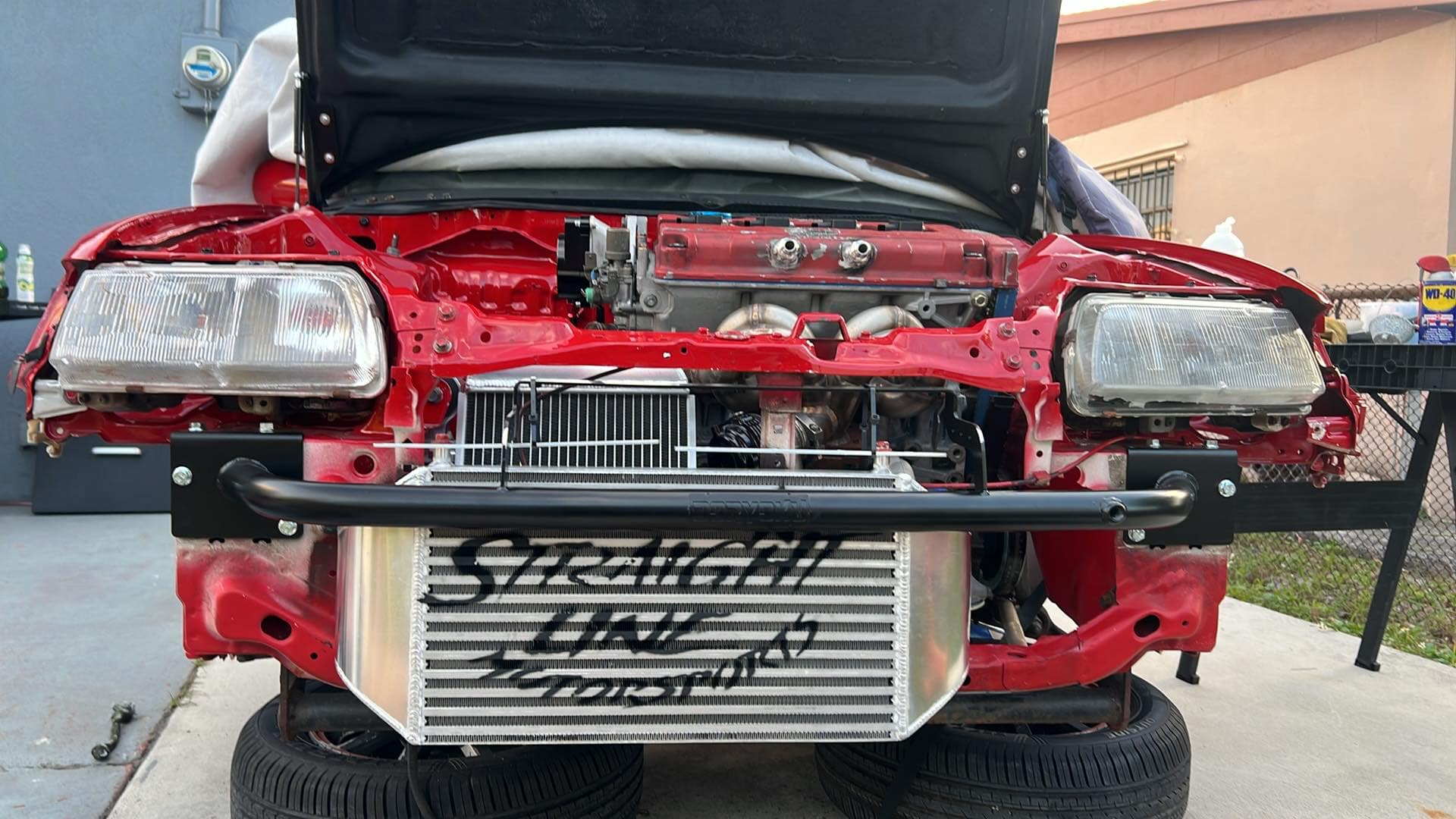

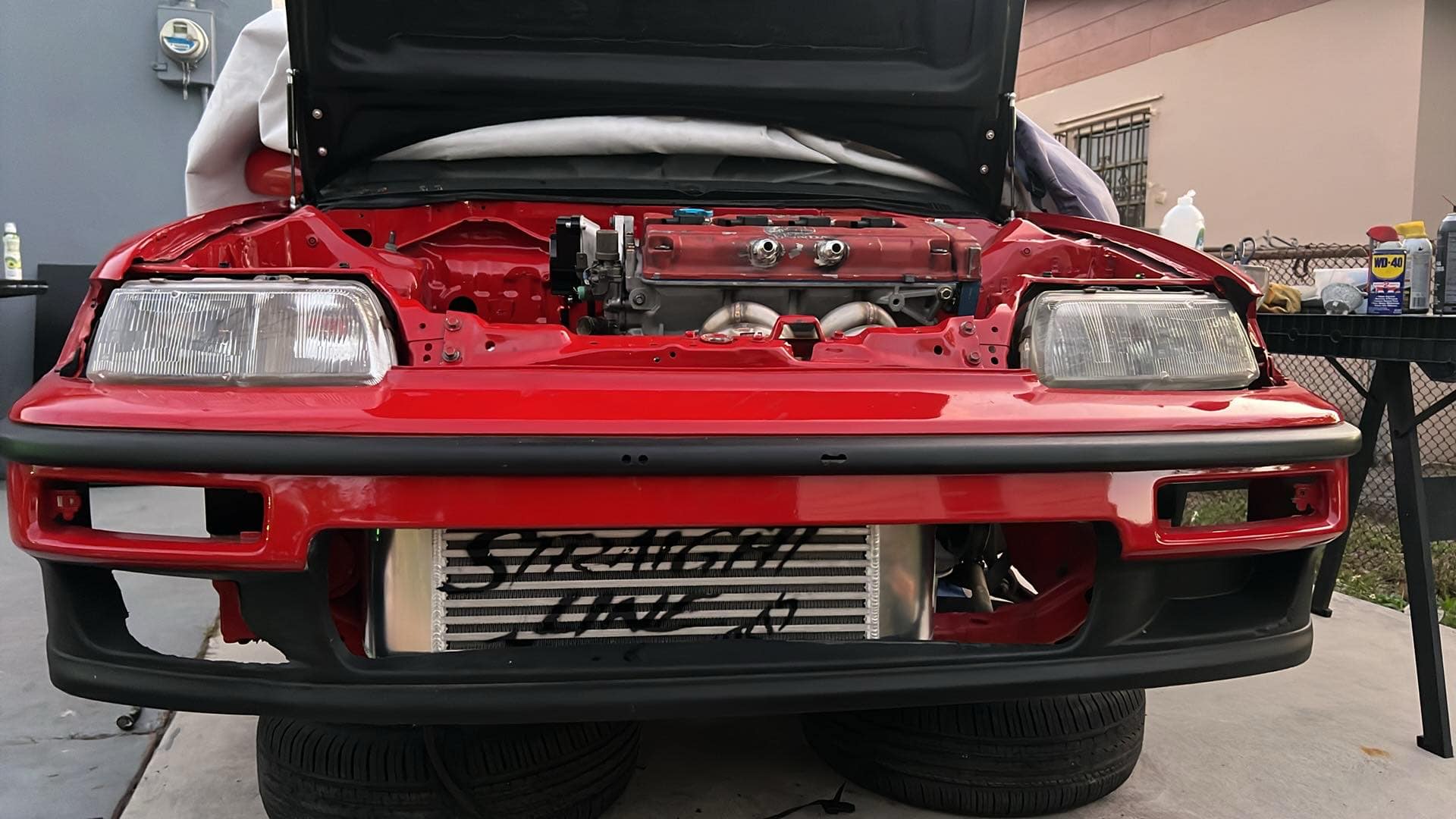

In force induction application, more room behind the bar allows you to run larger FMIC, placing FMIC further away from the radiator core provides more  air flow/speed as it passes through FMIC rather than having air flow slow down due to having FMIC & radiator stacked up behind one another.

☆ Increase Chassis Rigidity

A strong tubular bumper bar adds chassis rigidity to the radiator core support. The weakest link of the front end is the radiator core support. It comprises thin stamp steel with huge opening compared to firewall that is closed off, fender frames that are much thicker steel. See crash test results from our Enduro TSX.

TSX Crash Part 1

TSX Crash Part 2
